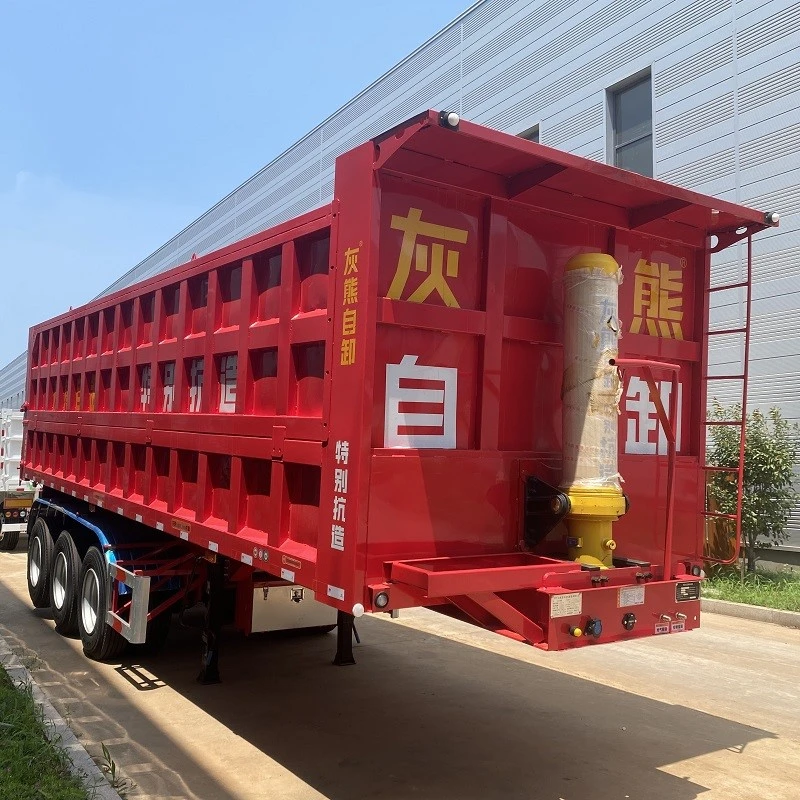

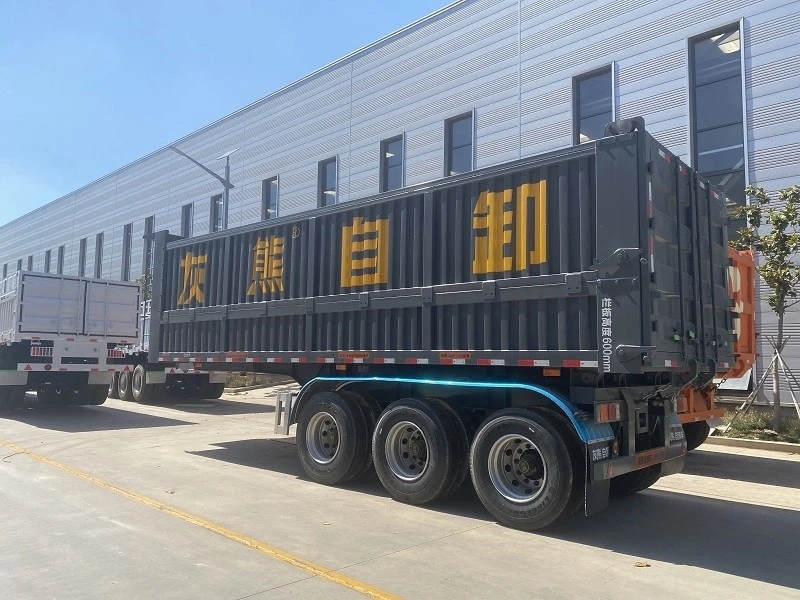

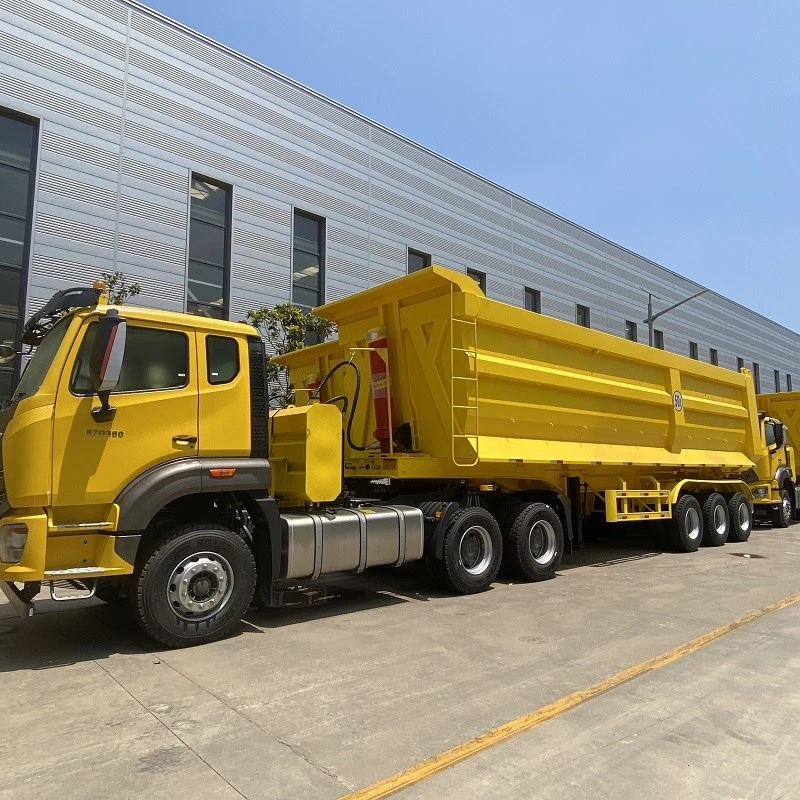

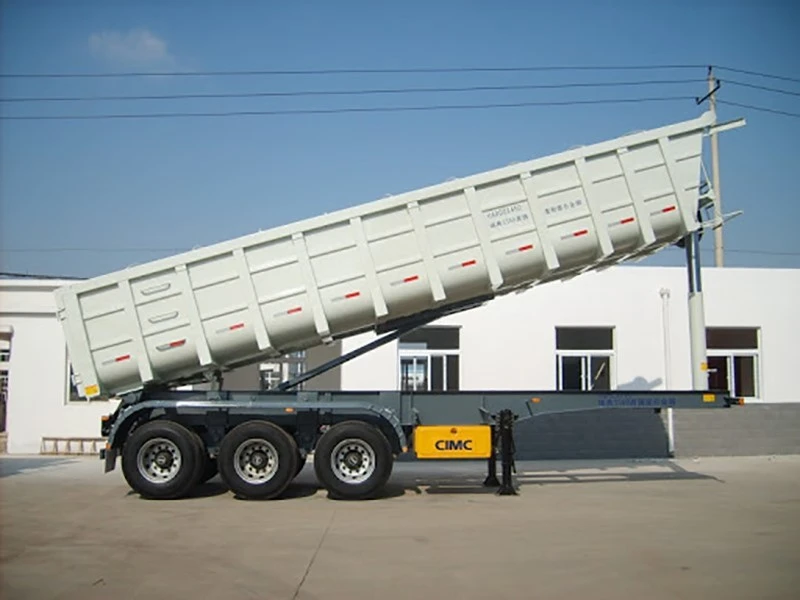

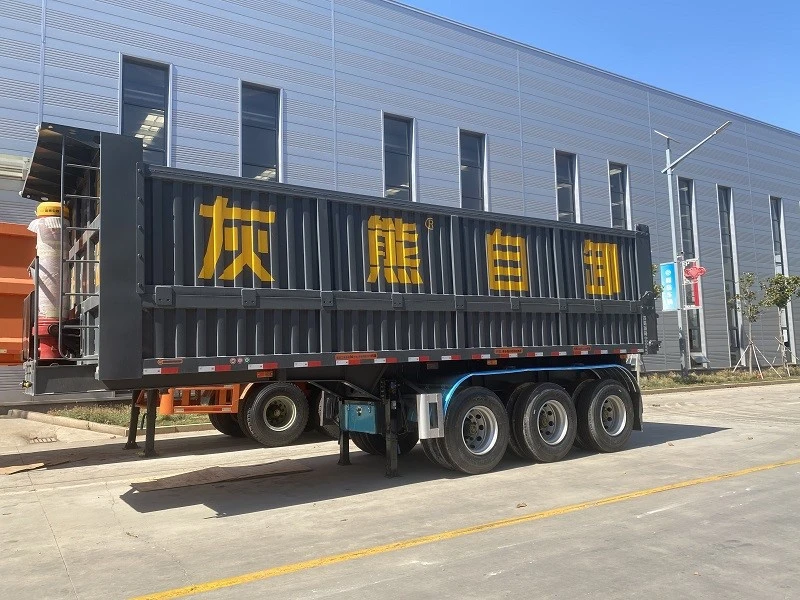

3-Axle 100 Ton Tipper Trailer
This is a heavy duty dump trailer with a maximum load capacity of up to 100 tons. The cargo body can be customized as a rectangular or U-shaped design to suit different types of cargo and ensure smooth loading and unloading. It is equipped with hydraulic cylinders from well-known brands, effectively saving unloading time and labor, shortening transport…
This is a heavy duty dump trailer with a maximum load capacity of up to 100 tons. The cargo body can be customized as a rectangular or U-shaped design to suit different types of cargo and ensure smooth loading and unloading. It is equipped with hydraulic cylinders from well-known brands, effectively saving unloading time and labor, shortening transport cycles, improving productivity, and reducing transportation costs.
Specification
- Material: carbon steel
- Capacity: 30T – 100T
- Number of Axles: 2 axles, 3 axles, 4 axles
- King Pin: 2", 3.5", JOST
- Tire: 12R22.5, 1100R20, 1200R20
|
Type |
Heavy Duty Dump Trailer | |
|
Parameter |
Inner Dimension(mm) |
Length×Width×Height: 11,000×2,300×1,650 |
|
King Pin Setting(mm) |
950 |
|
|
Fifth Wheel Height(mm) |
The height will be adjusted according to the tractor specification |
|
|
Payload (kg) |
70,000 |
|
|
Fabric |
Main Beam(mm) |
Submerged arc welding |
|
Body(mm) |
Floor: 8; Side wall: 6; Wear Resistant Steel NM450 |
|
|
Configuration |
Tire |
Type: 385/65R22.5, Triangle brand, equip 6 pcs per chassis; 315/80R22.5, Triangle brand, equip 13 pcs per chassis, (including 1 spare tyre) |
|
Rim |
Type: 11.75-22.5, equip 6 pcs per chassis; 9.0-22.5, equip 13 pcs per chassis. |
|
|
Axle |
FUWA 13T, 3 sets;Fuwa 16T, 3 sets, without ABS |
|
|
Suspension |
The front three axles are air suspension with lifting. The rear 3-axle are mechanical suspension with 10 pieces leaf springs |
|
|
Hydraulic System |
HYVA FCA214-5 hydraulic system |
|
|
Landing Gear |
30T |
|
|
Kingpin |
JOST 3.5", Exchangeable |
|
|
Brake System |
Rear 3-axle Dual air brake system, 30/30 type, WABCO brake valve. |
|
|
ABS |
Customizable | |
|
Electrical System |
24V, LED lamp |
|
|
Paint |
Primer + top coat, polyurethane paint |
|
|
Spare Tire Carrier |
equip 2 set per chassis |
|
|
Tool Box |
1 set |
|
|
Tarp |
1 set |
|
|
Color |
optional |
|

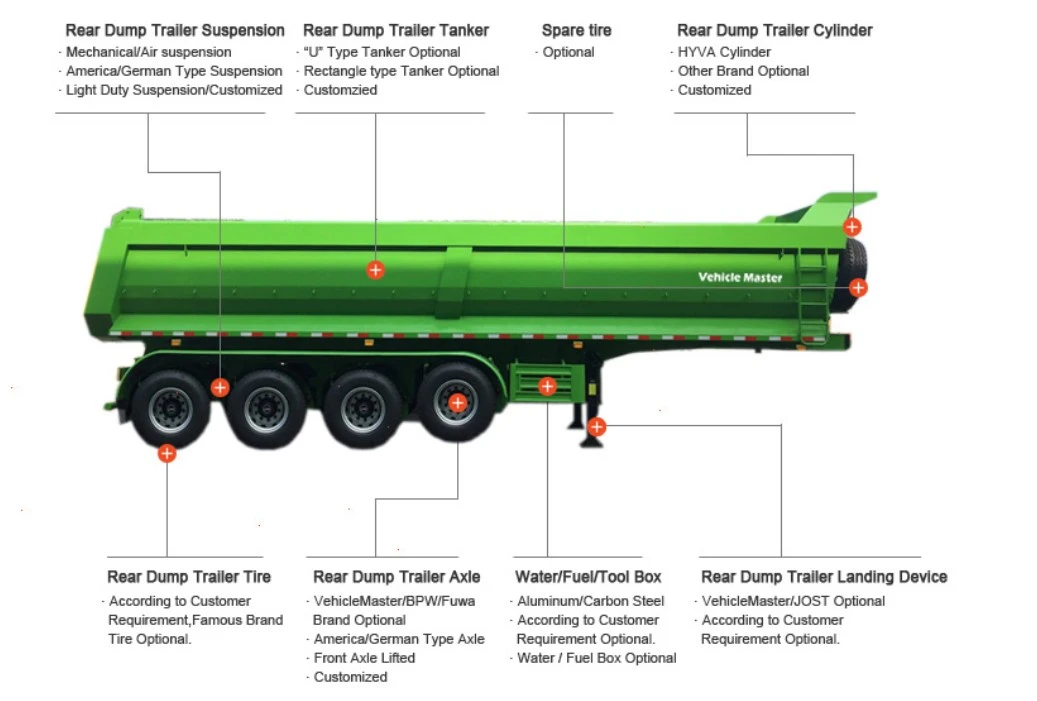

Advantages of Our Dump Trailers
- Free customization of length and load capacity based on your needs, with factory-direct pricing.
- Made of high-quality steel with excellent durability, suitable for long-term ore abrasion.
- Equipped with hydraulic cylinders from well-known brands, ensuring stable quality and long service life.
- One-year warranty and lifetime spare parts supply.
- Multiple payment options supported to ensure fast and reliable delivery.
Specification
| Type | Heavy Duty Dump Trailer |
| King Pin Setting(mm) | 950 |
| Fifth Wheel Height(mm) | The height will be adjusted according to the tractor specification |
| Payload (kg) | 70,000 |
| Fabric | Main Beam(mm) Submerged arc welding |
| Body(mm) | Floor: 8; Side wall: 6; Wear Resistant Steel NM450 |
| Configuration | Tire Type: 385/65R22.5, Triangle brand, equip 6 pcs per chassis; 315/80R22.5, Triangle brand, equip 13 pcs per chassis, (including 1 spare tyre) |
| Rim | Type: 11.75-22.5, equip 6 pcs per chassis; 9.0-22.5, equip 13 pcs per chassis. |
| Axle | FUWA 13T, 3 sets;Fuwa 16T, 3 sets, without ABS |
| Suspension | The front three axles are air suspension with lifting. The rear 3-axle are mechanical suspension with 10 pieces leaf springs |
| Hydraulic System | HYVA FCA214-5 hydraulic system |
| Landing Gear | 30T |
| Kingpin | JOST 3.5", Exchangeable |
| Brake System | Rear 3-axle Dual air brake system, 30/30 type, WABCO brake valve. |
| ABS | Customizable |
| Electrical System | 24V, LED lamp |
| Paint | Primer + top coat, polyurethane paint |
| Spare Tire Carrier | equip 2 set per chassis |
| Tool Box | 1 set |
| Tarp | 1 set |
| Color | optional |
| Material | carbon steel |
| Capacity | 30T - 100T |
| Number of Axles | 2 axles, 3 axles, 4 axles |
| King Pin | 2", 3.5", JOST |
| Tire | 12R22.5, 1100R20, 1200R20 |
| LengthxWidthxHeight | 11,000x2,300x1,650 |
| Floor | 8; Side wall: 6; Wear Resistant Steel NM450 |
| Type | 385/65R22.5, Triangle brand, equip 6 pcs per chassis; 315/80R22.5, Triangle brand, equip 13 pcs per chassis, (including 1 spare tyre) |
| Type | 11.75-22.5, equip 6 pcs per chassis; 9.0-22.5, equip 13 pcs per chassis. |
Request a Quotation
Send us your destination port and any special requirements. Our team reviews the configuration and prepares a quotation.
