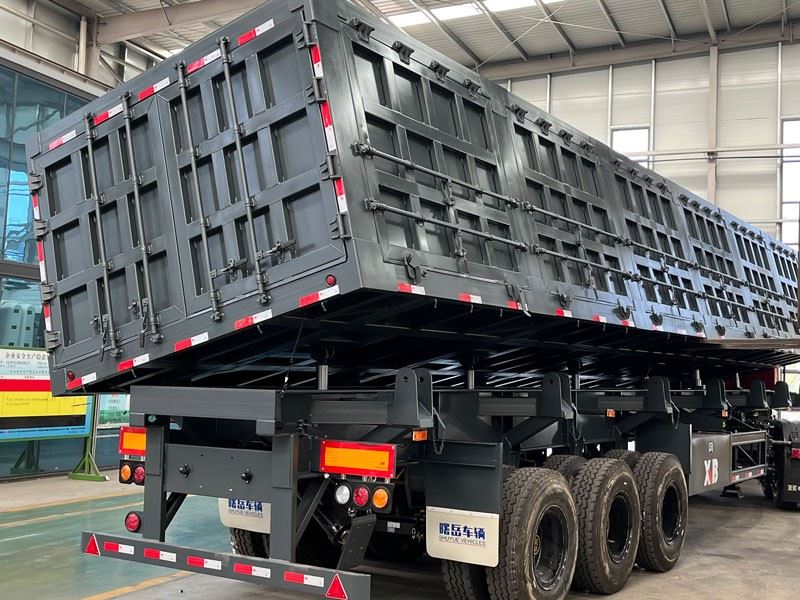

3 Axle 60 Ton Side Tipper Semi Trailer

3 Axle 60 Ton Side Tipper Semi Trailer

This 3 axle 60 ton side tipper semi trailer is manufactured by Haoyue and sold at factory price. This side tipper semi trailer is suitable for transporting bulk cargo such as ore, sand, gravel, and grain. It is especially ideal for unloading in enclosed spaces with height restrictions, offering flexible and efficient operation.

As a professional semi trailer factory, this 3 axle 60 ton side tipper semi trailer can be customized according to customer requirements. We offer load capacity customization from 30 to 100 tons. In addition, the tipping angle, cargo box shape, and cargo box height can all be tailored to precisely match different transportation scenarios and operational needs.

Application Scenarios

• Grain transportation: Transport wheat, corn, and other grains, suitable for unloading in height-restricted areas such as granaries;
• Ore transportation: Transport iron ore, copper ore, and other minerals; the wear-resistant cargo box can adapt to harsh environments
• Sand and gravel transportation: Transport construction sand and gravel with efficient and labor-saving side unloading
• Construction waste removal: Load construction debris and unload quickly to accelerate project progress
• Bulk coal transportation: Transport bulk coal to power plants, suitable for plant areas with height limitations

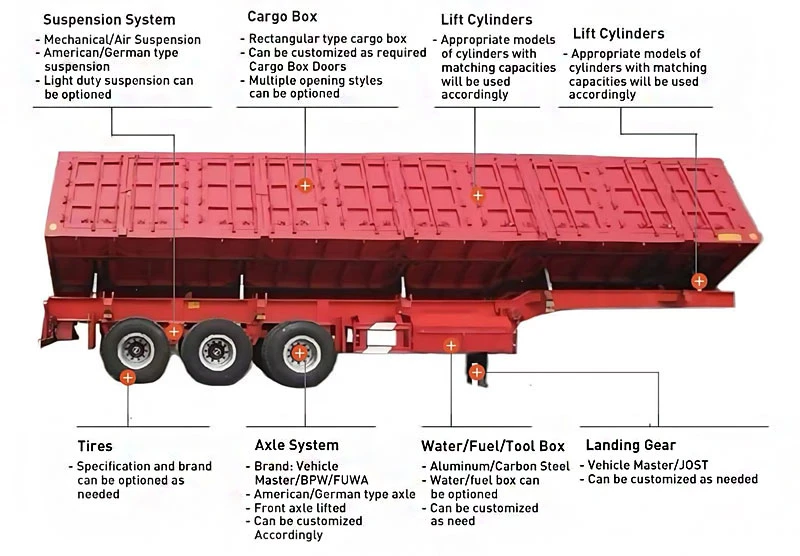

Specifications

• Rated load: 60 tons (customizable from 30–100 tons)
• Axle: 3 axles (2/3/4/5 axles available based on load)
• Axle configuration: 13/16 ton, FUWA/BPW
• Main beam material: Q345/T700 high-strength steel
• Cargo box shape: Rectangular or U-shaped
• Standard cargo box size: 11000mm*2500mm*2800mm
• Tipping angle: ≥45° (customizable up to 50°)
• Hydraulic pump brand: HYVA high-pressure hydraulic pump
• Braking system: Dual-circuit air brake + ABS (WABCO valve)
• Suspension system: Reinforced mechanical suspension (air suspension optional)

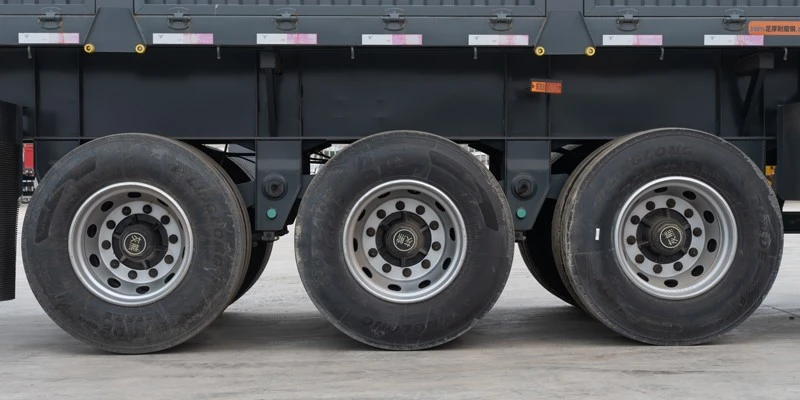

• Tire model: 11.00R20/12R22.5
• Number of tires: 12 units (2 spare tires provided)
• King pin: JOST, #50 (2") / #90 (3.5")
• Landing gear: 28T two-speed, JOST
• Price Range and Determining Factors

Price Range
The price of this side tipper semi trailer ranges from USD 10,000 to USD 30,000. The price is influenced by multiple factors: higher load capacity requires more steel and a stronger structure, increasing cost; thicker steel plates for the cargo box to enhance wear resistance will also raise the price; manufacturing process requirements and imported components, as well as higher-end customization, will all affect the final quotation.

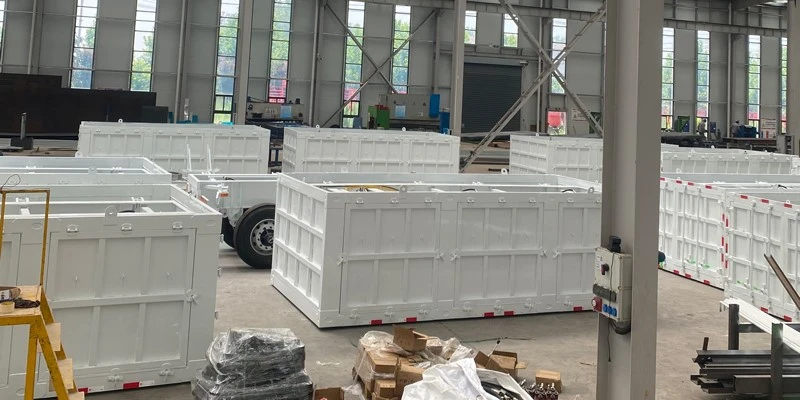

Core Manufacturing Processes

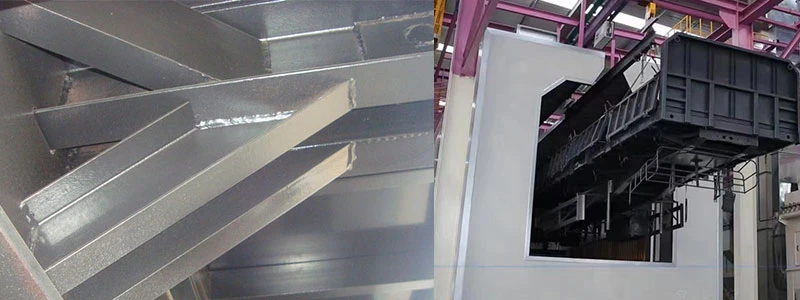

• Welding: The main beam and cargo box structures are welded using automated robotic welding technology. High-precision positioning ensures uniform weld seams, stable welding quality, and sufficient penetration depth. Other detailed parts are reinforced with manual welding by experienced welders. This process significantly improves the trailer's durability and sealing performance, prevents material leakage during transportation, and extends service life under long-term heavy loads.
• Painting: After surface pre-treatment, polyurethane primer and topcoat are applied. The coating is uniform with strong adhesion, offering excellent scratch resistance and anti-corrosion performance. It can withstand harsh environments such as rain, dust, and high temperatures, keeping the vehicle in good condition over time.

Key Features

• Material: The main beam is made of high-strength steel, ensuring stable load-bearing under heavy loads. The cargo box uses high-quality wear-resistant steel to withstand friction and impact from materials like ore and gravel.
• Cargo box shape: The standard rectangular design is simple and suitable for various bulk cargo transportation. An optional U-shaped design with smooth inner walls reduces material residue and improves unloading efficiency.

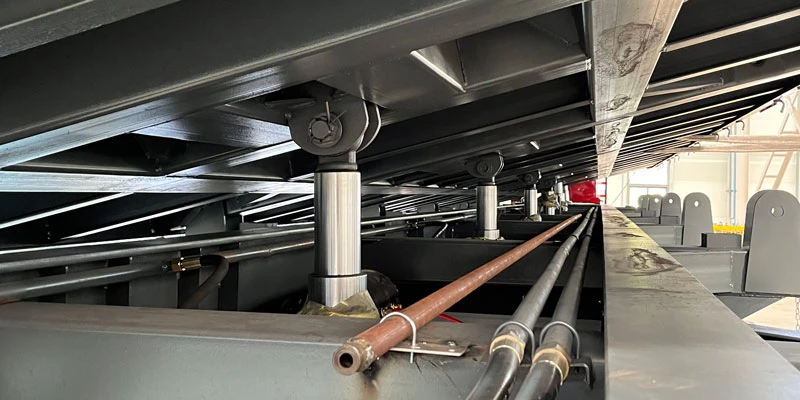

• Side tipping hydraulic pump: Equipped with a high-quality high-pressure hydraulic pump from a well-known brand, ensuring stable operation and fast tipping speed.

• Braking system: Uses WABCO dual-circuit air brake system with quick response and stable performance. ABS is available to ensure safety under complex road conditions.

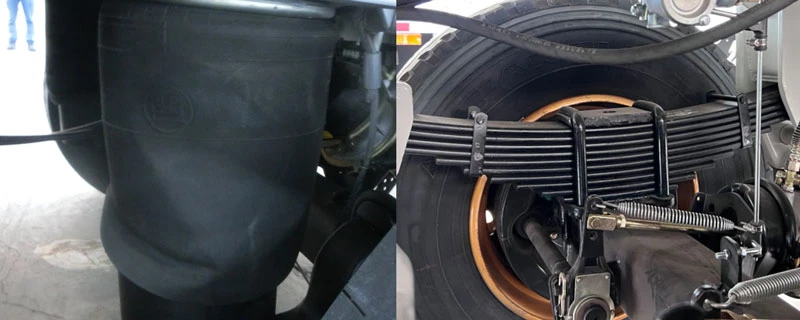

• Suspension system: Equipped with reinforced mechanical suspension, which is economical, durable, and low maintenance. Air suspension is optional for better shock absorption.
• Color and LOGO: We support custom colors based on customer preferences and provide free printing of customer company logos to enhance brand visibility and meet personalized needs.

Our Advantages

• Factory price: As a semi trailer manufacturer, purchasing directly from us eliminates middlemen and reduces procurement costs, ensuring high cost performance.
• Free customization: We provide free customization solutions for load capacity, cargo box shape, tipping angle, and more to match actual application scenarios.
• Warranty: One-year free warranty from the date of delivery.
• Lifetime spare parts supply: We provide lifetime original spare parts supply to ensure fast delivery and minimize vehicle downtime.

Shipping Details
After order confirmation, standard models will be completed with production and quality inspection within 15–20 working days. We support multiple trade terms such as FOB and CIF, and cooperate with well-known international logistics companies to ensure safe and timely delivery. The trailer will be properly packaged to prevent damage during transportation, and real-time logistics tracking information will be provided until safe arrival.

Contact Us
We are a professional semi trailer manufacturer specializing in the production and sale of 3 axle 60 ton side tipper semi trailers. We offer factory direct pricing with no middleman markup and provide free customization services to meet your specific needs. If you are interested in purchasing, want to learn more about configurations and pricing, or have other related inquiries, please contact us via WhatsApp. Our professional team will provide you with comprehensive one-stop service.
