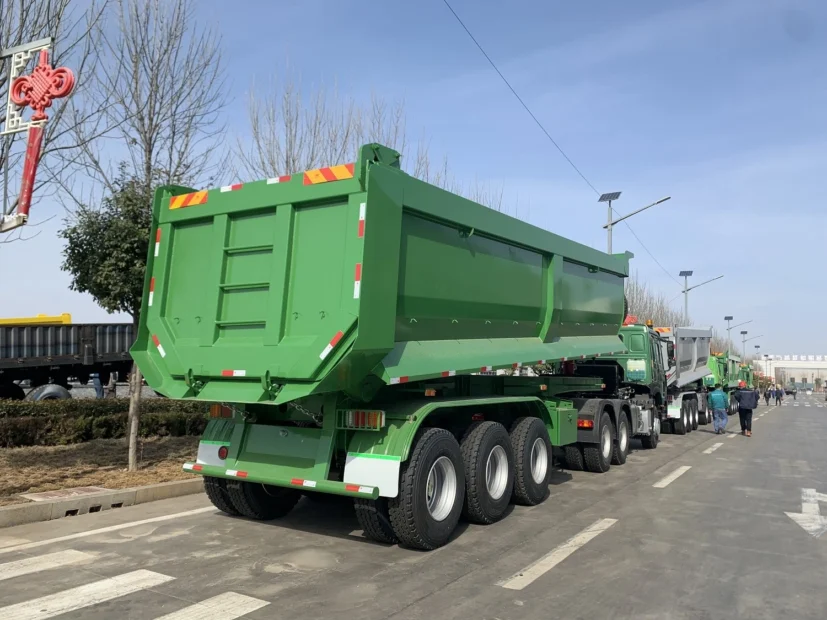

30 Ton Rear Tipper Trailer for Construction
We are a professional rear dump trailer manufacturer. Our rear dump trailers are built with high-quality steel and advanced welding technology, making them suitable for transporting bulk cargo, coal, ore, and construction materials.

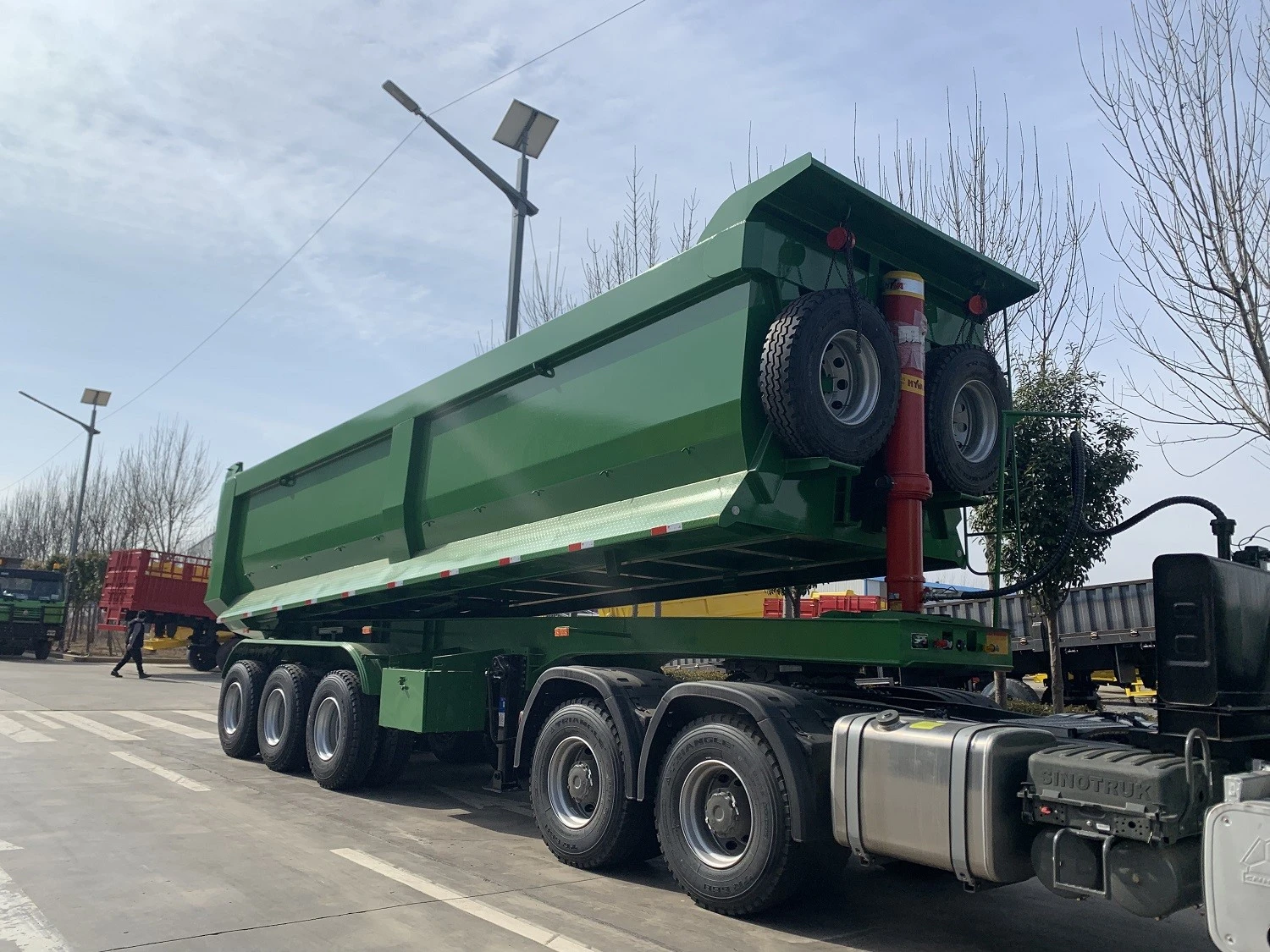

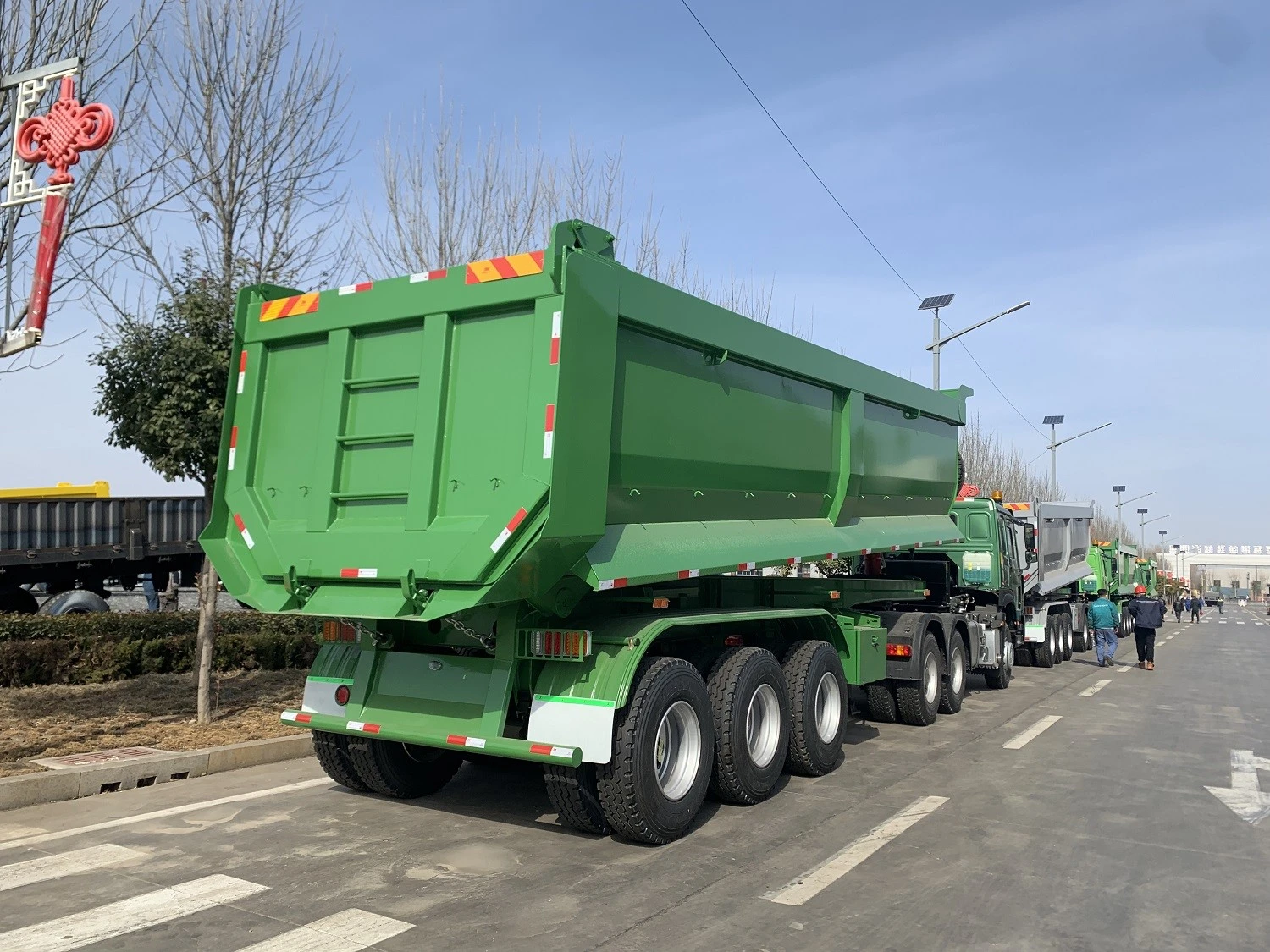

Rear Dump Trailer
We are a professional rear dump trailer manufacturer. Our rear dump trailers are built with high-quality steel and advanced welding technology, making them suitable for transporting bulk cargo, coal, ore, and construction materials.
Our rear dump trailers feature a professional design with no dead corners in the cargo box, ensuring cleaner unloading. Made with premium steel plates, they offer outstanding quality, strength, and durability, effectively reducing damage to the body from ore. The low center-of-gravity structure helps prevent tipping during loading and unloading.
|
Item |
Specification |
|
Brand: |
Haoyue |
|
Application: |
Coal/Mine/Stand/Stone Loading |
|
Dump Style: |
Rear Dump |
|
Loading Capacity: |
30T-100T |
|
Axle: |
2/3/4*13/16T Haoyue/FUWA/BPW |
|
Length |
11000mm |
|
Width: |
2500mm |
|
Height: |
2800mm |
|
Cylinder: |
HYVA (model is according to the length of cargo box) |
|
Floor Plate Thickness: |
5mm |
|
Cargo Thickness: |
4mm |
|
Cargo Style: |
Rectanglular/Round |
|
Front Axle Lifting: |
Available |
|
Main Beam |
Material Q345/T700 |
|
Height: 500mm |
|
|
Upper Plate: 14mm |
|
|
Middle Plate: 8mm |
|
|
Lower Plate: 16mm |
|
|
Axle: |
2/3/4*13/16T HaoyueFUWA/BPW |
|
Tire: |
11.00R20/12R222.5*8/12/16 pieces Linglong/Triangle/Double-Coin/Bridgestone |
|
Rim: |
8.0/9.0*8/12/16 pieces, steel/aluminum |
|
Suspension: |
Mechanical/Airbag |
|
Leaf Spring: |
90mm*13/16mm*10 pieces |
|
Landing Gear: |
28T two-speed, JOST |
|
King Pin: |
#50(2")/#90(3.5"), JOST/Other Brand |
|
Tool Box: |
Steel/aluminum |
Hydraulic Cylinder
We use hydraulic cylinders from well-known brands, offering excellent quality and stable performance to ensure smooth loading and unloading.
High-pressure oil flows through the hydraulic hose into the lifting valve, which directs it to the cylinder. Under the control of the pneumatic control valve, the cylinder returns the oil to the hydraulic tank, enabling lifting, stopping, and lowering functions of the hydraulic cylinder.
Advantages
- Our rear dump trailers support free customization, with load capacities ranging from 30 to 100 tons.
- High-strength steel are used to ensure excellent durability of the beams and chassis.
- A polyurethane composite painting process is applied. During production, the chassis undergoes shot blasting, combined with primer and polyurethane coating to enhance adhesion and improve oxidation resistance.
- The HYVA brand hydraulic lifting system is adopted, providing optimal stability and durability.
- As a semi-trailer factory, we offer factory-direct pricing, giving customers the best return on investment.
- We support T/T and L/C payment terms.
- One-year warranty and long-term spare parts supply are provided.
Specification
| Brand: | Haoyue |
| Application: | Coal/Mine/Stand/Stone Loading |
| Dump Style: | Rear Dump |
| Loading Capacity: | 30T-100T |
| Axle: | 2/3/4*13/16T Haoyue/FUWA/BPW |
| Length | 11000mm |
| Width: | 2500mm |
| Height: | 2800mm |
| Cylinder: | HYVA (model is according to the length of cargo box) |
| Floor Plate Thickness: | 5mm |
| Cargo Thickness: | 4mm |
| Cargo Style: | Rectanglular/Round |
| Front Axle Lifting: | Available |
| Main Beam | Material Q345/T700 |
| Axle: | 2/3/4*13/16T HaoyueFUWA/BPW |
| Tire: | 11.00R20/12R222.5*8/12/16 pieces Linglong/Triangle/Double-Coin/Bridgestone |
| Rim: | 8.0/9.0*8/12/16 pieces, steel/aluminum |
| Suspension: | Mechanical/Airbag |
| Leaf Spring: | 90mm*13/16mm*10 pieces |
| Landing Gear: | 28T two-speed, JOST |
| King Pin: | #50(2")/#90(3.5"), JOST/Other Brand |
| Tool Box: | Steel/aluminum |
| Height | 500mm |
| Upper Plate | 14mm |
| Middle Plate | 8mm |
| Lower Plate | 16mm |
Request a Quotation
Send us your destination port and any special requirements. Our team reviews the configuration and prepares a quotation.
