Tipper Trailers · Rear Dump Semi Trailer

30 Ton Tipper Trailer for Fuel

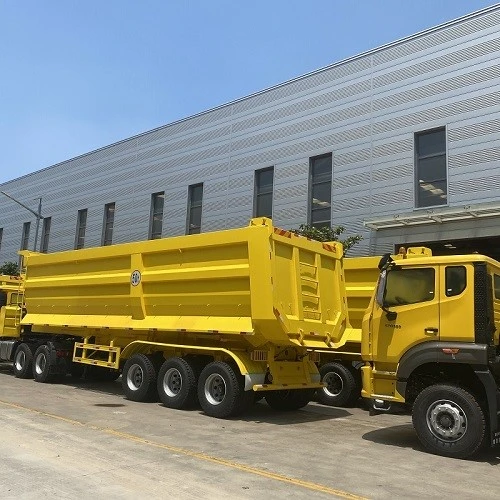

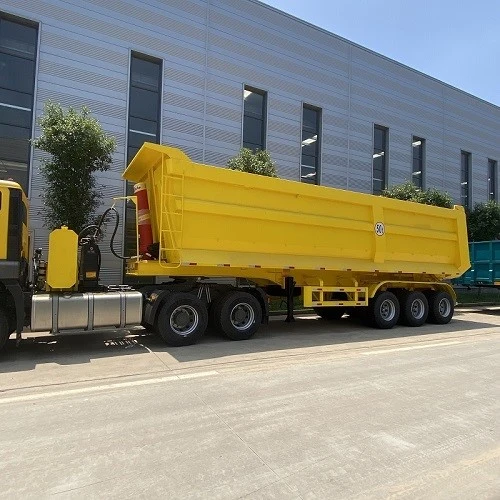

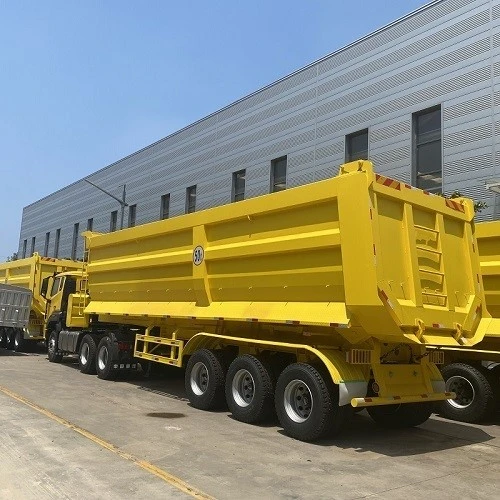

Tipper Trailers adopt advanced design concept.For the Tipper Trailers box, we adopt high strength steel to make it durable when load the sand or small stones or rocks, especially under the off road condition.Dump box dimensions and U-shape, box thickness, HYVA hydraulic cylinder and optional accessories(two pieces spare tire carriers, water tank, fuel…

Request a Quote

Specification of Tipper Trailers

Item	Specification
Brand	Haoyue
Application	Coal/Mine/Stand/Stone Loading
Dump Style	Rear Dump
Loading Capacity	30T-100T
Axle	2/3/4*13/16T Haoyue/FUWA/BPW
Length	11000mm
Width	2500mm
Height	2800mm
Cylinder	HYVA (model is according to the length of cargo box)
Floor Plate Thickness	5mm
Cargo Thickness	4mm
Cargo Style	Rectanglular/Round
Front Axle Lifting	Available
Main Beam	Material Q345/T700
	Height: 500mm
	Upper Plate: 14mm
	Middle Plate: 8mm
	Lower Plate: 16mm
Tire	11.00R20/12R222.5*8/12/16 pieces Linglong/Triangle/Double-Coin/Bridgestone
Rim	8.0/9.0*8/12/16 pieces, steel/aluminum
Suspension	Mechanical/Airbag
Leaf Spring	90mm13/16mm10 pieces
Landing Gear	28T two-speed, JOST
King Pin	#50(2")/#90(3.5"), JOST/Other Brand
Tool Box	Steel/aluminum

Characteristic of Tipper Trailers

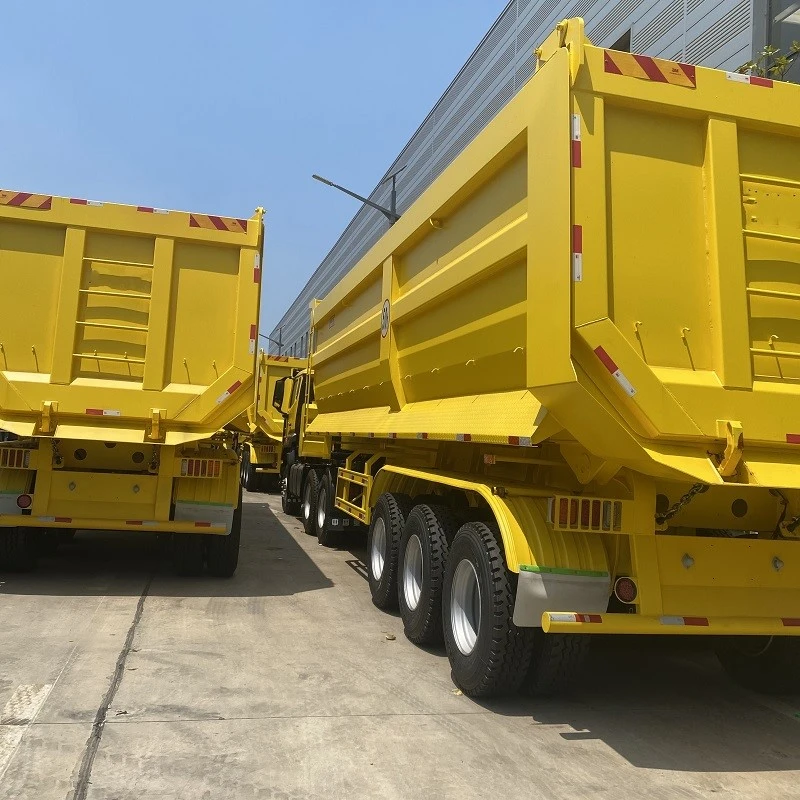

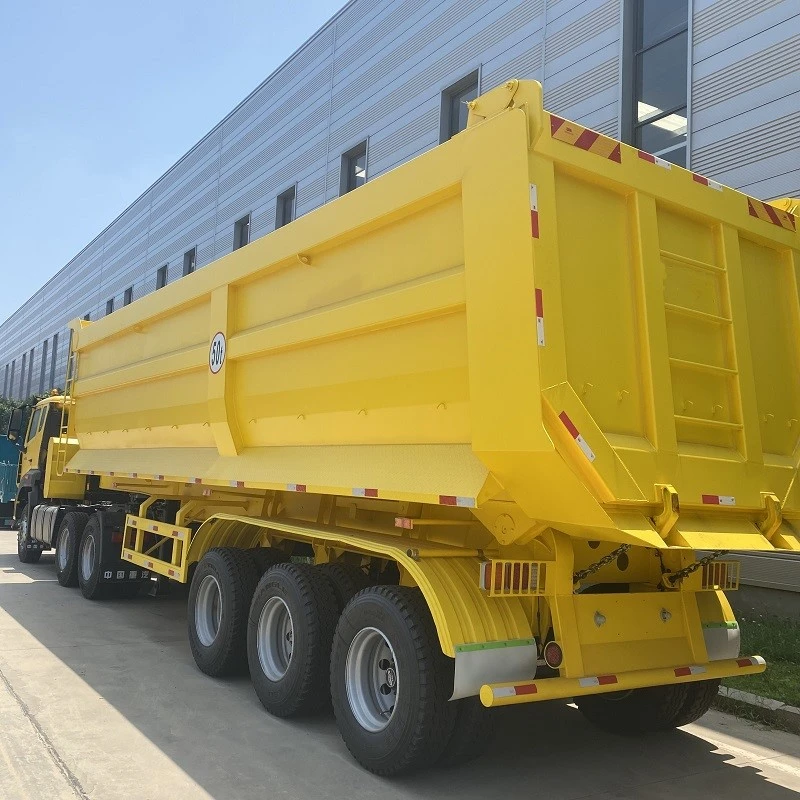

U section box:

U model box design and analysis, larger section area with lower barycentre, load more and unloading easier, saftly and efficiently

Material：
Hardox 450 or equal wear and abrasion-resistant material box, T700 high tension beam, tare weight lighter 2000kg than normal material tipper, longer service time and lower fuel consumption

Cylinder：
FC and FE model optional, higher operating pressure, help Max 45° tilt angle, reducing turnaround time with faster-ripping speed, increasing operating time with long service intervals

Fasten Sys：
Rear door auto fasten lock efficiency work, adjustable design keep suitable situation,easy maintenance and replace

Tipper Trailers

Advantages

We can design and produce Tipper Trailers according to customer's need. These products are according to domestic conventional configuration of China. But we can meet your special system.

We have consummate after-sales service network. Best comparability of performance and price has wined more and more customers.

We have consummate service network. Best comparability of performance and price has wined more and more customers.

FAQ

1. Are you a manufacturer?

Yes, we have been in special vehicle manufacturing and marketing for over 40 years.

2. Is it available to print our own brand on the vehicle?

Totally acceptable as you wish.

3. What information should I let you know if I want to get a quotation?

Please let us know the your purpose,road condition,cargo type,tons of your cargo,dimensions of trailer,quantity etc. The more info. you provide, the more accurate model and price you will get.

4. How do you make our business long-term and good relationship?

We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Specification

Brand	Haoyue
Application	Coal/Mine/Stand/Stone Loading
Dump Style	Rear Dump
Loading Capacity	30T-100T
Axle	2/3/4*13/16T Haoyue/FUWA/BPW
Length	11000mm
Width	2500mm
Height	2800mm
Cylinder	HYVA (model is according to the length of cargo box)
Floor Plate Thickness	5mm
Cargo Thickness	4mm
Cargo Style	Rectanglular/Round
Front Axle Lifting	Available
Main Beam	Material Q345/T700
Tire	11.00R20/12R222.5*8/12/16 pieces Linglong/Triangle/Double-Coin/Bridgestone
Rim	8.0/9.0*8/12/16 pieces, steel/aluminum
Suspension	Mechanical/Airbag
Leaf Spring	90mm13/16mm10 pieces
Landing Gear	28T two-speed, JOST
King Pin	#50(2")/#90(3.5"), JOST/Other Brand
Tool Box	Steel/aluminum
Height	500mm
Upper Plate	14mm
Middle Plate	8mm
Lower Plate	16mm

Configuration options to discuss

Rear Dump Semi Trailer options below are described at product-family level in the 2025 catalogue. They are not a list of equipment automatically included with this model.

Rear or side discharge
Mechanical or airbag suspension
Rectangular or round rear-dump cargo body
Axle arrangement and cylinder selection

What determines the cylinder model?

The catalogue states that the HYVA cylinder model is selected according to the cargo-box length. Confirm the full body and hydraulic configuration in the quotation.

For a quotation, include the cargo, dimensions, loaded weight, loading method, quantity and destination. Ask for the documents applicable to the agreed configuration.

Source: Vehicle Master Product Catalog 2025, PDF pages 31–33. Catalogue configurations are references; confirm the specification and documents for your selected order.
