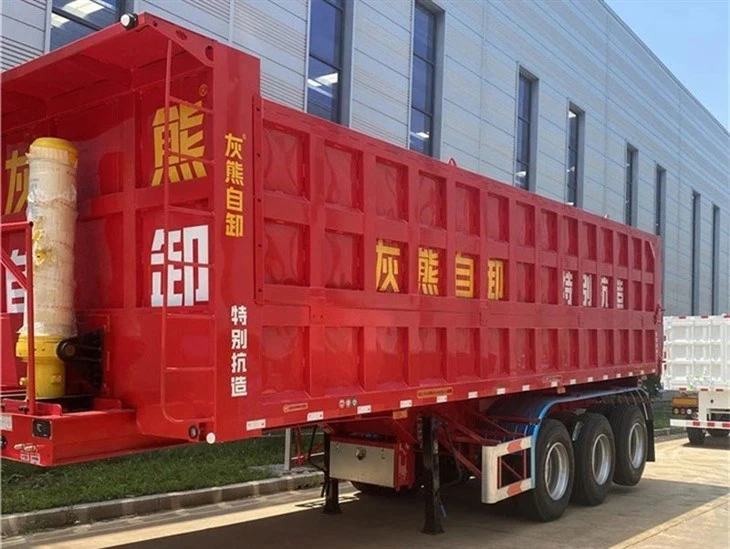

30 Ton Tipper Trailer
We are a professional dump trailer manufacturer with 40 years of semi-trailer manufacturing experience. Our dump trailers are built with high-quality raw materials and advanced production processes. Based on customers' load requirements, we optimize the chassis design to achieve a more reasonable structure, reducing tare weight without compromising load…
We are a professional dump trailer manufacturer with 40 years of semi-trailer manufacturing experience.
Our dump trailers are built with high-quality raw materials and advanced production processes. Based on customers' load requirements, we optimize the chassis design to achieve a more reasonable structure, reducing tare weight without compromising load capacity or service life.
Specification of Dump Trailer
|
Item |
Specification |
|
Brand |
Haoyue |
|
Application |
Coal/Mine/Stand/Stone Loading |
|
Dump Style |
Rear Dump Trailer/Side Dump Trailer |
|
Loading Capacity |
30T-100T |
|
Axle |
2/3/4*13/16T, FUWA/BPW |
|
Length |
11000mm |
|
Width |
2500mm |
|
Height |
2800mm |
|
Cylinder |
HYVA (model is according to the length of cargo box) |
|
Floor Plate Thickness |
5mm |
|
Cargo Thickness |
4mm |
|
Cargo Style |
Rectanglular/Round |
|
Front Axle Lifting |
Available |
|
Main Beam |
Material Q345/T700 |
|
Height: 500mm |
|
|
Upper Plate: 14mm |
|
|
Middle Plate: 8mm |
|
|
Lower Plate: 16mm |
|
|
Axle |
2/3/4*13/16T |
|
Tire |
11.00R20/12R222.5*8/12/16 pieces |
|
Rim |
8.0/9.0*8/12/16 pieces, steel/aluminum |
|
Suspension |
Mechanical/Airbag |
|
Leaf Spring |
90mm*13/16mm*10 pieces |
|
Landing Gear |
28T two-speed, JOST |
|
King Pin |
#50(2")/#90(3.5"), JOST/Other Brand |
|
Tool Box |
Steel/aluminum |

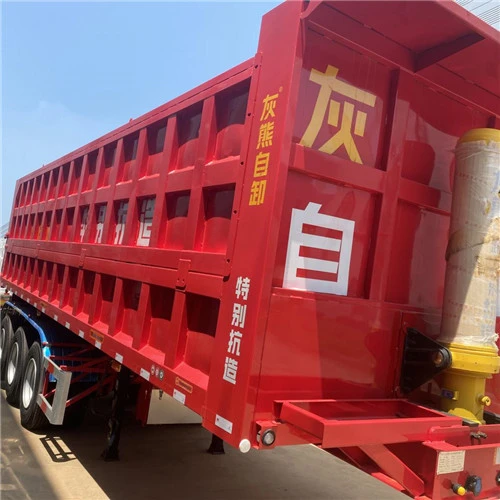

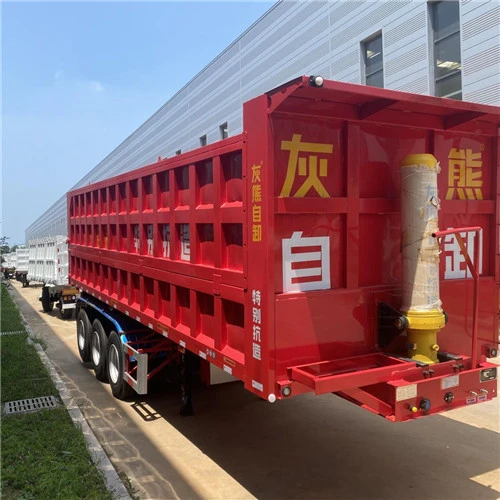

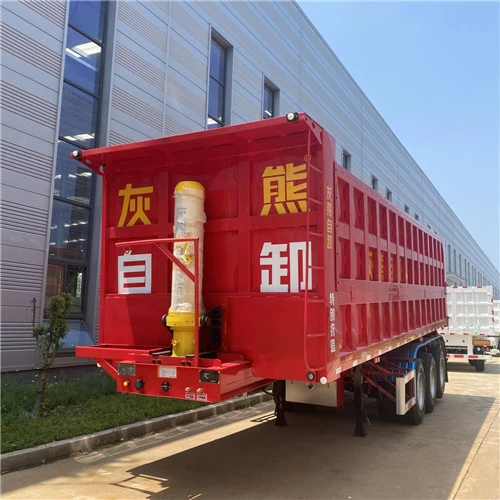

Dump Trailer Structural Design
The dump trailer cargo body we produce supports both side tipping and rear tipping, enabling efficient loading and unloading of bulk and loose materials. It features high strength, strong lifting force, excellent rigidity, and high load capacity. The chassis is reasonably designed with advanced manufacturing technology. The body is made of high-strength cold-rolled corrugated steel plates, with multiple height options, and is available in rectangular or U-shaped cargo bodies, offering a large loading volume.
Specification
| Brand | Haoyue |
| Application | Coal/Mine/Stand/Stone Loading |
| Dump Style | Rear Dump Trailer/Side Dump Trailer |
| Loading Capacity | 30T-100T |
| Axle | 2/3/4*13/16T, FUWA/BPW |
| Length | 11000mm |
| Width | 2500mm |
| Height | 2800mm |
| Cylinder | HYVA (model is according to the length of cargo box) |
| Floor Plate Thickness | 5mm |
| Cargo Thickness | 4mm |
| Cargo Style | Rectanglular/Round |
| Front Axle Lifting | Available |
| Main Beam | Material Q345/T700 |
| Axle | 2/3/4*13/16T HaoyueFUWA/BPW |
| Tire | 11.00R20/12R222.5*8/12/16 pieces Linglong/Triangle/Double-Coin/Bridgestone |
| Rim | 8.0/9.0*8/12/16 pieces, steel/aluminum |
| Suspension | Mechanical/Airbag |
| Leaf Spring | 90mm*13/16mm*10 pieces |
| Landing Gear | 28T two-speed, JOST |
| King Pin | #50(2")/#90(3.5"), JOST/Other Brand |
| Tool Box | Steel/aluminum |
| Height | 500mm |
| Upper Plate | 14mm |
| Middle Plate | 8mm |
| Lower Plate | 16mm |
Request a Quotation
Send us your destination port and any special requirements. Our team reviews the configuration and prepares a quotation.
