20-80 Ton 20/40/45ft Flatbed Semi Trailer for Sale
A flatbed trailer is a type of trailer with a flat, open cargo area that is used to transport various types of freight, materials, equipment, and machinery. Flatbed trailers come in various sizes, lengths, and capacities, and are commonly used in the logistics and transportation industry to haul heavy and bulky loads that cannot fit inside an enclosed…
Trailer Flatbed
Introduction
A flatbed trailer is a type of trailer with a flat, open cargo area that is used to transport various types of freight, materials, equipment, and machinery. Flatbed trailers come in various sizes, lengths, and capacities, and are commonly used in the logistics and transportation industry to haul heavy and bulky loads that cannot fit inside an enclosed trailer.
|
20FT FLATBED SEMI TRAILER |
40FT FLATBED SEMI TRAILER |
45FT FLATBED SEMI TRAILER |
|
Brand: Haoyue |
Brand: Haoyue |
Brand: Haoyue |
|
2 Axles/3 Axles |
2 Axles/3 Axles /4 Axles |
3 Axles /4 Axles |
|
20ft Container / Cargo Loading |
1*40ft/2*20ft Container / Cargo Loading |
1*40ft/1*45ft Container / Cargo Loading |
|
Loading Capacity: 20 – 60 Tons |
Loading Capacity: 30 – 80 Tons |
Loading Capacity: 30 – 80 Tons |
|
Type: Gooseneck Type/ Tandem Type |
Type: Gooseneck Type/ Tandem Type |
Type: Gooseneck Type/ Tandem Type |
|
Main Beam |
||
|
Material: Q345/T700 |
Material: Q345/T700 |
Main Beam Material: Q345/T700 |
|
Upper Plate Thickness: 12mm |
Upper Plate Thickness: 16mm |
Upper Plate Thickness: 16mm |
|
Middle Plate Thickness: 6mm |
Middle Plate Thickness: 10mm |
Middle Plate Thickness: 10mm |
|
Lower Plate Thickness: 14mm |
Lower Plate Thickness: 18mm |
Lower Plate Thickness: 18mm |
|
Height: 500mm |
Height: 500mm |
Height: 500mm |
|
Platform Thickness: 2.5mm |
Platform Thickness: 3mm |
Platform Thickness: 3mm |
|
Dimension |
||
|
L*W*H: 7000mm*2500mm*1570mm |
L*W*H: 12400mm*2500mm*1570mm |
L*W*H: 13950mm*2500mm*1600mm |
|
Axle |
||
|
2/3 Axles *13/16 Ton Haoyue/FUWA/BPW/Other |
2/3 Axles *13/16 Ton Haoyue/FUWA/BPW/Other |
2/3 Axles *13/16 Ton Haoyue/FUWA/BPW/Other |
|
Tire |
||
|
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand |
12R22.5 (8/12 Pieces) Linglong/Triangle/DoubleCoin/Bridgestone/ Other Brand |
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand |
|
Rim |
||
|
9.00*22.5 (8/12 Pieces) Steel/Aluminum |
9.00*22.5 (8/12 Pieces) Steel/Aluminum |
9.00*22.5 (8/12 Pieces) Steel/Aluminum |
|
Leaf Spring |
||
|
90mm*13mm*10 Pieces 90mm*16mm*10 Pieces |
90mm*13mm*10 Pieces 90mm*16mm*10 Pieces |
90mm*13mm*10 Pieces 90mm*16mm*10 Pieces |
|
King Pin |
||
|
#50(2″)/#90(3.5″), JOST/Other Brand |
#50(2″)/#90(3.5″), JOST/Other Brand |
#50(2″)/#90(3.5″), JOST/Other Brand |
|
Landing Gear |
||
|
28 Ton Two Speed, JOST/Other Brand |
28 Ton Two Speed, JOST/Other Brand |
28 Ton Two Speed, JOST/Other Brand |
|
Twist Lock |
||
|
4 Sets |
12 Sets |
12 Sets |
|
Vehicle Painting |
||
|
Electrophoresis painting |
Electrophoresis painting |
Electrophoresis painting |
If you are interested in our Trailer Flatbed or you wanna know more infos, you can contact us.
Whatsapp/Tel:+86 191 0068 9141
Email:semitrailer@sdvehiclemaster.com
Advantages of Trailer Flatbed
1. Versatility: Trailer flatbeds are versatile and can be used for transporting a wide range of cargo, including heavy machinery, equipment, and vehicles.
2. Accessibility: Flatbed trailers are open and available from all sides, making loading and unloading much easier and faster.
3. Flexibility: With a flatbed trailer, you have the flexibility to adjust the size and height of the cargo, as per your requirements.
4. Cost-effective: Flatbed trailers are often cheaper to operate and maintain compared to specialized trailers for specific types of cargo.
5. Durability: Flatbed trailers are typically constructed from strong and durable materials, making them suitable for heavy-duty work and harsh weather conditions.
6. Safe Transportation: Flatbed trailers are typically equipped with tie-down points to secure the cargo, ensuring safe transportation.
7. Easy Maintenance: Flatbed trailers are relatively easy to maintain and repair, which means less downtime and fewer expenses.
8. Independent: Flatbed trailers are independent of the truck’s chassis, which means they can be attached to any truck with a hitch, making them easy to pair with different types of trucks.
9. High load capacity: Flatbed trailers have a high load capacity, which means you can transport large and heavy cargo in a single trip, saving time and money.
10. Improves Efficiency: The use of flatbed trailers improves efficiency, reduces loading and unloading times, and decreases the number of trips needed to transport goods.
General Specifications of Trailer Flatbed
| Feature | Description |
|
Suspension |
Mechanical/Air suspension American/German type suspension Light duty suspension |
|
Beam Options
|
20/40/45ft container/cargo |
|
Beam Style Options |
Straight neck Gooseneck |
|
Axle Options |
Brand options: Haoyue/BPW/FUWA American/German type axle |
|
Landing Device
|
Brand options: Haoyue/JOST |
|
Tire
|
Optional brands per requirement |
|
Water/Fuel Too Box
|
Aluminum/carbon steel Water/fuel box |
Feature and Benefit
| Description | Picture |
|

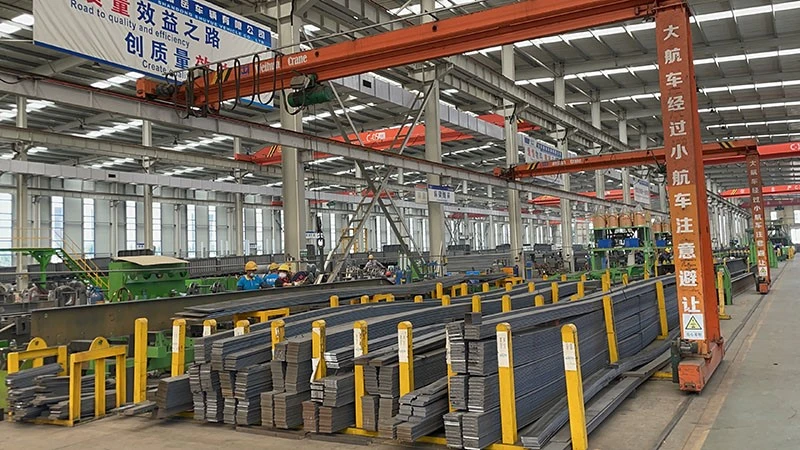

1. Steel Baogang steel with high durability and excellent pressure resistance (Shanghai Baogang is the best and largest steel plant in China). |
|
|
2. Structural Design Compared to other trailers in the same weight class, we use the latest structural design that increases the capacity by about 20% in contrast with ordinary structure. |
|
|

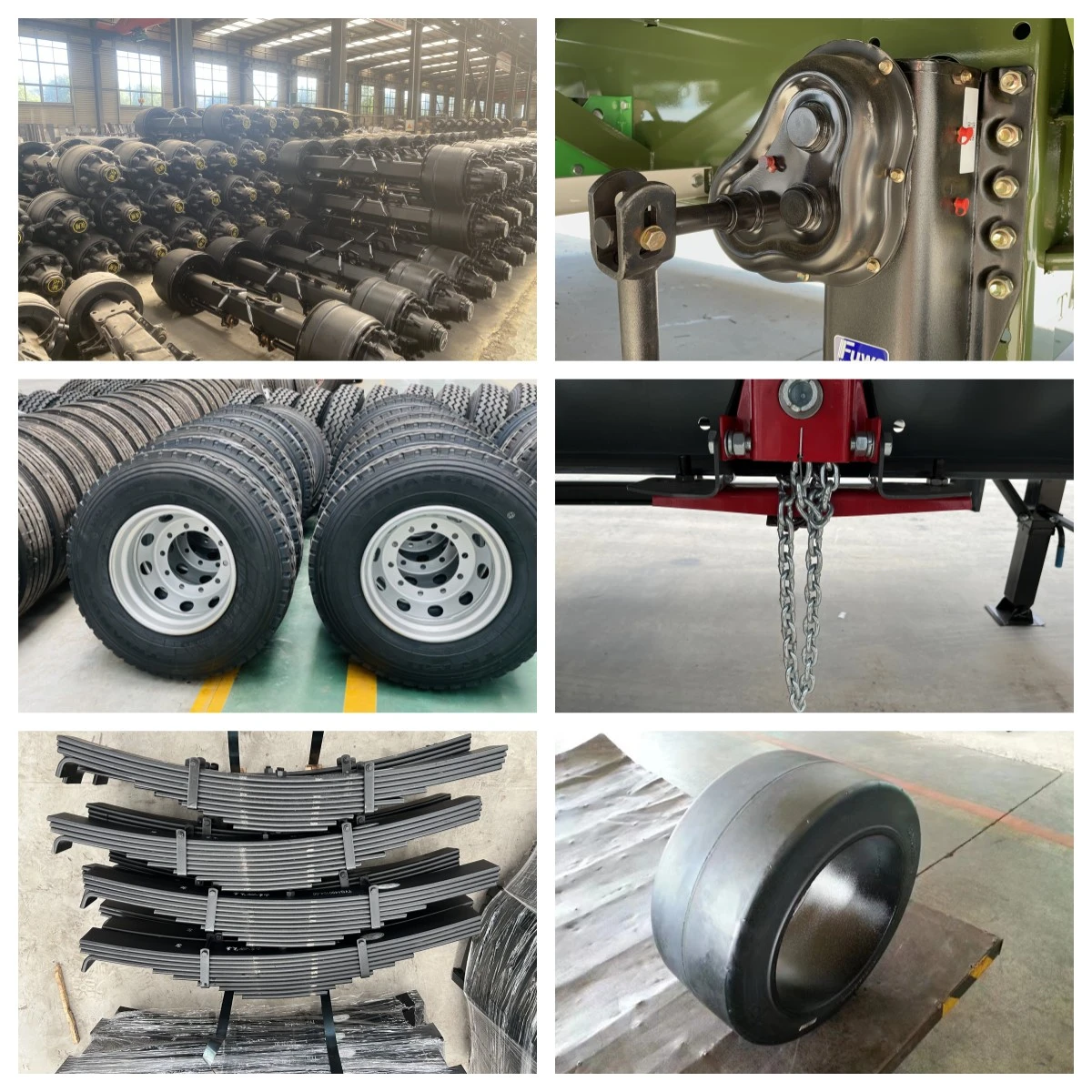

3. Parts All parts are first-class quality to ensure the longest service life. |
|
|

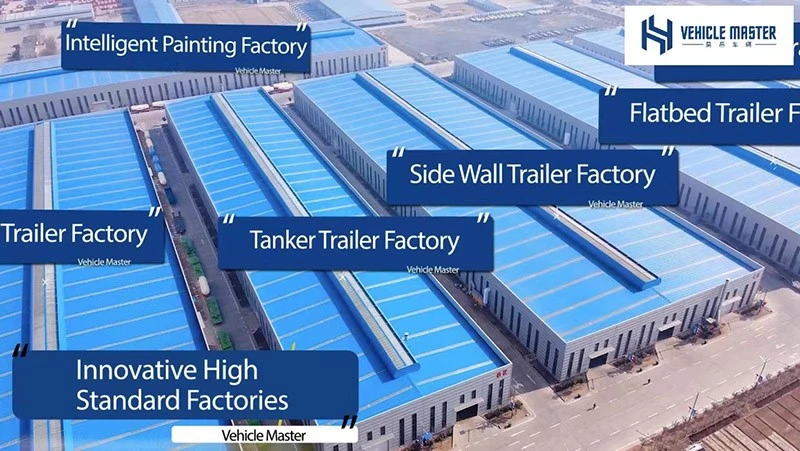

4. Industry advantage We have our own semi-trailer factory, tank trailer factory, and axle and suspension factory, and steel processing factory to ensure the best quality from the very beginning. |
|
FAQ
1. Q: Do you have your own factory?
A: We have our own factory and we have 30 years experience in semi trailer production and semi trailer export. We sincerely welcome you to visit our factory.
2. Q: How long it will take for an order to be delivered?
A: 15 to 20 working days after we received your 30% payment inadvance or 100% L/C at sight. The specific delivery time depends on the items and the quantity of your order.
3. Q: Can I get a sample or order 1 unit?
A: Yes, you can order 1 unit and our MOQ is 1 set.
4. Q: How about the warranty?
A: Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers new accessories with free.
5. Q: Whats the time for delivery ?
A: If standard model we have in stock can ship it out within 10 days after payment.
If used trailer or truck,we can ship it out within 10 days after payment. Because we have to renovate and paint it.
If it is a new production, usually cases in 20 days can be finished for shipment.
Specification
| 20FT FLATBED SEMI TRAILER | 40FT FLATBED SEMI TRAILER 45FT FLATBED SEMI TRAILER |
| Brand: Haoyue | Brand: Haoyue Brand: Haoyue |
| 2 Axles/3 Axles | 2 Axles/3 Axles /4 Axles 3 Axles /4 Axles |
| 20ft Container / Cargo Loading | 1*40ft/2*20ft Container / Cargo Loading 1*40ft/1*45ft Container / Cargo Loading |
| Loading Capacity: 20 - 60 Tons | Loading Capacity: 30 - 80 Tons Loading Capacity: 30 - 80 Tons |
| Type: Gooseneck Type/ Tandem Type | Type: Gooseneck Type/ Tandem Type Type: Gooseneck Type/ Tandem Type |
| Material: Q345/T700 | Material: Q345/T700 Main Beam Material: Q345/T700 |
| Upper Plate Thickness: 12mm | Upper Plate Thickness: 16mm Upper Plate Thickness: 16mm |
| Middle Plate Thickness: 6mm | Middle Plate Thickness: 10mm Middle Plate Thickness: 10mm |
| Lower Plate Thickness: 14mm | Lower Plate Thickness: 18mm Lower Plate Thickness: 18mm |
| Height: 500mm | Height: 500mm Height: 500mm |
| Platform Thickness: 2.5mm | Platform Thickness: 3mm Platform Thickness: 3mm |
| L*W*H: 7000mm*2500mm*1570mm | L*W*H: 12400mm*2500mm*1570mm L*W*H: 13950mm*2500mm*1600mm |
| 2/3 Axles *13/16 Ton Haoyue/FUWA/BPW/Other | 2/3 Axles *13/16 Ton Haoyue/FUWA/BPW/Other 2/3 Axles *13/16 Ton Haoyue/FUWA/BPW/Other |
| 9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (8/12 Pieces) Steel/Aluminum 9.00*22.5 (8/12 Pieces) Steel/Aluminum |
| 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces | 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces |
| #50(2")/#90(3.5"), JOST/Other Brand | #50(2")/#90(3.5"), JOST/Other Brand #50(2")/#90(3.5"), JOST/Other Brand |
| 28 Ton Two Speed, JOST/Other Brand | 28 Ton Two Speed, JOST/Other Brand 28 Ton Two Speed, JOST/Other Brand |
| 4 Sets | 12 Sets 12 Sets |
| Electrophoresis painting | Electrophoresis painting Electrophoresis painting |
| Feature | Description |
| Suspension | Mechanical/Air suspension American/German type suspension Light duty suspension |
| Beam Options | 20/40/45ft container/cargo |
| Beam Style Options | Straight neck Gooseneck |
| Axle Options | Brand options: Haoyue/BPW/FUWA American/German type axle |
| Landing Device | Brand options: Haoyue/JOST |
| Tire | Optional brands per requirement |
| Water/Fuel Too Box | Aluminum/carbon steel Water/fuel box |
| Description | Picture |
| Brand | Haoyue |
| Loading Capacity | 20 - 60 Tons |
| Loading Capacity | 30 - 80 Tons |
| Type | Gooseneck Type/ Tandem Type |
| Material | Q345/T700 |
| Main Beam Material | Q345/T700 |
| Upper Plate Thickness | 12mm |
| Upper Plate Thickness | 16mm |
| Middle Plate Thickness | 6mm |
| Middle Plate Thickness | 10mm |
| Lower Plate Thickness | 14mm |
| Lower Plate Thickness | 18mm |
| Height | 500mm |
| Platform Thickness | 2.5mm |
| Platform Thickness | 3mm |
| L*W*H | 7000mm*2500mm*1570mm |
| L*W*H | 12400mm*2500mm*1570mm |
| L*W*H | 13950mm*2500mm*1600mm |
| Whatsapp/Tel | +86 191 0068 9141 |
| semitrailer@sdvehiclemaster.com | |
| Brand options | Haoyue/BPW/FUWA |
Request a Quotation
Send us your destination port and any special requirements. Our team reviews the configuration and prepares a quotation.
