3 Axle 80 Ton 20ft Flatbed Trailer for Sale
Container flatbed trailer use through beam structure, where frame structure has flat type or gooseneck type. It has the characteristics of high integral strength, small weight, elegant appearance, strong loading capacity, and reliable operation.Specially designed anti tire abrasion suspension system prevents tire offset after loading.Electrophoresis…

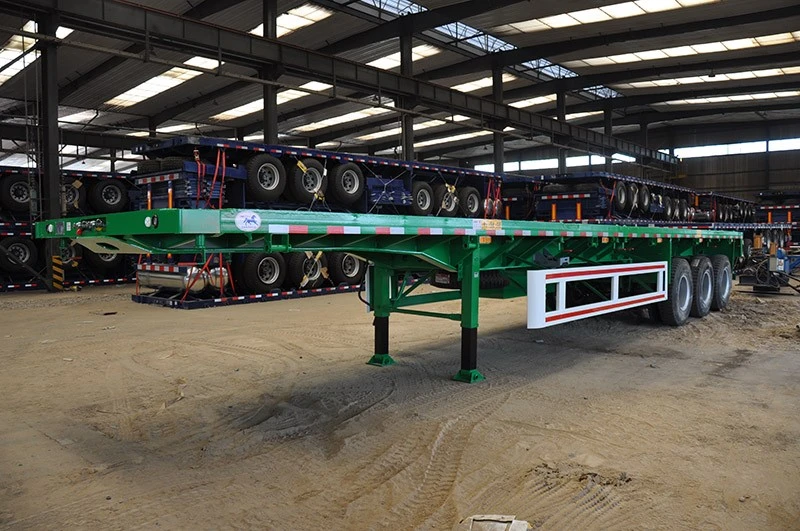

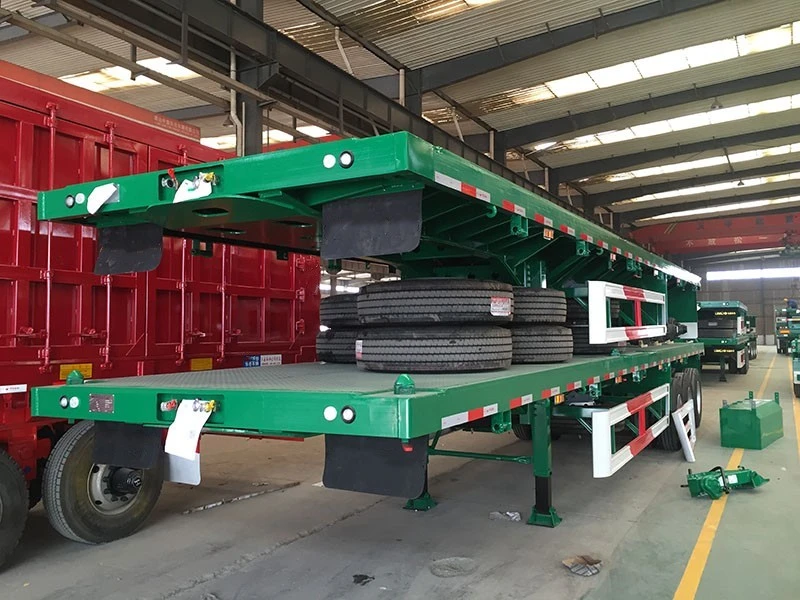

Container Flatbed Trailer
Introduction
Container flatbed trailer use through beam structure, where frame structure has flat type or gooseneck type. It has the characteristics of high integral strength, small weight, elegant appearance, strong loading capacity, and reliable operation.Specially designed anti tire abrasion suspension system prevents tire offset after loading.Electrophoresis Painting is applied so resistance and painting effect can last for over 10 years.
Parameter
|
20FT FLATBED TRAILER |
40FT FLATBED TRAILER |
45FT FLATBED TRAILER |
|
Brand: Haoyue |
Brand: Haoyue |
Brand: Haoyue |
|
2 Axles/3 Axles |
2 Axles/3 Axles /4 Axles |
3 Axles /4 Axles |
|
20ft Container / Cargo Loading |
1*40ft/2*20ft Container / Cargo Loading |
1*40ft/1*45ft Container / Cargo Loading |
|
Loading Capacity: 20 – 60 Tons |
Loading Capacity: 30 – 80 Tons |
Loading Capacity: 30 – 80 Tons |
|
Type: Gooseneck Type/ Tandem Type |
Type: Gooseneck Type/ Tandem Type |
Type: Gooseneck Type/ Tandem Type |
|
Main Beam |
||
|
Material: Q345/T700 |
Material: Q345/T700 |
Main Beam Material: Q345/T700 |
|
Upper Plate Thickness: 12mm |
Upper Plate Thickness: 16mm |
Upper Plate Thickness: 16mm |
|
Middle Plate Thickness: 6mm |
Middle Plate Thickness: 10mm |
Middle Plate Thickness: 10mm |
|
Lower Plate Thickness: 14mm |
Lower Plate Thickness: 18mm |
Lower Plate Thickness: 18mm |
|
Height: 500mm |
Height: 500mm |
Height: 500mm |
|
Platform Thickness: 2.5mm |
Platform Thickness: 3mm |
Platform Thickness: 3mm |
|
Dimension |
||
|
L*W*H: 7000mm*2500mm*1570mm |
L*W*H: 12400mm*2500mm*1570mm |
L*W*H: 13950mm*2500mm*1600mm |
|
Axle |
||
|
2/3 Axles *13/16 Ton Haoyue/FUWA/BPW/Other |
2/3 Axles *13/16 Ton Haoyue/FUWA/BPW/Othe |
2/3 Axles *13/16 Ton Haoyue/FUWA/BPW/Other |
|
Tire |
||
|
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand |
12R22.5 (8/12 Pieces) Linglong/Triangle/DoubleCoin/Bridgestone/ Other Brand |
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand |
|
Rim |
||
|
9.00*22.5 (8/12 Pieces) Steel/Aluminum |
9.00*22.5 (8/12 Pieces) Steel/Aluminum |
9.00*22.5 (8/12 Pieces) Steel/Aluminum |
|
Leaf Spring |
||
|
90mm*13mm*10 Pieces 90mm*16mm*10 Pieces |
90mm*13mm*10 Pieces 90mm*16mm*10 Pieces |
90mm*13mm*10 Pieces 90mm*16mm*10 Pieces |
|
King Pin |
||
|
#50(2″)/#90(3.5″), JOST/Other Brand |
#50(2″)/#90(3.5″), JOST/Other Brand |
#50(2″)/#90(3.5″), JOST/Other Brand |
|
Landing Gear |
||
|
28 Ton Two Speed, JOST/Other Brand |
28 Ton Two Speed, JOST/Other Brand |
28 Ton Two Speed, JOST/Other Brand |
|
Twist Lock |
||
|
4 Sets |
12 Sets |
12 Sets |
|
Vehicle Painting |
||
|
Electrophoresis painting |
Electrophoresis painting |
Electrophoresis painting |
If you are interested in our Container Flatbed Trailer or you wanna know more infos, you can contact us.
Whatsapp/Tel:+86 191 0068 9141
Email:semitrailer@sdvehiclemaster.com
1. Using Container Flatbed Trailer, the goods can be loaded in the deliverers’s warehouse and be unloaded in the receivers’ warehouse without taking the goods out for transferring.
2. Customary quick dispatches are allowed, transiting the goods form one kind of transport vehicle to another is available.
3. Internal design is convenient for the goods’ fill-ups and discharging, satisfing your diversified needs and wants.

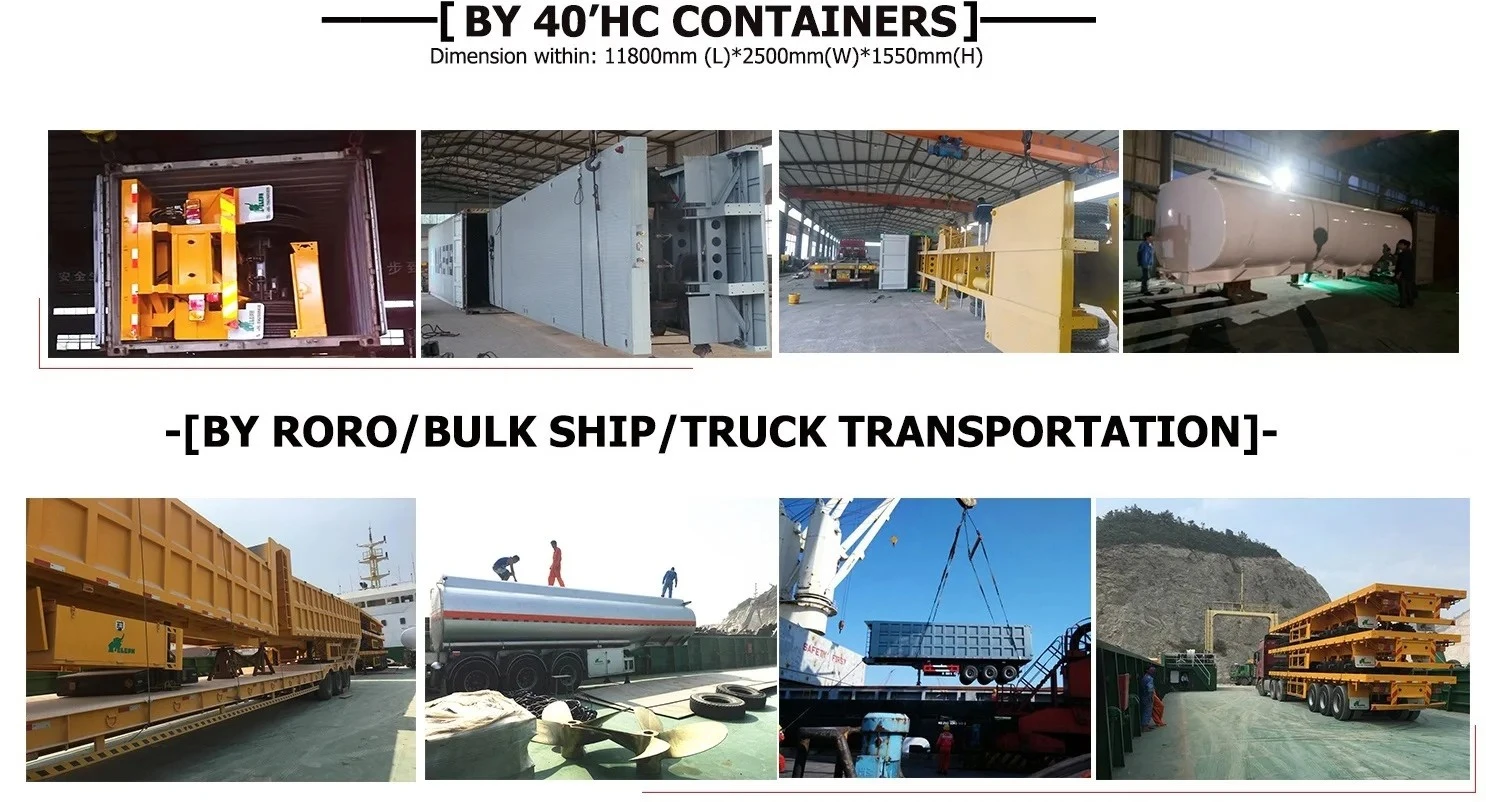

Packaging & delivery
1. Nude Packing 3 sets stacked by bulk cargo ship/Ro-Ro ship/Land transportation
2. Cut the rear part which can load two sets in one 40ft container;
3. Keep the trailer original but load two sets in one 45ft container.

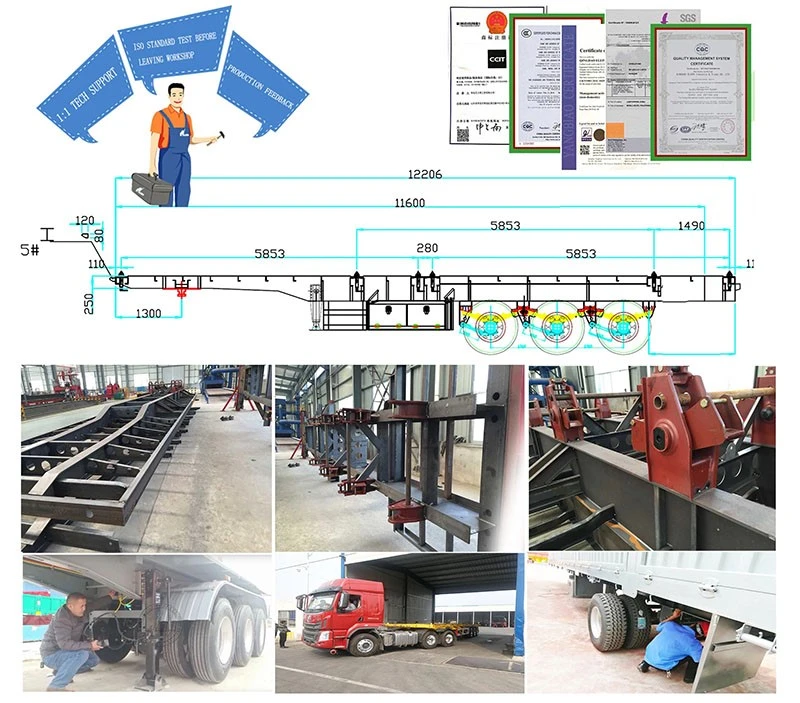

Our Service
Design and Engineering: We have a team of skilled designers and engineers who work with our cusromers to develop custom semi-trailer designs that meet their specific requirements.
Manufacturing: Our company has a fully equipped manufacturing facility.
Customization: We offer customization options to our customers, allowing them to choose specific features, sizes, and configurations for their semi trailers.
Repairs and Maintenance: We provide repair and maintenance services for semi trailers.
Parts and Accessories: We offer a wide range of semi trailer parts and accessories to customers, including tires, axles, brakes, lights, landing gear, doors, ramps, and other components.
Training and Education: We offer training programs and educational resources to our customers, helping them understand the proper usage, maintenance, and safety practices related to their semi trailers.

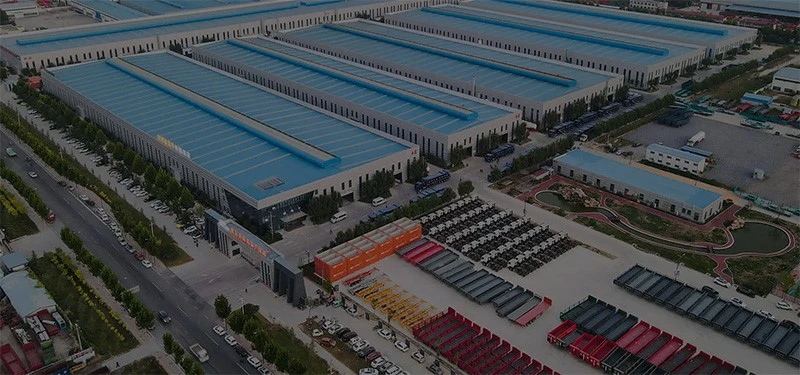

Company Info
Vehicle Master is the trailer brand presented by Shandong Haoyue Vehicle Co., Ltd. in its 2025 product catalogue. The company profile describes OEM/ODM cooperation and customer relationships in more than 40 countries by 2025.
Specification
| 20FT FLATBED TRAILER | 40FT FLATBED TRAILER 45FT FLATBED TRAILER |
| Brand: Haoyue | Brand: Haoyue Brand: Haoyue |
| 2 Axles/3 Axles | 2 Axles/3 Axles /4 Axles 3 Axles /4 Axles |
| 20ft Container / Cargo Loading | 1*40ft/2*20ft Container / Cargo Loading 1*40ft/1*45ft Container / Cargo Loading |
| Loading Capacity: 20 - 60 Tons | Loading Capacity: 30 - 80 Tons Loading Capacity: 30 - 80 Tons |
| Type: Gooseneck Type/ Tandem Type | Type: Gooseneck Type/ Tandem Type Type: Gooseneck Type/ Tandem Type |
| Material: Q345/T700 | Material: Q345/T700 Main Beam Material: Q345/T700 |
| Upper Plate Thickness: 12mm | Upper Plate Thickness: 16mm Upper Plate Thickness: 16mm |
| Middle Plate Thickness: 6mm | Middle Plate Thickness: 10mm Middle Plate Thickness: 10mm |
| Lower Plate Thickness: 14mm | Lower Plate Thickness: 18mm Lower Plate Thickness: 18mm |
| Height: 500mm | Height: 500mm Height: 500mm |
| Platform Thickness: 2.5mm | Platform Thickness: 3mm Platform Thickness: 3mm |
| L*W*H: 7000mm*2500mm*1570mm | L*W*H: 12400mm*2500mm*1570mm L*W*H: 13950mm*2500mm*1600mm |
| 2/3 Axles *13/16 Ton Haoyue/FUWA/BPW/Other | 2/3 Axles *13/16 Ton Haoyue/FUWA/BPW/Othe 2/3 Axles *13/16 Ton Haoyue/FUWA/BPW/Other |
| 9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (8/12 Pieces) Steel/Aluminum 9.00*22.5 (8/12 Pieces) Steel/Aluminum |
| 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces | 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces |
| #50(2")/#90(3.5"), JOST/Other Brand | #50(2")/#90(3.5"), JOST/Other Brand #50(2")/#90(3.5"), JOST/Other Brand |
| 28 Ton Two Speed, JOST/Other Brand | 28 Ton Two Speed, JOST/Other Brand 28 Ton Two Speed, JOST/Other Brand |
| 4 Sets | 12 Sets 12 Sets |
| Electrophoresis painting | Electrophoresis painting Electrophoresis painting |
| Brand | Haoyue |
| Loading Capacity | 20 - 60 Tons |
| Loading Capacity | 30 - 80 Tons |
| Type | Gooseneck Type/ Tandem Type |
| Material | Q345/T700 |
| Main Beam Material | Q345/T700 |
| Upper Plate Thickness | 12mm |
| Upper Plate Thickness | 16mm |
| Middle Plate Thickness | 6mm |
| Middle Plate Thickness | 10mm |
| Lower Plate Thickness | 14mm |
| Lower Plate Thickness | 18mm |
| Height | 500mm |
| Platform Thickness | 2.5mm |
| Platform Thickness | 3mm |
| L*W*H | 7000mm*2500mm*1570mm |
| L*W*H | 12400mm*2500mm*1570mm |
| L*W*H | 13950mm*2500mm*1600mm |
| Whatsapp/Tel | +86 191 0068 9141 |
| semitrailer@sdvehiclemaster.com | |
| Design and Engineering | We have a team of skilled designers and engineers who work with our cusromers to develop custom semi-trailer designs that meet their specific requirements. |
| Manufacturing | Our company has a fully equipped manufacturing facility. |
| Customization | We offer customization options to our customers, allowing them to choose specific features, sizes, and configurations for their semi trailers. |
| Repairs and Maintenance | We provide repair and maintenance services for semi trailers. |
| Parts and Accessories | We offer a wide range of semi trailer parts and accessories to customers, including tires, axles, brakes, lights, landing gear, doors, ramps, and other components. |
| Training and Education | We offer training programs and educational resources to our customers, helping them understand the proper usage, maintenance, and safety practices related to their semi trailers. |
Request a Quotation
Send us your destination port and any special requirements. Our team reviews the configuration and prepares a quotation.
