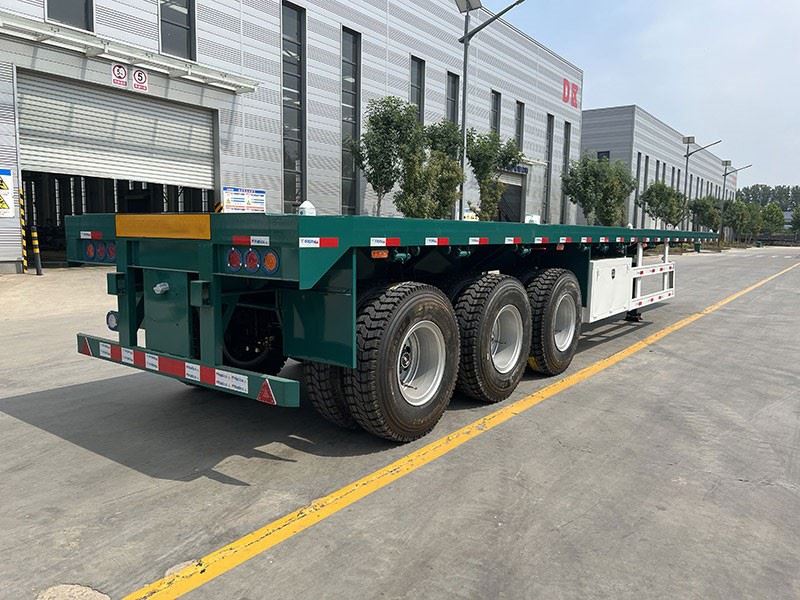

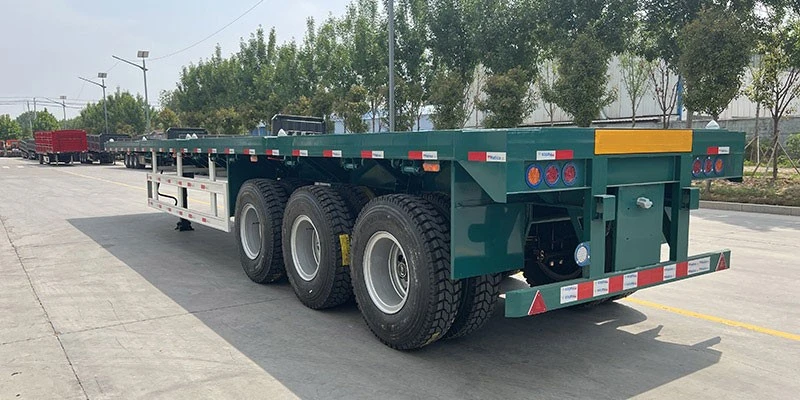

3-Axle 80 Ton 40ft Flatbed Trailer for Machinery

This is a 3 axle 40ft flatbed semi trailer for sale. As a leading semi-trailer manufacturer, we sell high-quality flatbed semi trailers at factory prices. This 3 axle 40ft flatbed semi trailer can be used to transport containers, mechanical equipment, packaged goods, etc., according to your usage needs.

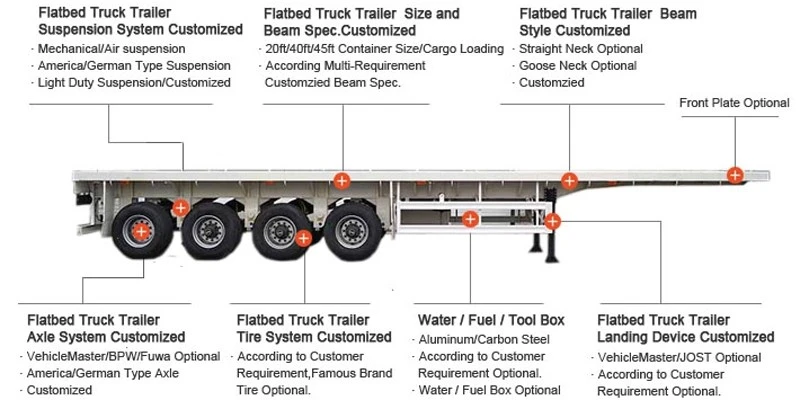

The flatbed semi trailers we produce offer customization options according to your usage needs. Whether you need a 2/3/4-axle configuration, a length ranging from 20 to 60 feet, a load capacity from 20 to 80 tons, or specific fixing functions such as container twist locks, uprights, and lashing points, we can meet your requirements.

• Container Transportation: It can be used for transporting containers of international standard sizes.
• Heavy Equipment Transportation: The open-deck design is very suitable for transporting large machinery and equipment.
• Building Material Transportation: From steel beams to concrete blocks, it can transport various building materials to the construction site.
• Log Transportation: With the use of uprights and lashing points, it is very suitable for transporting logs or tubular goods.

• Axles: 3 (2/4-axle options are available)
• Length: 40 feet (Customization of 20/45/53/60 feet is available)
• Load Capacity: 30-80 tons (Customizable)
• Type: Gooseneck Type/ Tandem Type
• Main Beam Material: Q345/T700
• Axle Specifications: 2/3/4 Axles *13/16 Ton, FUWA/BPW/Other
• Tire: 12R22.5 (8/12/16 Pieces)
• King Pin: #50(2")/#90(3.5"), JOST/Other Brand
• Landing Gear: 28 Ton Two Speed, JOST/Other Brand
• Twist Lock: 4 Sets / 12 Sets
• Suspension: Mechanical Suspension / Air Suspension
• Vehicle Painting: Electrophoresis painting

• Our 3 axle 40ft flatbed semi trailers are highly competitively priced, ranging from $9,200 to $30,000. The final price depends on several factors, including the selected configuration (number of axles, length, load capacity), additional features (such as a dedicated fixing system), and current production costs.

If you need to obtain our product manual or want to purchase this 3 axle 40ft flatbed semi trailer now, please contact us by leaving a message or via WhatsApp().

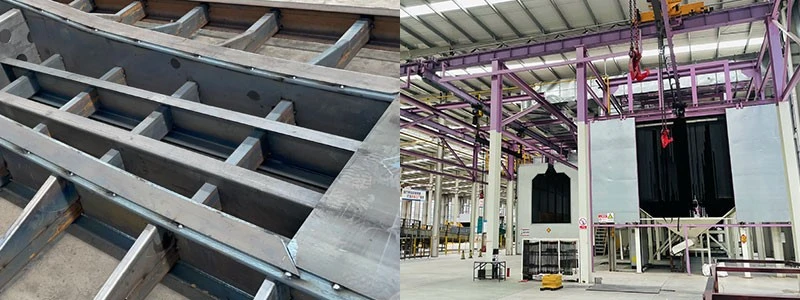

• Automatic Submerged Arc Welding Process: Since we use higher-quality steel to produce semi-trailers, we adopt a more exquisite welding process to deal with the welds, providing precise and firm welding, which greatly enhances the structural integrity and durability of the trailer and effectively extends the service life of the trailer.
• Electrophoresis Painting Process: Our trailers adopt the electrophoresis painting process, which provides more durable rust and corrosion prevention performance for the metal surface of the trailer, protects the trailer from the influence of harsh weather, and avoids the reduction of the service life of the trailer due to rust.

• Deck Design: The open-deck design is adopted, which can be used for more efficient loading and unloading of various goods. Moreover, by adding container twist locks, uprights, lashing points, etc. on the deck, the range of goods transportation can be increased.
• Container Twist Locks: The twist locks are arranged according to the fixed positions of international containers to firmly fix the containers on the trailer, ensuring stability during transportation.
• Uprights and Lashing Points: Fixing options of uprights and lashing points are provided. The uprights can be used for fixing logs or cylindrical goods. And the lashing points provide additional fixing for the goods.
• Checkered Steel Floor: The deck of our flatbed semi-trailers adopts a checkered steel floor, which greatly increases the friction and enhances the stability of the goods.
• Main Beam Material: High-strength steel Q345/T700 is used as the main beam material to enhance the load-bearing capacity and overall strength of the trailer.
• Suspension System: Customization options of mechanical suspension or air suspension are provided, which can be selected according to usage needs and economy, providing a smooth driving experience for the flatbed semi-trailer and reducing the wear of the trailer and goods.
• Braking System: We adopt the WABCO air braking system and offer the option of being equipped with ABS, which improves the braking performance and enhances safety and control.
• Tires: We use high-quality radial tires, which have a strong load-bearing capacity, better wear resistance, good structural flexibility, and low rolling resistance, which can effectively reduce fuel consumption and operating costs.

• Quality Assurance: We use high-quality raw materials and advanced production processes, and each semi trailer undergoes strict inspection before leaving the factory to ensure that every semi-trailer is durable.
• Customization Service: Each customer has different usage needs. We will provide a wide range of customization options for free according to the customer's requirements, whether it is customizing the length or customizing the functions.
• After-sales Service: When you purchase our flatbed semi trailer, we will provide you with a one-year warranty service and long-term spare parts supply service to keep the semi-trailer in the best usage condition.
• Factory Price: As a semi-trailer factory, we offer factory prices. By purchasing a flatbed semi trailer from us, you will get the best investment experience.

If you are looking for a flatbed semi trailer factory or want to buy a flatbed semi trailer at a favorable price, please contact us by leaving a message or via WhatsApp(). Our professional engineers will provide you with free customization services and quotations.
