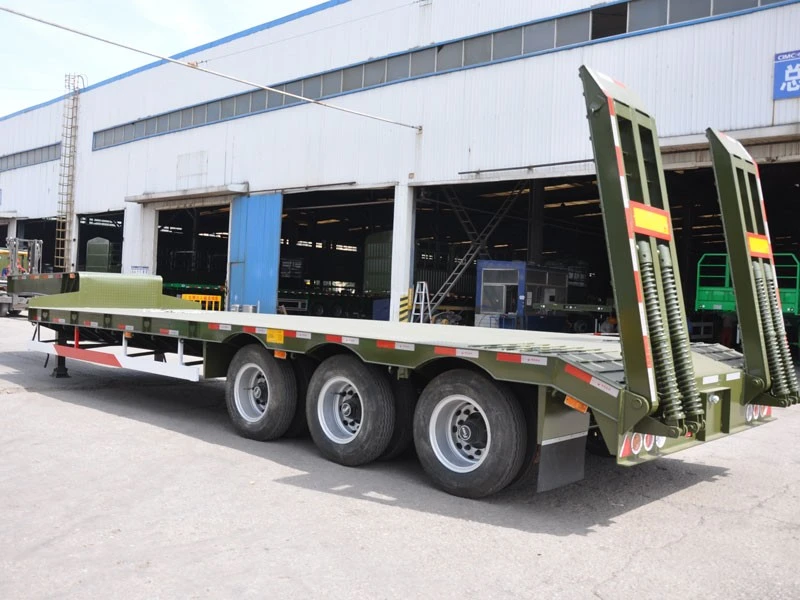

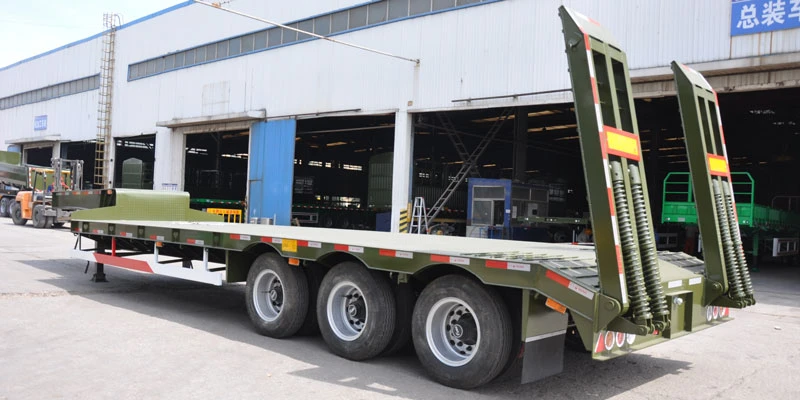

3-Axle 60 Ton Lowbed Trailer for Excavator

This 3 axle 60 ton lowbed trailer is manufactured by Haoyue and sold at factory price. It offers optional detachable gooseneck and rear ramps, making it suitable for heavy-duty transportation scenarios. It is flexible and easy to operate, efficiently meeting the transport needs of various heavy equipment and oversized cargo.

This 3 axle 60 ton lowbed trailer we produce is a popular heavy-duty model in Africa. We support full-dimension customization according to customer requirements. The load capacity can be flexibly adjusted from 30 to 150 tons, and advanced customization options such as steering axles, widening components, and hydraulic suspension are available to suit different countries' road conditions and transport demands.

• Construction Equipment Transport: Carrying excavators, loaders, and other construction site equipment.
• Engineering Material Transport: Loading bridge components and structural steel with stable support for safe transportation.
• Mining Machinery Delivery: Transporting crushing equipment with durable structure suitable for rough and uneven roads.
• Oversized Cargo Transport: Suitable for extra-long and extra-wide cargo, with optional widening customization to meet requirements.

• Load Capacity: 60 tons (customizable 30–150 tons)
• Axle Configuration: 3 axles (axles configured based on load)
• Axle Specification: 13/16/20T FUWA/BPW heavy-duty axles
• Main Beam Material: T700/Q345
• Gooseneck Structure: Detachable gooseneck (fixed gooseneck optional)
• Steering Type: Steering axle
• Widened Parts: Available
• Suspension System: Mechanical / Air / Hydraulic suspension
• Braking System: WABCO dual-circuit air brake + ABS
• Tire Model: 12R22.5 / 8.25R20
• Tire Quantity: 12 units (4 tires per axle)
• Ramp Type: Optional hydraulic or spring folding rear ramps
• King Pin: #50 (2") / #90 (3.5")
• Landing Gear: JOST, 28-ton mechanical/electric landing gear
• Painting Process: Electrophoresis + polyurethane combination painting

• The price range of our 3 axle 60 ton lowbed trailer is USD 11,000–50,000. Pricing factors include: higher load capacity requires higher-grade main beam materials and increases cost; premium-grade steel materials are more expensive than standard steel; imported axles, hydraulic suspension, and other high-end components increase cost; widening, steering axle customization, and advanced manufacturing processes also affect the final quotation.

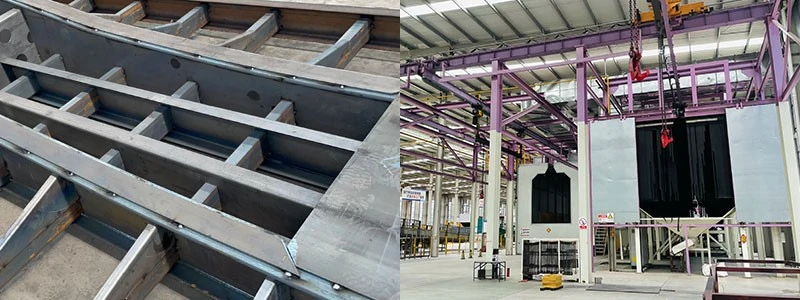

• Welding Process: The main beam adopts automatic submerged arc welding with intelligent parameter control, ensuring uniform weld penetration and strength equivalent to the base material. Key load-bearing parts such as frame joints and axle mounts are reinforced by experienced welders through precision manual welding. Magnetic particle inspection is conducted to eliminate defects such as cracks and pores, ensuring no deformation or cracking under heavy loads and enhancing overall durability.
• Painting Process: The vehicle undergoes degreasing and phosphating pretreatment, followed by electrophoresis coating to form a dense anti-corrosion base layer, and finally polyurethane topcoat spraying. The coating adhesion and hardness exceed industry standards, offering excellent scratch resistance and anti-aging performance, and can withstand harsh environments such as high temperatures, dust, and heavy rain in Africa.

• Main Beam Material: High-strength steel I-beam ensures strong load-bearing capacity while maintaining a lightweight structure, suitable for complex African road conditions.
• Gooseneck: Optional detachable gooseneck allows the deck to become a continuous flat surface after removal, facilitating front loading of self-propelled equipment.
• Heavy-Duty Axles: Equipped with heavy-duty axles with excellent load capacity, wear resistance, and impact resistance, suitable for rough mountain and mining roads.

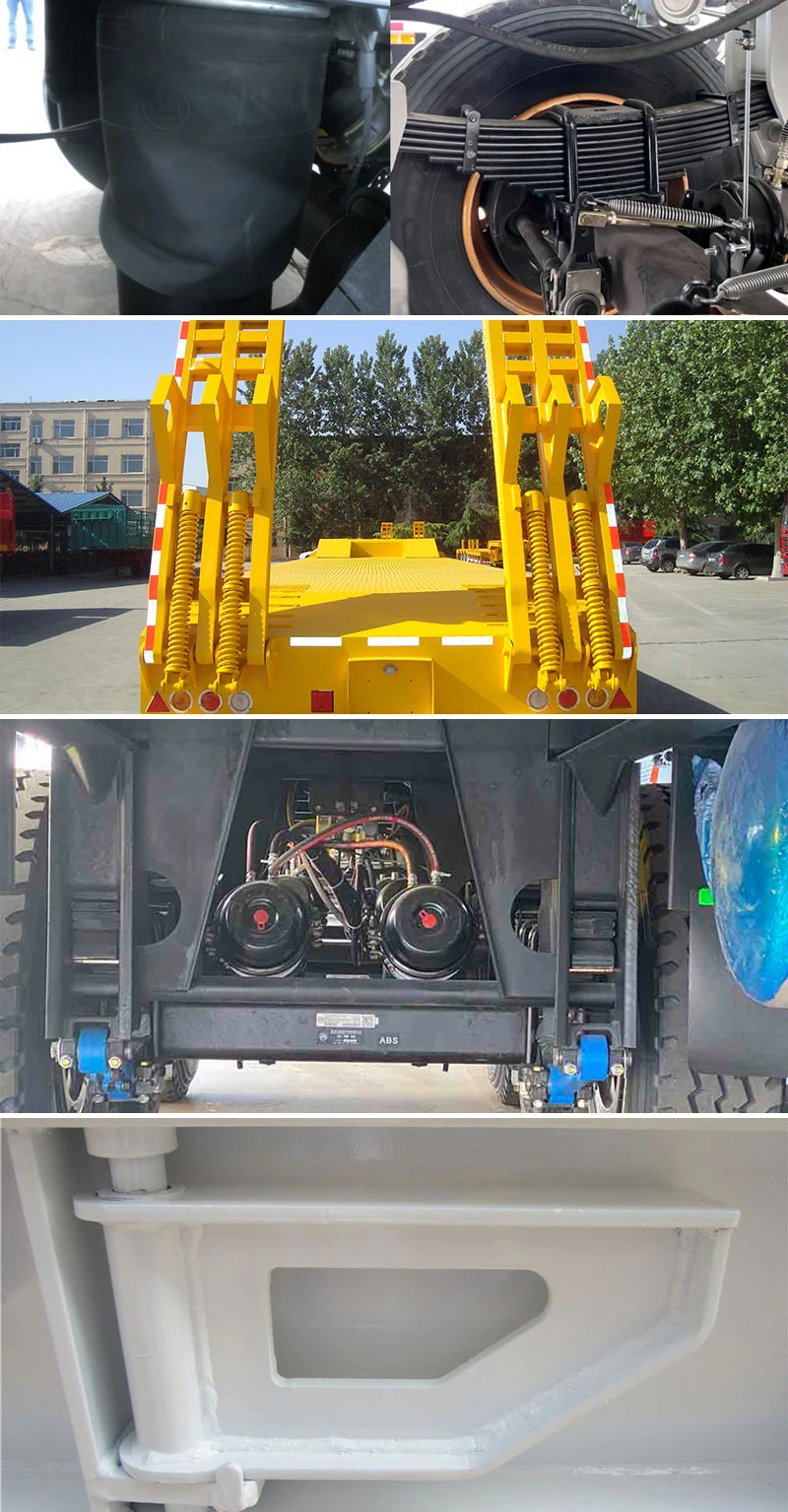

• Suspension Options: Mechanical suspension is economical and durable with low maintenance cost; air suspension provides better shock absorption; hydraulic suspension is suitable for ultra-heavy loads.
• Steering Axle: Optional hydraulic steering axle adjusts angles synchronously during turning, significantly reducing turning radius.

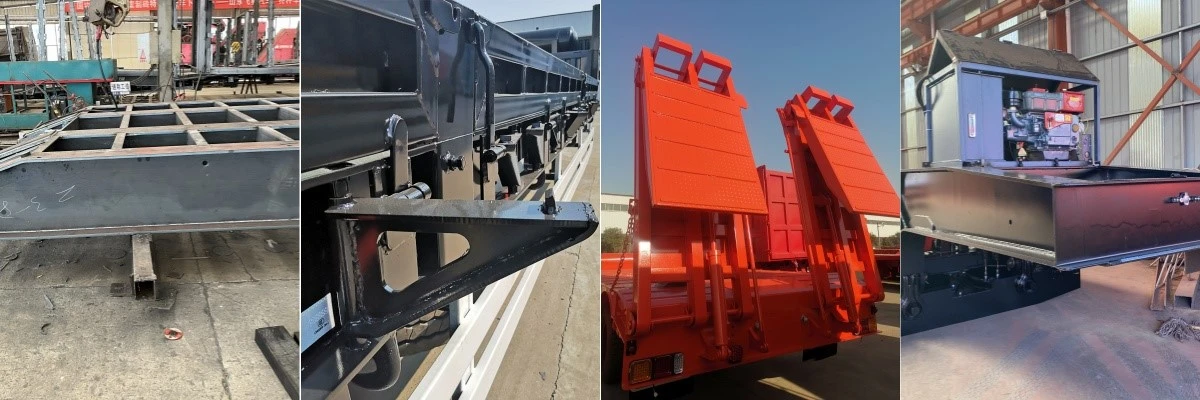

• Widening Components: Optional foldable widening components allow temporary expansion of deck width for transporting oversized cargo.
• Ramps: Optional hydraulic or spring folding rear ramps enable heavy equipment to be loaded and unloaded directly from the rear without additional lifting equipment.

• Factory Price Advantage: Purchase directly from us to connect with the production source, eliminating middlemen and obtaining high-quality lowbed trailers at factory cost.
• Free Customization Service: Based on customer transport needs and African road conditions, we provide free customization of load capacity, axle configuration, and components to accurately match real applications.
• Warranty Guarantee: One-year free warranty from the date of delivery.
• Lifetime Spare Parts Supply: Long-term supply of original spare parts to reduce downtime and ensure stable operation.

By choosing our 3 axle 60 ton lowbed semi trailer, you can enjoy factory-direct pricing without intermediary markups. With extensive experience in the African market, we understand local road conditions and requirements, and can provide precise customization services. Feel free to contact us at any time to obtain detailed configurations, real-time quotations, and professional support throughout the process.
