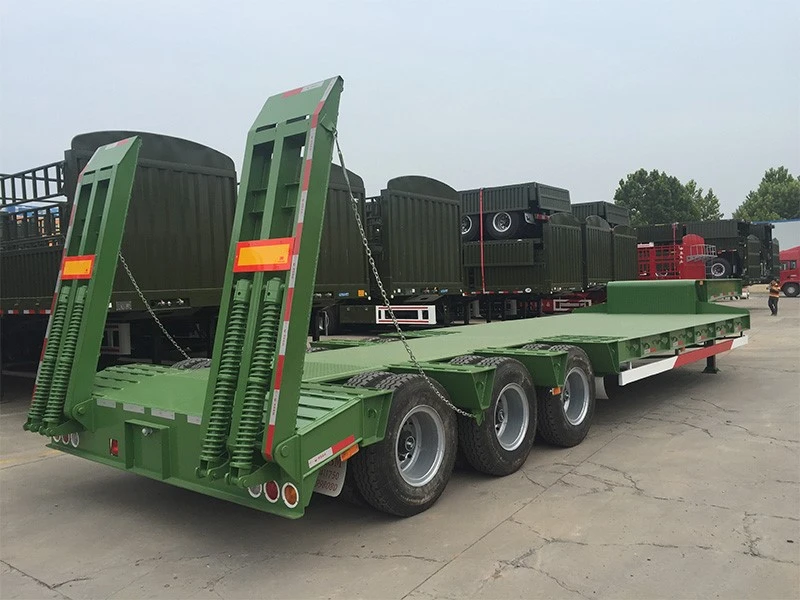

3 Axles 60 Ton Lowbed Semi Trailer for Sale
The Lowbed semi trailer is widely used, mainly for medium and long distance cargo transportation. The Lowbed semi trailer is usually designed with a high and low frame. The traction pin in the front of the gooseneck is connected with the saddle on the tractor. The rear end of the gooseneck is connected with the frame of the ladder deck low flat…
The Lowbed semi trailer is widely used, mainly for medium and long distance cargo transportation. The Lowbed semi trailer is usually designed with a high and low frame. The traction pin in the front of the gooseneck is connected with the saddle on the tractor. The rear end of the gooseneck is connected with the frame of the ladder deck low flat semi-trailer. The middle part is the cargo platform. This structure has advantages in transporting heavy vehicles, rail vehicles, mining machinery, forestry machinery, agricultural machinery and other heavy goods.
Parameter
| Feature | Description |
| Loading Capacity | 60 tons |
| Length | 13,500 mm |
| Width | 3,000 mm |
| Axle | 3 axles, Fuwa brand |
| Suspension | Mechanical leaf spring suspension |
| Tire | 12 units, Double Coin brand |
| Braking System | Dual line air brake system with ABS |
| Landing Gear | JOST brand |
| Main Beam | Q345B steel, Height 500 mm, Top Flange 14 mm, Bottom Flange 16 mm, Middle Flange 6 mm |
| Floor | 5mm checkered plate |
| Side & End Walls | 2*1.5m side walls, 2*3m rear end walls |
| Hydraulic System | HYVA brand hydraulic system |
| Electric system | 24 volts, LED lights |
| Painting | Sandblasting before painting, anti-rust primer/ zinc-rich primer/ final painting with polyurethane |
| Optional Accessories | Tool box, Spare Wheel Carrier, Water tank |
In summary, the 3 Axle Lowbed Trailer is a reliable and efficient transportation tool that meets the requirements of heavy equipment and machinery transportation. With its advanced configuration and safety features, it delivers a smooth and secure transportation experience.
If you are interested in our 3 axle lowbed trailer or you wanna know more infos, you can contact us.
Whatsapp/Tel:+86 191 0068 9141
Email:semitrailer@sdvehiclemaster.com
The rear end is connected with the semi trailer frame, the middle section is the cargo platform (frame part), and the rear end is the wheel frame (including wheels). When loading mechanical equipment on a low bed semi trailer, it is usually loaded from the rear end of the semi trailer, that is, by moving the mechanical equipment from the rear wheel frame or removing the wheels, and then fixing the mechanical equipment on the semi trailer.
The walking structure of the low plate semi-trailer is made of high strength international steel material, and the whole vehicle is light in weight, and ensures its anti-torsion, anti-vibration, anti-bump ability, and meets the bearing capacity of different road surfaces.
Features
1.Strict selection of details and meticulous quality:
meticulous and rigorous, precise assembly, rigorous and meticulous in every place, dedicated to the production of practical equipment.
2.Good toughness and strong bearing capacity：
High strength, strong lifting force, good rigidity and toughness, strong bearing capacity, not easy to deform
3.Excellent real material：
The main components are made of standard equipment, and the longitudinal beams are fully automatic submerged arc welding.
Our advantage
1.High quality ensure
We do well from raw material. All the low bed semi trailer use high tensile steel to produce. The side beam and main beam adopt torsion-resistant high-strength steel. More durable than normal trailer steel, because the low bed semi trailer usually need to carry heavy duty equipment, so the strong support capacity is key factor to it. We devoted to make more semi trailer with heavy duty capacity. Lowbed trailer gooseneck plate reinforcement, can increase the carrying capacity to 100 tons.
2.Excellent trailer constrcucture design
The low bed semi trailer using gooseneck to lower the height of the loading surface to ensure the stability during the transport process. No matter the length, width, height of the loading surface we do the reasonable design. superior bearing capacity and no permanent deformation.
3. Other spare parts quality control
Besides the high and durable semi trailer's quality need we pay more attention, the spare parts of it we use famous brand.
4. Our price advantage
We are the manufacturer of the semi trailer, we have our own semi trailer factory, the price we offer to you is factory direct sell price, no middlman to make profit.
5.Customized service
All the details of the semi trailer can customized according to your specific need.
Specification
| Feature | Description |
| Loading Capacity | 60 tons |
| Length | 13,500 mm |
| Width | 3,000 mm |
| Axle | 3 axles, Fuwa brand |
| Suspension | Mechanical leaf spring suspension |
| Tire | 12 units, Double Coin brand |
| Braking System | Dual line air brake system with ABS |
| Landing Gear | JOST brand |
| Main Beam | Q345B steel, Height 500 mm, Top Flange 14 mm, Bottom Flange 16 mm, Middle Flange 6 mm |
| Floor | 5mm checkered plate |
| Side & End Walls | 2*1.5m side walls, 2*3m rear end walls |
| Hydraulic System | HYVA brand hydraulic system |
| Electric system | 24 volts, LED lights |
| Painting | Sandblasting before painting, anti-rust primer/ zinc-rich primer/ final painting with polyurethane |
| Optional Accessories | Tool box, Spare Wheel Carrier, Water tank |
| Whatsapp/Tel | +86 191 0068 9141 |
| semitrailer@sdvehiclemaster.com |
Request a Quotation
Send us your destination port and any special requirements. Our team reviews the configuration and prepares a quotation.
