4 Axle Detachable Gooseneck Lowbed Semi Trailer

This 4 Axle Detachable Gooseneck Lowbed Semi Trailer is manufactured by Haoyue. As a professional semi trailer factory, we sell directly at factory price and provide comprehensive customization services based on customer transportation requirements.
This Detachable Gooseneck Lowbed Semi Trailer supports load customization from 30 to 150 tons, with optional 2/3/4/5 axle configurations. It can be equipped with a fixed or detachable gooseneck, ladders, and various suspension systems to flexibly meet different heavy cargo transport needs.

• Construction Machinery Transportation: Carries large construction equipment such as excavators and cranes for long-distance transport.
• Large Component Transport: Safely delivers large components such as wind turbine blades, tower sections, steel box girders, and precast slabs.
• Heavy Equipment Relocation: Securely transports heavy equipment like rolling mills and transformers.
• Mining Machinery Dispatching: Centrally delivers mining trucks and drilling equipment to mining sites.

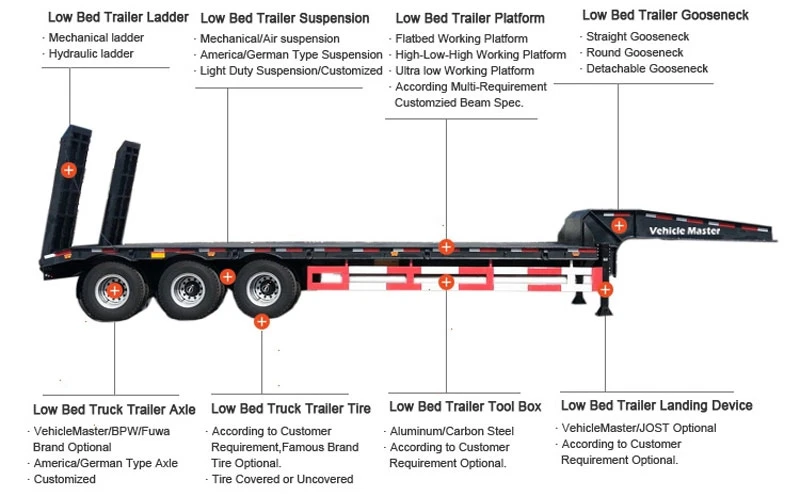

• Axle Configuration: 4 axles (customizable to 2/3/5 or multiple axles), 13/16 tons per axle
• Load Capacity: 30 – 150 tons (customizable)
• Gooseneck Type: Detachable or fixed
• Main Beam Material: Q345/T700
• Platform Thickness: 4mm
• Ladder: Mechanical Spring / Hydraulic
• Multi-Axles: Available
• Steering Axles: Available
• Widened Parts: Available
• Tire Style: Covered or Uncovered
• Tires: 12R22.5 / 8.25r20 (16 pieces) (4 tires per axle)
• Rims: 9.00*22.5 / 6.5-20 (16 pieces)
• Suspension System: Mechanical spring / Air suspension / Hydraulic suspension
• King Pin: #50 (2") / #90 (3.5"), JOST / Other Brand, Changeable
• Landing Gear: 28 Tons Two Speed, JOST / Other Brand

• As a semi trailer factory, the price range of this lowbed semi trailer is between USD 11,000 and USD 50,000. The price is affected by multiple factors, including load capacity, detachable goose neck, suspension type, steering system, and other customization options such. The higher the level of customization and the more comprehensive the features, the higher the price.

If you would like to receive our product brochure or communicate with our engineers now to customize this lowbed semi trailer, please leave us a message on our website or contact us via WhatsApp().

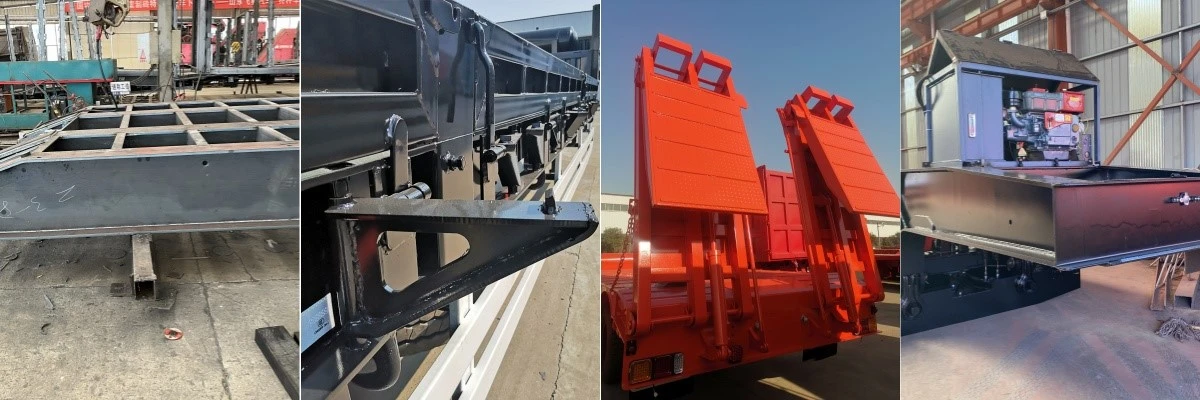

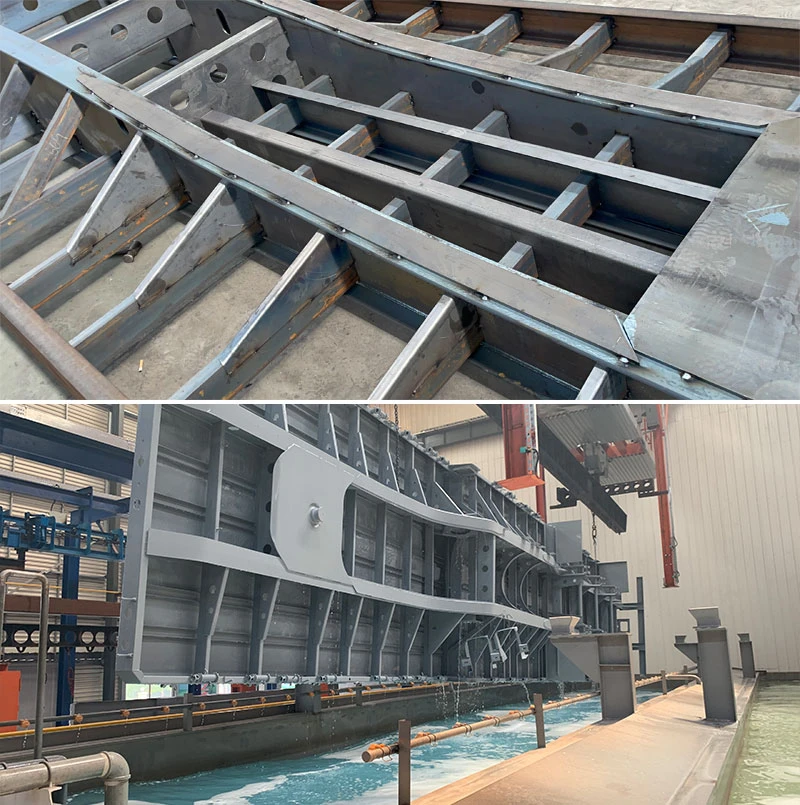

• Welding Process: Adopts automatic submerged arc welding technology for weld seams. The welding is performed continuously by automated equipment, resulting in deeper and more uniform welds. This significantly reduces porosity and slag inclusion, greatly enhances frame rigidity, withstands long-term heavy loads and complex road conditions, and improves durability.
• Painting Process: Uses electrophoretic coating to prevent trailer corrosion and rust. Through an electric field, the paint film is uniformly adhered to the metal surface, forming a dense protective layer. Compared to traditional spraying, electrophoresis provides stronger adhesion, better scratch resistance, anti-aging, and rust-proof performance. It effectively resists rain, dust, and prolongs the service life.

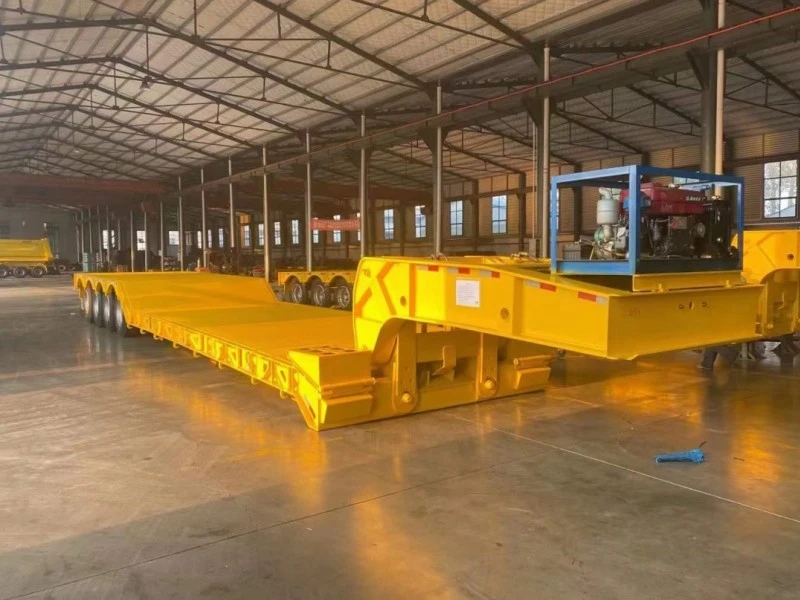

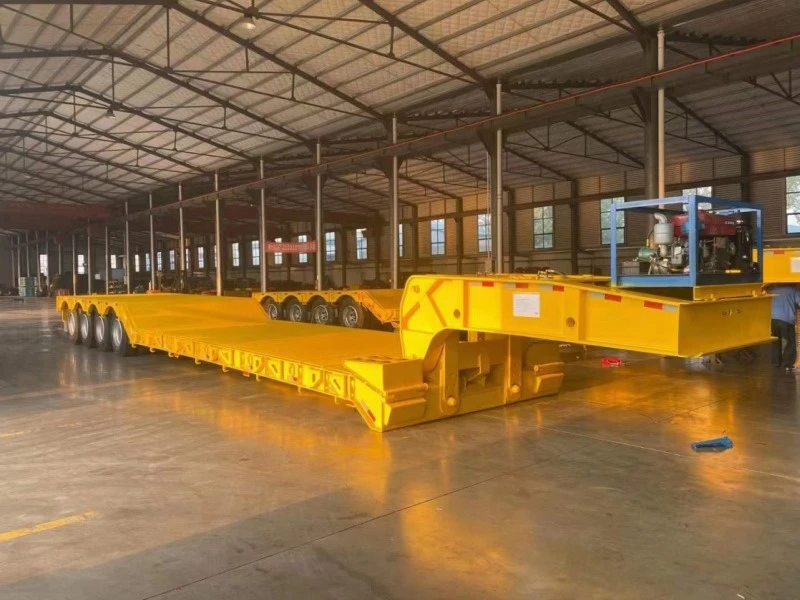

• Detachable Gooseneck: Offers a detachable gooseneck customization option. The gooseneck can be quickly assembled and disassembled, allowing for front-end loading and unloading of ultra-long equipment. It improves the efficiency and flexibility of loading large equipment.
• High-Quality Steel: Uses higher-grade steel than ordinary trailers. Special treatment enhances toughness and load-bearing capacity. Strong compression and bending resistance ensure long-term loading without deformation.

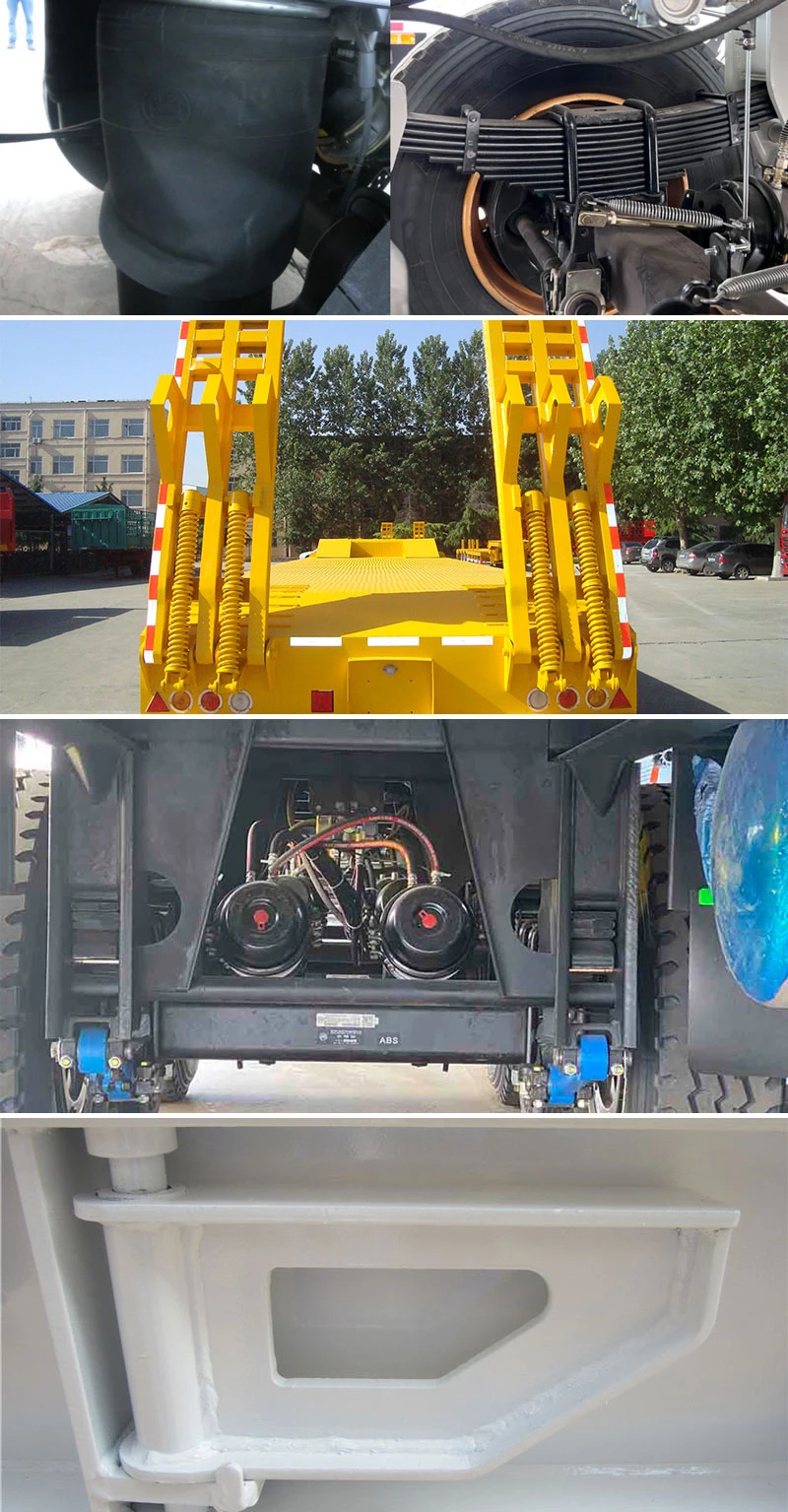

• Suspension System: Options include mechanical, air, or hydraulic suspension to adapt to different road conditions and improve driving stability. Mechanical suspension is highly durable and cost-effective; air suspension offers better shock absorption and protects precision equipment; hydraulic suspension allows adjustable height for easier loading and unloading.
• Steering Axle: Equipped with steering axles to reduce turning radius, enhance maneuverability in narrow spaces, and facilitate flexible scheduling in construction sites, mining areas, etc.
• Widening Components: Optional widening components that can be expanded when transporting oversized cargo. Flexible solution for wide-body equipment transport, enhancing stability and safety.
• Ladder: Hydraulic or spring ladders installed at the rear of the trailer make it convenient for loading and unloading self-propelled equipment. This customization offers a more economical option compared to the detachable gooseneck.

Based on the customer's destination, we coordinate the transportation route with the customer and ensure safe delivery via road, rail, sea, or multimodal transport.
Depending on the vehicle specifications, we choose container or roll-on/roll-off ship transport. Key components such as suspension systems and ladders are tightly wrapped with shockproof and moisture-proof materials to prevent collision, scratches, and rust during transportation.

As a semi trailer manufacturer, you will get our 4 Axle Detachable Gooseneck Lowbed Semi Trailer at factory price, with full customization according to your usage requirements. To learn more about product details or get an exclusive quote, feel free to contact us at any time to help your heavy-duty transportation business run efficiently! You can reach us via website message or WhatsApp().
