60 Ton Lowbed Trailer for Machinery
Modular Lowbed Trailer Strong bearing capacity and good stability.High quality high strength steel,Strong and durable construction.Hydraulic steering lift function hydraulic steering hydraulic lift is suitable for flat and uneven roads.Simple operation, high power, easy traction and easy maintenance.Customized according to customer requirements, can be…

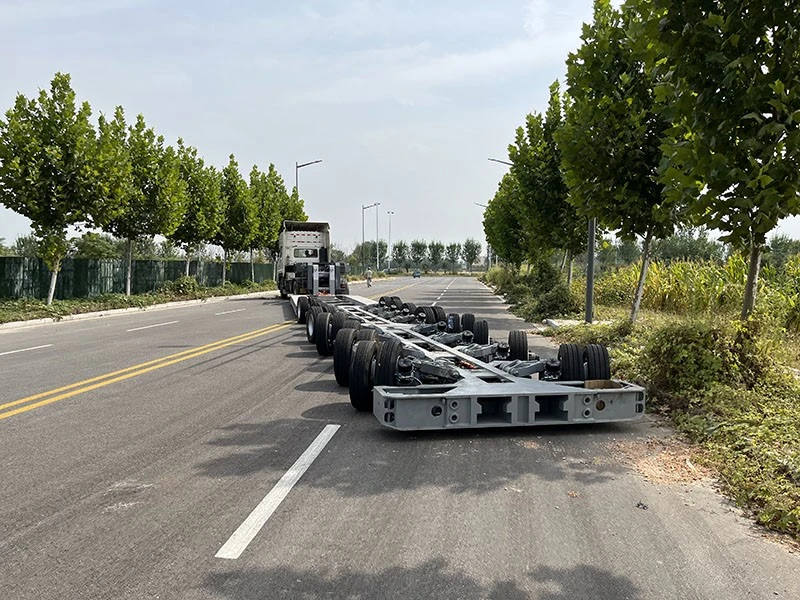

Modular Lowbed Trailer
Modular Lowbed Trailer Strong bearing capacity and good stability.High quality high strength steel,Strong and durable construction.Hydraulic steering lift function hydraulic steering hydraulic lift is suitable for flat and uneven roads.Simple operation, high power, easy traction and easy maintenance.Customized according to customer requirements, can be customized height and width, can be customized traction mode.
Parameter
|
Specifications |
|
|
Brand |
Haoyue |
|
Rated load capcity |
300,000KG Or Customized |
|
Max loading capcity |
450,000KG Or Customized |
|
Platform thickness |
50-60mm |
|
Distance of axle |
1550mm |
|
Distance of wheel |
740/1820mm |
|
Axle |
15ton hydraulic steering axle |
|
Tire |
7.50R15 tire triangle brand/Other |
|
Braking system |
Dual-pipes braking system, equipped with pneumatic type, parking brake system |
|
Electrical System |
Voltage: 24v/Receptacle: 7 ways(7 wire harness) |
|
Color |
Customized |
If you are interested in our Modular Lowbed Trailer, or you wanna know more infos, you can contact us.
Whatsapp/Tel:+86 191 0068 9141
Email:semitrailer@sdvehiclemaster.com
Product Details
| Information | Picture |

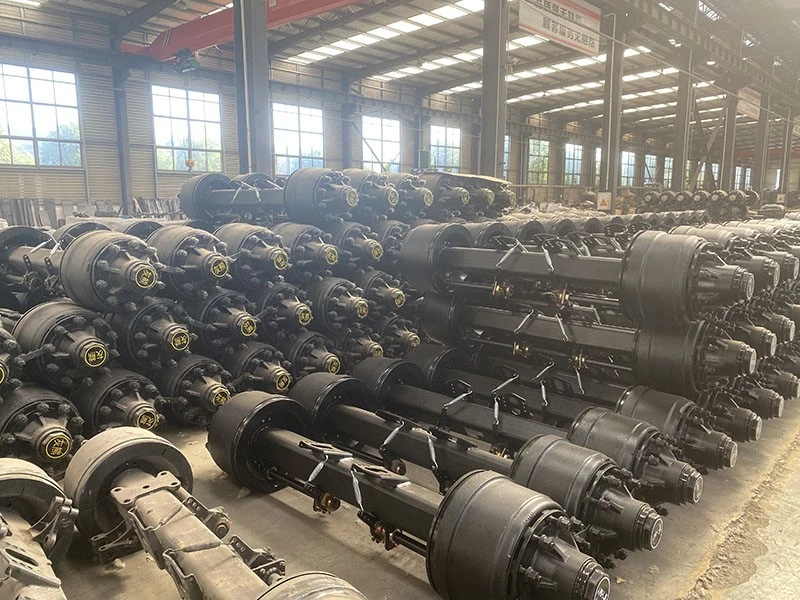

| Axles – The double axle configuration is a key feature of a lowbed trailer. It provides stability and weight distribution to the load being transported. The axles connect to the tires and braking system. |  |

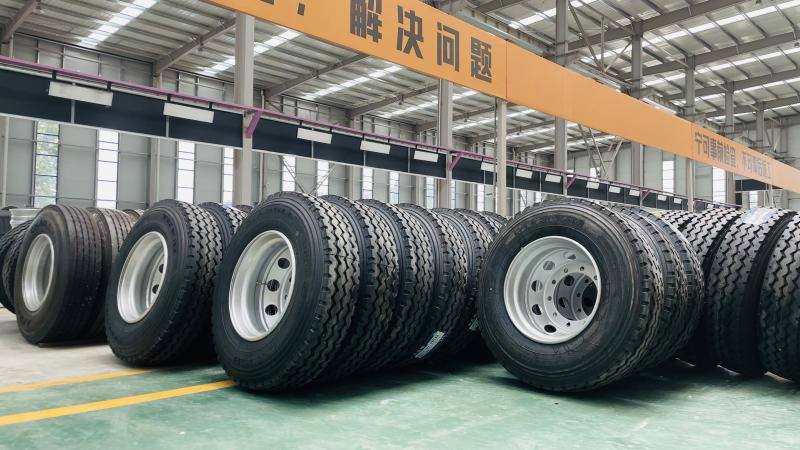

| Tires and Wheels – Lowbed trailers typically have eight wheels with heavy-duty tires capable of carrying the weight of large equipment and machinery. |  |

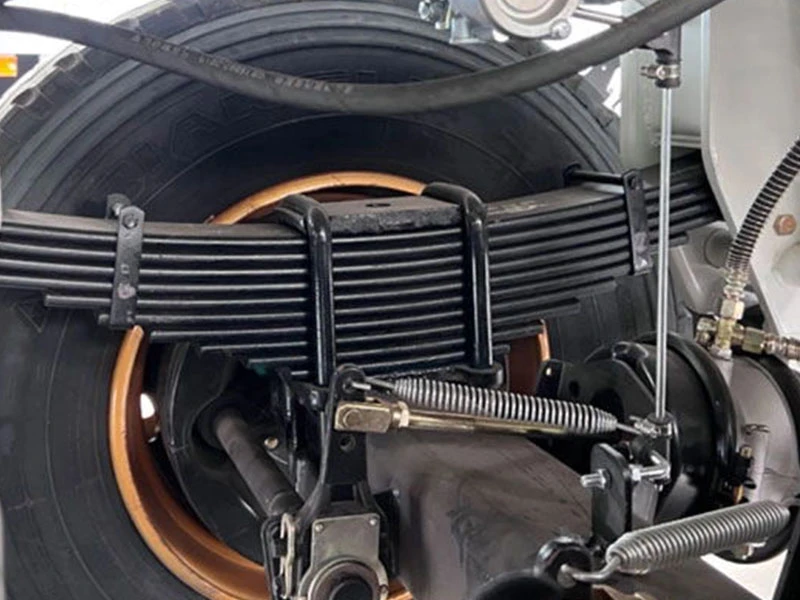

| Suspension – The suspension system (air or mechanical) helps absorb the shock from the road to provide a smooth ride and prevent damage to the load. |
|

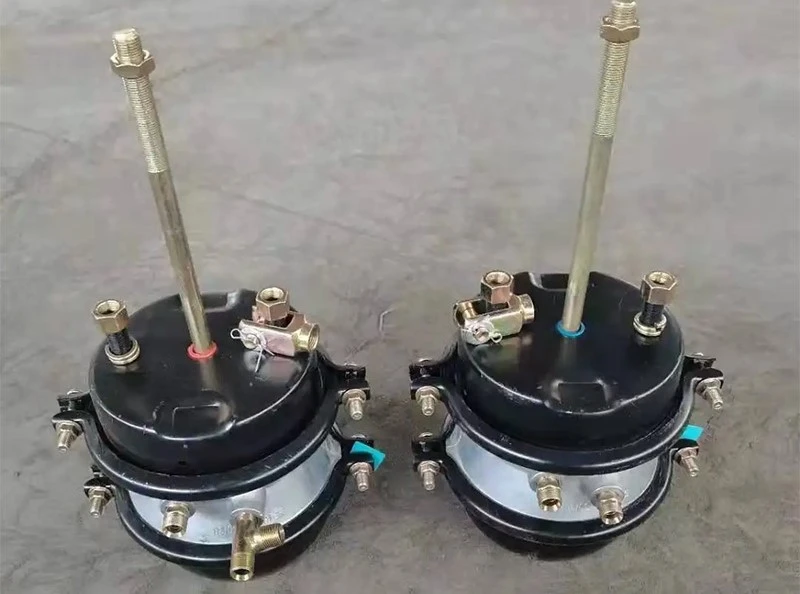

| Braking System – The braking system includes the brake drums, brake shoes, and air compressor that applies the brakes when the trailer stops. |  |

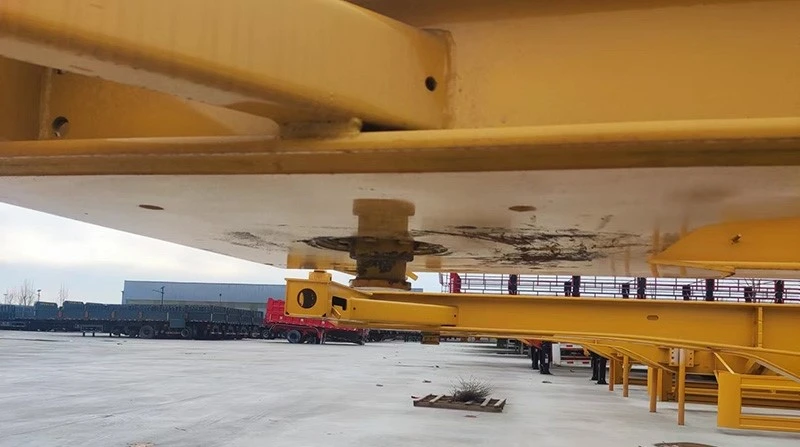

| Kingpin – This component connects the trailer to the towing vehicle or tractor unit. It fits into the fifth wheel coupling of the towing vehicle. |  |

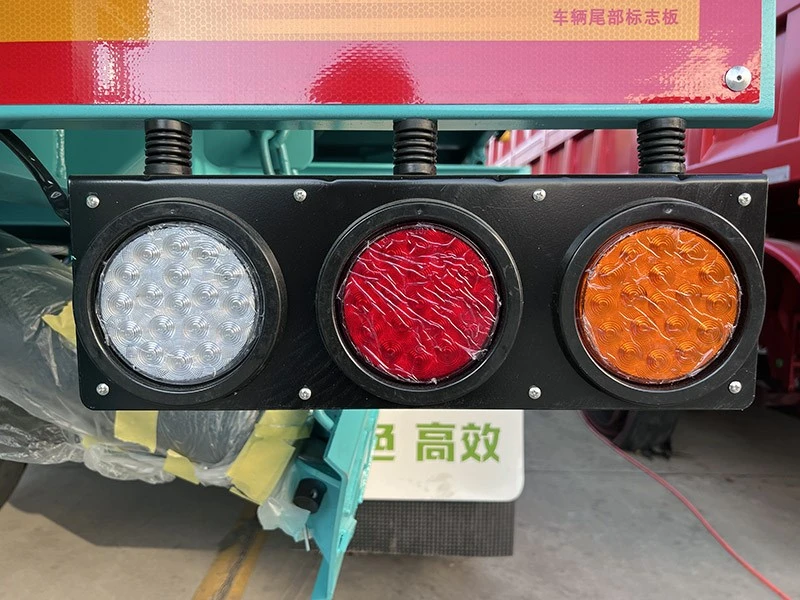

| Electrical System – This includes the lighting and wiring that provides power to the trailer's brake lights, turn signals, and running lights. |  |
Product Structure

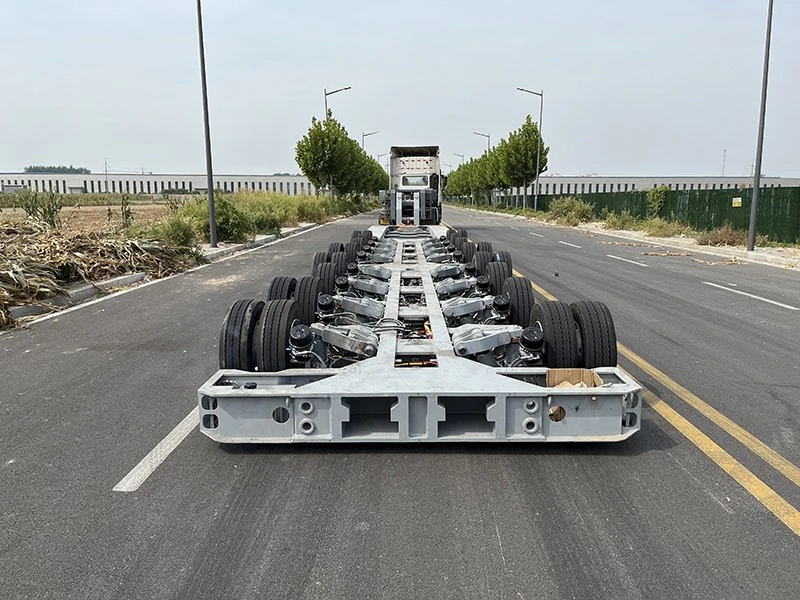

The body of the trailer is composed of the main longitudinal beam, beam and wing beam.The wing beam is used to fix the hydraulic independent suspension and bear the supporting force from the suspension. The beam is used to transfer the suspension support force borne by the wing SPAR to the main rail; The main longitudinal beam has sufficient longitudinal rigidity and strength to balance the load of goods and the force of each beam.
Product Advantage
1. Heavy duty ladder, and extra support to prevent ladder from being broken when loading equipment.
2. Optional hydraulic ladder to operate ramp with automatic support for more than 60 tons capacity,avoiding occupational injury when release ladder by manual operation.
3. Anti-slip strip on tail and rear of platform to ensure loading safely.
4. Optional landing gear under tail to ensure trailer to be stable when loading.
5. H-beam for side beam instead of channel steel.
6. Chassis with folding extensions to extend 172mm to 210mm Overall width, and movable ramps.
Specification
| Brand | Haoyue |
| Rated load capcity | 300,000KG Or Customized |
| Max loading capcity | 450,000KG Or Customized |
| Platform thickness | 50-60mm |
| Distance of axle | 1550mm |
| Distance of wheel | 740/1820mm |
| Axle | 15ton hydraulic steering axle |
| Tire | 7.50R15 tire triangle brand/Other |
| Braking system | Dual-pipes braking system, equipped with pneumatic type, parking brake system |
| Electrical System | Voltage: 24v/Receptacle: 7 ways(7 wire harness) |
| Color | Customized |
| Information | Picture |
| Voltage | 24v/Receptacle: 7 ways(7 wire harness) |
| Whatsapp/Tel | +86 191 0068 9141 |
| semitrailer@sdvehiclemaster.com |
Request a Quotation
Send us your destination port and any special requirements. Our team reviews the configuration and prepares a quotation.
