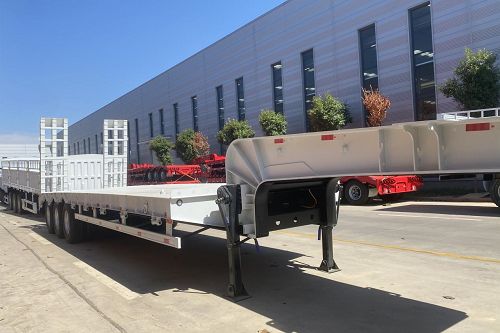

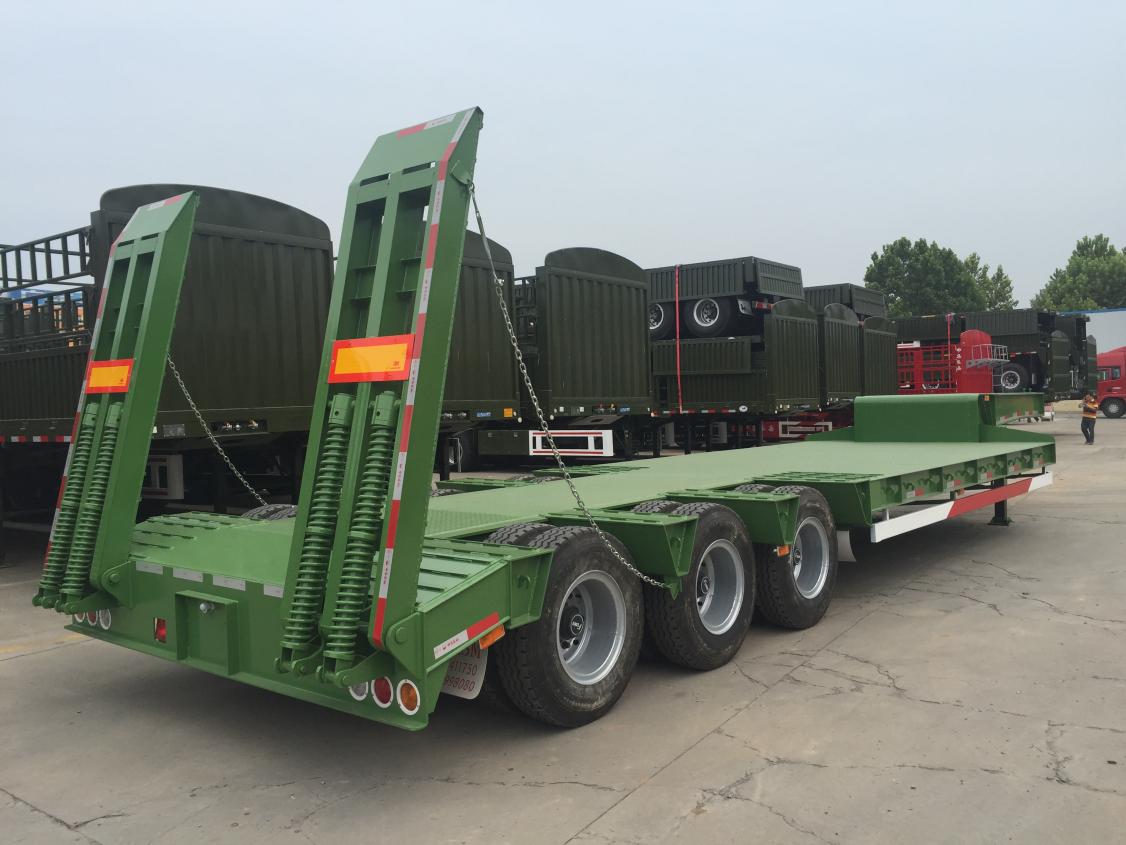

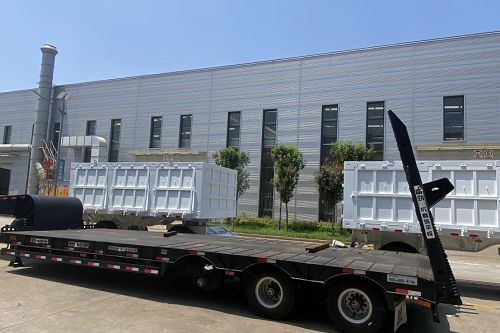

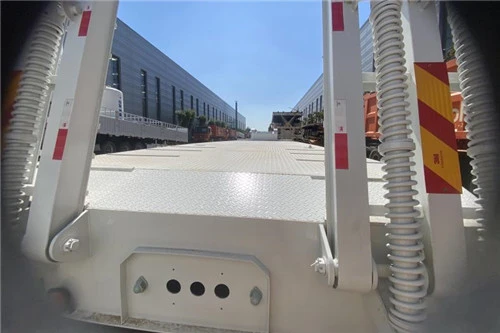

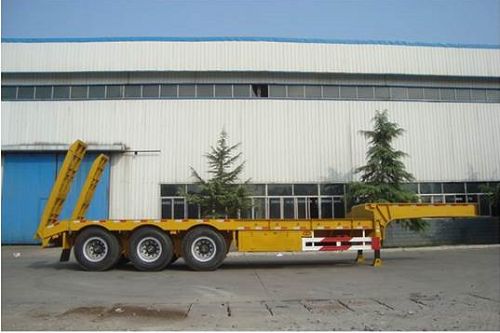

Semi Lowbed Trailer for Heavy Equipment Transport
Semi lowbed trailer has advanced technology and reliable performance. It is suitable for highway, railway, waterway and port transitional transportation, heavy duty vehicle and equipment transportation, and transportation of special materials.
Semi Lowbed Trailer
Semi lowbed trailer has advanced technology and reliable performance. It is suitable for highway, railway, waterway and port transitional transportation, heavy duty vehicle and equipment transportation, and transportation of special materials.
Parameter sheet for a Semi Lowbed Trailer
| Parameter | Description |
| Length (mm) | 13,600 |
| Width (mm) | 3,000 |
| Height (mm) | 1,750 |
| Gross vehicle weight (GVW) | 45,000 kg |
| Tare weight | 7,000 kg |
| Payload capacity | 38,000 kg |
| Axle load | 16,000 kg each |
| Wheelbase | 9,000 mm |
| Tire size | 295/60R22.5 |
|
Width of ramp (mm) |
750 (foldable) |
| Length of ramp (mm) | 3,000 (detachable) |
| brake system | Dual line air brake system |
| Emergency brake system | Spring brake |
| Lights | LED lights |
| Electrical | 7-pin electrical connector for trailers |
| Landing gear | JOST brand |
| Rear bumper | folding type |
| Toolbox | 1 unit |
| Spare tire carrier | 1 unit |
If you are interested in our Semi Lowbed Trailer, or you wanna know more infos, you can contact us.
Whatsapp/Tel:+86 191 0068 9141
Email:semitrailer@sdvehiclemaster.com
Feature
1. High quality steel, fine workmanship.
2. Three layers of baking paint, high quality circuit.
3. Double beam, high hardness, high load, low weight.
The Advantages of semi lowbed trailer
1. Easy loading and unloading: Semi lowbed trailers have a low center of gravity, which makes it easier to load and unload heavy and oversized cargo. This is because the cargo can be easily lowered onto the trailer without having to lift it high.
2. Greater versatility: Semi lowbed trailers are highly versatile and can be used to transport a wide range of cargo, including construction equipment, industrial machinery, and vehicles.
3. Improved safety: Semi lowbed trailers provide enhanced safety compared to other types of trailers because of their low center of gravity. This means that the cargo is less likely to shift during transport, reducing the risk of accidents on the road.
4. Increased payload capacity: Semi lowbed trailers have a higher payload capacity compared to other types of trailers. This is because of their unique design, which allows them to carry heavy and oversized cargo more efficiently.
5. Better fuel efficiency: Semi lowbed trailers are designed to be lighter, which means they require less fuel to transport cargo. This results in improved fuel efficiency and lower transportation costs.
Specification
| Length (mm) | 13,600 |
| Width (mm) | 3,000 |
| Height (mm) | 1,750 |
| Gross vehicle weight (GVW) | 45,000 kg |
| Tare weight | 7,000 kg |
| Payload capacity | 38,000 kg |
| Axle load | 16,000 kg each |
| Wheelbase | 9,000 mm |
| Tire size | 295/60R22.5 |
| Width of ramp (mm) | 750 (foldable) |
| Length of ramp (mm) | 3,000 (detachable) |
| brake system | Dual line air brake system |
| Emergency brake system | Spring brake |
| Lights | LED lights |
| Electrical | 7-pin electrical connector for trailers |
| Landing gear | JOST brand |
| Rear bumper | folding type |
| Toolbox | 1 unit |
| Spare tire carrier | 1 unit |
