Side Wall Truck Trailer · Side Wall Semi Trailer

2-Axle 60 Ton Side Wall Trailer

Haoyue's cargo side wall semi trailer is usually just called sidewall trailer or side wall semi trailer for short. The only difference between the side wall semi trailer and flatbed semi trailer is the side wall or side boards. Flatbed semi trailers don't have the side boards, while side wall semi trailers have them.

Request a Quote

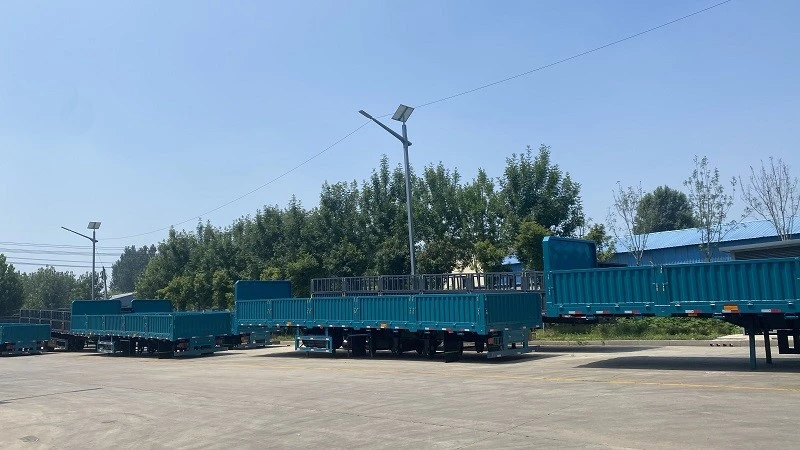

Side Wall Truck Trailer

Introduction

Parameter

Below is Haoyue's standard specification. Please let us know if anything needs customization.

2 Axles	3 Axles	4 Axles
Brand: Haoyue	Brand: Haoyue	Brand: Haoyue
Loading Capacity: 30-60T	Loading Capacity: 30-80T	Loading Capacity: 40-100T
Gooseneck Type: Optional	Gooseneck Type: Optional	Gooseneck Type: Optional
Main Beam
Material: Q345/T700	Main Beam Material: Q345/T700	Main Beam Material: Q345/T700
Upper Plate Thickness: 12mm	Upper Plate Thickness: 16mm	Upper Plate Thickness: 18mm
Middle Plate Thickness: 6mm	Middle Plate Thickness: 10mm	Middle Plate Thickness: 12mm
Lower Plate Thickness: 14mm	Lower Plate Thickness: 18mm	Lower Plate Thickness: 20mm
Main Beam Height: 500mm	Main Beam Height: 500mm	Main Beam Height: 500mm
Product Size
LW: 13000mm2550mm	LW: 13000mm2550mm	LW: 13000mm2550mm
Side Wall Height: 600mm-1700mm	Side Wall Height: 600mm-1700mm	Side Wall Height: 600mm-1700mm
Axle
2 Axles *13 Ton Haoyue/FUWA/BPW/Other	3 Axles *13/16 Ton Haoyue/FUWA/BPW/Other	4 Axles *13/16 Ton Haoyue/FUWA/BPW/Other
Tire
12R22.5 (8 Pieces) Linglong/Triangle/Double-Coin/ Bridgestone/Other Brand	12R22.5 (12 Pieces) Linglong/Triangle/Double Coin/ Bridgestone/Other Brand	12R22.5 (16 Pieces) Linglong/Triangle/Double-Coin/ Bridgestone/Other Brand
Rim
9.00*22.5 (8 Pieces) Steel/Aluminum	9.0*22.5 (12 Pieces) Steel/Aluminum	9.00*22.5 (16 Pieces) Steel/Aluminum
Leaf Spring
90mm13mm10/90mm16mm10Pcs	90mm13mm10/90mm16mm10Pcs	90mm13mm10/90mm16mm10Pcs
King Pin
#50(2")/#90(3.5"), JOST/Other Brand	#50(2")/#90(3.5"), JOST/Other Brand	#50(2")/#90(3.5"), JOST/Other Brand
Landing Gear
28 Tons Two Speed JOST/Other Brand	28 Tons Two Speed JOST/Other Brand	28 Tons Two Speed JOST/Other Brand
Vehicle Painting
Electrophoresis painting	Electrophoresis painting	Electrophoresis painting

If you are interested in our Side Wall Truck Trailer or you wanna know more infos, you can contact us.

Whatsapp/Tel:+86 191 0068 9141
Email:semitrailer@sdvehiclemaster.com

Side Wall Truck Trailer

The Advance Process

Process

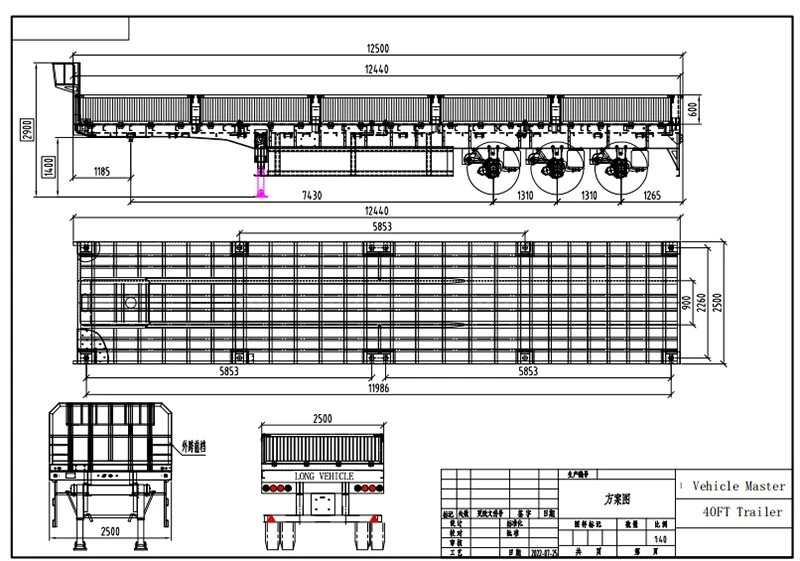

Design Drawing:

Before production, we will sent the design drawing to our customer to confirm the detail of the vehicle. We hope we can supply the most suitable product to our customer.

Side Wall Truck Trailer

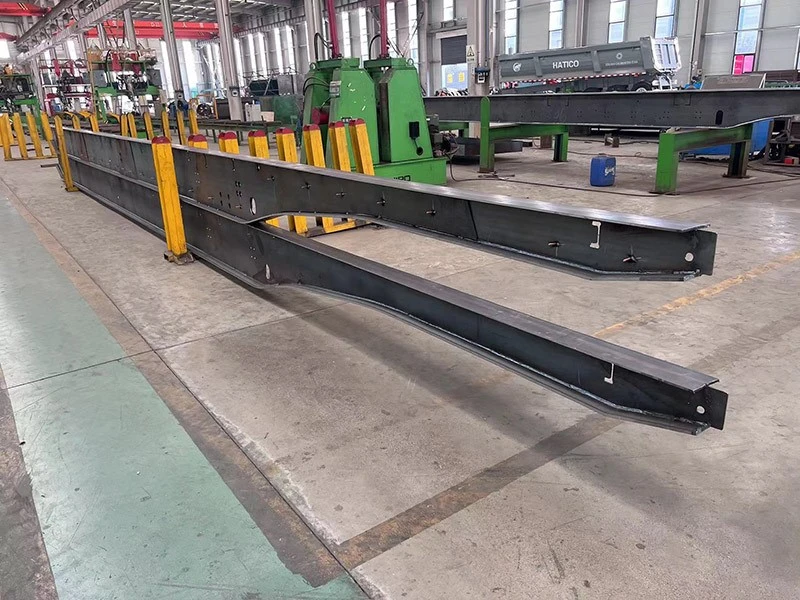

Cutting and Welding:

The I beam cutting adopt the Computer Numerical Control Plasma Cutting Machine. The I beam welding adopt the Gantry Main Sill Welding Machine.

Side Wall Truck Trailer

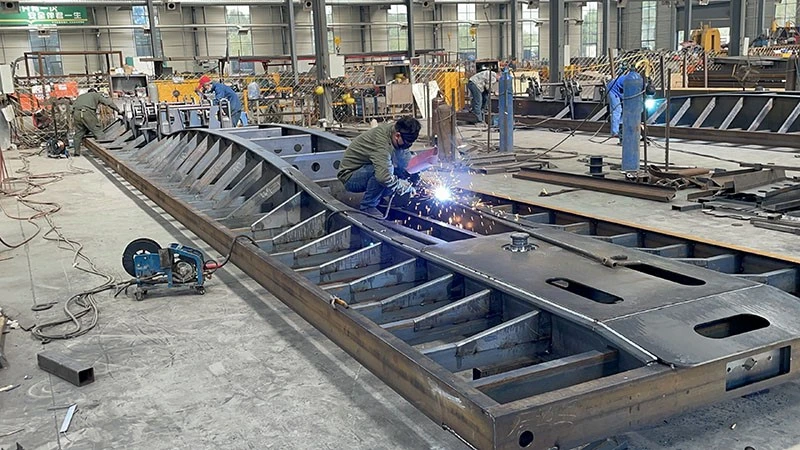

The Beam Welding:

Main beam and side beam all use I-shaped beam, it can ensure the trailer more durable.Reinforced rear plate can avoid the rear plate was broken away when heavy duty machines climbing the ramp of trailer.

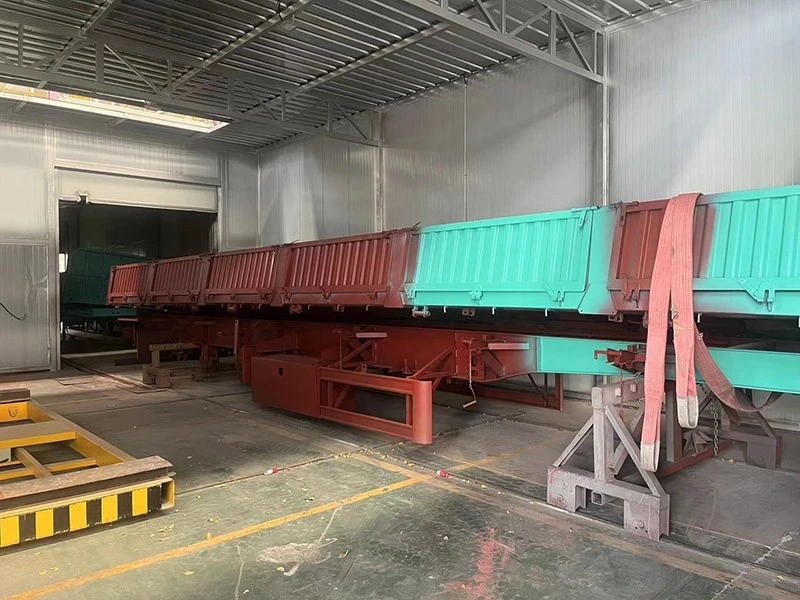

Surface Treatment:

In order to remove the rust of the trailer body, we use the sand blasting to retreat the surface of the trailer. The trailer can have the beautiful appearance,the painting will be coating evenly, firm adhension, gloss more durable

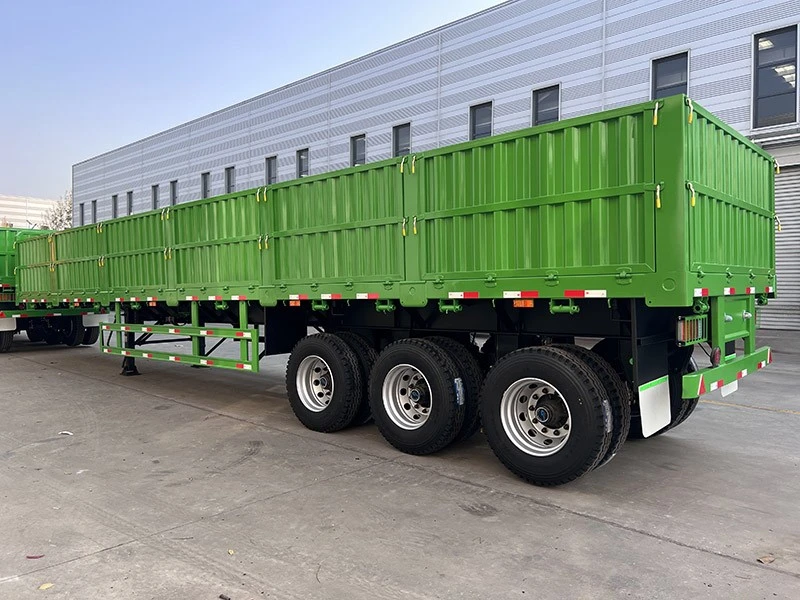

sidewall7

Painting:

One layer of the anti-rust painting, two layer of painting

Test:

We will test the quality of the trailer before delivery.

Side Wall Truck Trailer

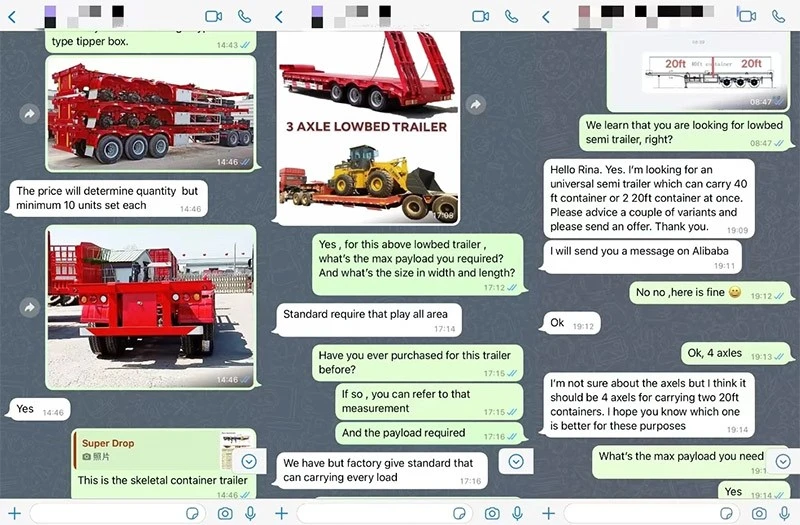

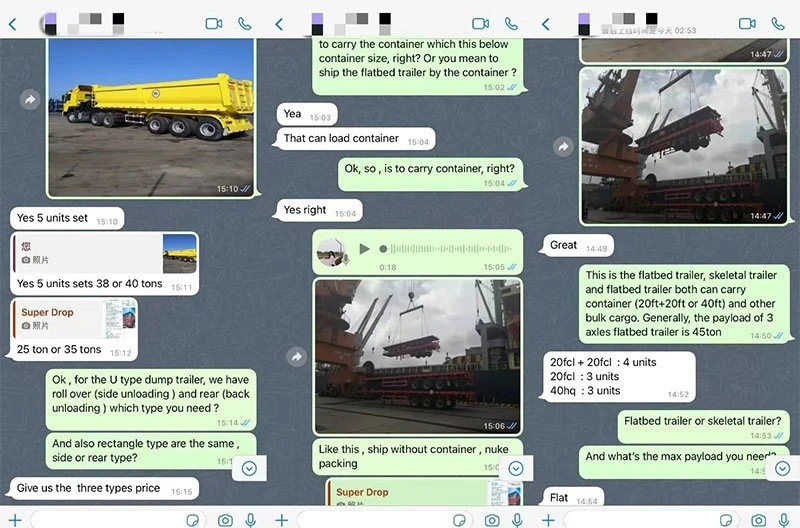

Customers Feedback

Our customers have provided positive feedback on the Side Wall Truck Trailer. They have expressed that the trailer is well-built and durable, allowing them to safely transport goods with ease. The side walls provide extra security for the cargo, preventing any potential damage. Customers have also mentioned that the trailer is easy to load and unload, saving them time and effort during the transportation process.

Furthermore, customers have praised the trailer's versatility, as it can be used for a variety of purposes such as transporting construction materials, furniture, or even livestock. The spacious interior provides ample room for large or bulky items to be transported without any issues.

Side Wall Truck Trailer

Advantage

Our company, Side Wall Trailer, specializes in manufacturing a wide range of semi-trailers for transportation needs. With advanced technology and strict quality control, Side Wall Trailer provides premium trailers with exceptional durability and low maintenance costs.

Our robust and strong lightweight trailers are designed to offer maximum safety and security while providing great capacity and loading efficiency. Our trailers are made with premium grade double-sided steel which is both stylish and durable. Furthermore, all our trailer components are produced in-house, ensuring the tightest quality control measures and excellent value for money.

Our unique trailers are constructed with a lowered deck to allow easy side and rear access, making loading and unloading much easier. Side and rear opening doors, internal lighting and an additional side flap are all features of our standard trailer.

We guarantee that our trailers are built to last and we provide comprehensive after-sales support and spare parts. Customer service has always been a high priority for us and we will continue to provide the highest levels of customer service and satisfaction.

Side Wall Truck Trailer

FAQ

Q1. Are you a factory or trading company?

We are a comprehensive factory integrating product design, scientific research and development, production and sales. So we know what you're looking for. Welcome to our factory and production line at any time.
Q2. Could you accept special design and specification?

Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM, etc.
Q3. Are you looking for an agent?

Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. Do you have stock?

Yes we have a few stock in our warehouse for your urgent order, but the main design already finished, the only we can change are some of the spare parts such like tires, axles, stickers, painting etc.
Q5. How to control quality?

We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Specification

2 Axles	3 Axles 4 Axles
Brand: Haoyue	Brand: Haoyue Brand: Haoyue
Loading Capacity: 30-60T	Loading Capacity: 30-80T Loading Capacity: 40-100T
Gooseneck Type: Optional	Gooseneck Type: Optional Gooseneck Type: Optional
Material: Q345/T700	Main Beam Material: Q345/T700 Main Beam Material: Q345/T700
Upper Plate Thickness: 12mm	Upper Plate Thickness: 16mm Upper Plate Thickness: 18mm
Middle Plate Thickness: 6mm	Middle Plate Thickness: 10mm Middle Plate Thickness: 12mm
Lower Plate Thickness: 14mm	Lower Plate Thickness: 18mm Lower Plate Thickness: 20mm
Main Beam Height: 500mm	Main Beam Height: 500mm Main Beam Height: 500mm
LW: 13000mm2550mm	LW: 13000mm2550mm LW: 13000mm2550mm
Side Wall Height: 600mm-1700mm	Side Wall Height: 600mm-1700mm Side Wall Height: 600mm-1700mm
2 Axles *13 Ton Haoyue/FUWA/BPW/Other	3 Axles 13/16 Ton Haoyue/FUWA/BPW/Other 4 Axles 13/16 Ton Haoyue/FUWA/BPW/Other
9.00*22.5 (8 Pieces) Steel/Aluminum	9.022.5 (12 Pieces) Steel/Aluminum 9.0022.5 (16 Pieces) Steel/Aluminum
90mm13mm10/90mm16mm10Pcs	90mm13mm10/90mm16mm10Pcs 90mm13mm10/90mm16mm10Pcs
#50(2")/#90(3.5"), JOST/Other Brand	#50(2")/#90(3.5"), JOST/Other Brand #50(2")/#90(3.5"), JOST/Other Brand
28 Tons Two Speed JOST/Other Brand	28 Tons Two Speed JOST/Other Brand 28 Tons Two Speed JOST/Other Brand
Electrophoresis painting	Electrophoresis painting Electrophoresis painting
Process	Picture
Brand	Haoyue
Loading Capacity	30-60T
Loading Capacity	30-80T
Loading Capacity	40-100T
Gooseneck Type	Optional
Material	Q345/T700
Main Beam Material	Q345/T700
Upper Plate Thickness	12mm
Upper Plate Thickness	16mm
Upper Plate Thickness	18mm
Middle Plate Thickness	6mm
Middle Plate Thickness	10mm
Middle Plate Thickness	12mm
Lower Plate Thickness	14mm
Lower Plate Thickness	18mm
Lower Plate Thickness	20mm
Main Beam Height	500mm
L*W	13000mm*2550mm
Side Wall Height	600mm-1700mm
Whatsapp/Tel	+86 191 0068 9141
Email	semitrailer@sdvehiclemaster.com

Configuration options to discuss

Side Wall Semi Trailer options below are described at product-family level in the 2025 catalogue. They are not a list of equipment automatically included with this model.

Discuss body layout and loading access
Specify cargo dimensions and loading arrangement
OEM, CKD and SKD cooperation

What cargo details help choose a side-wall trailer?

Provide the cargo dimensions, weight, packaging and intended loading method. The quotation can then identify the appropriate body and axle configuration.

For a quotation, include the cargo, dimensions, loaded weight, loading method, quantity and destination. Ask for the documents applicable to the agreed configuration.

Source: Vehicle Master Product Catalog 2025, PDF pages 16–18. Catalogue configurations are references; confirm the specification and documents for your selected order.
