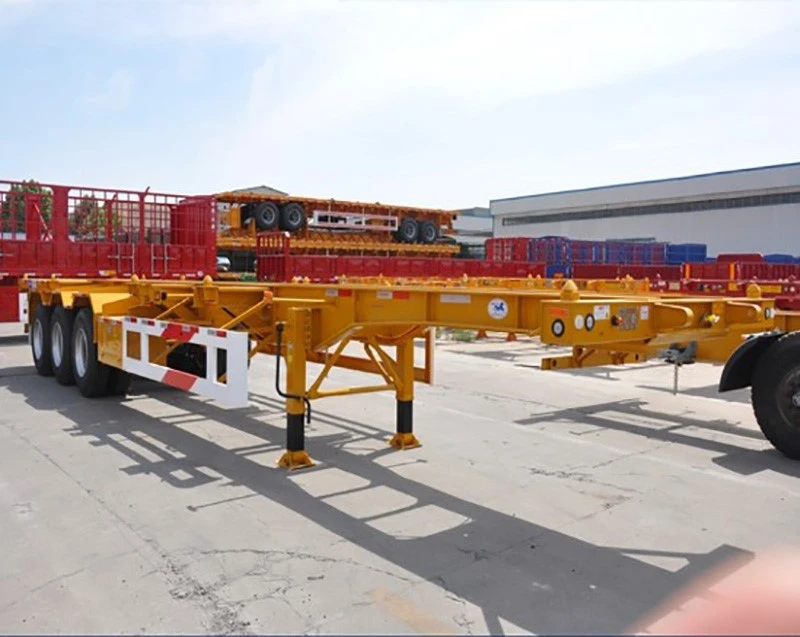

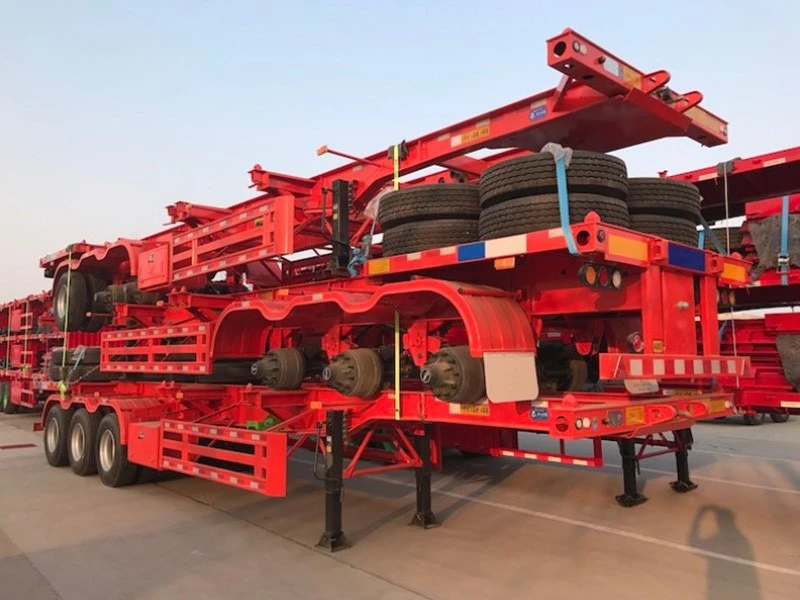

3-Axle 28 Ton 20ft Skeleton Container Trailer

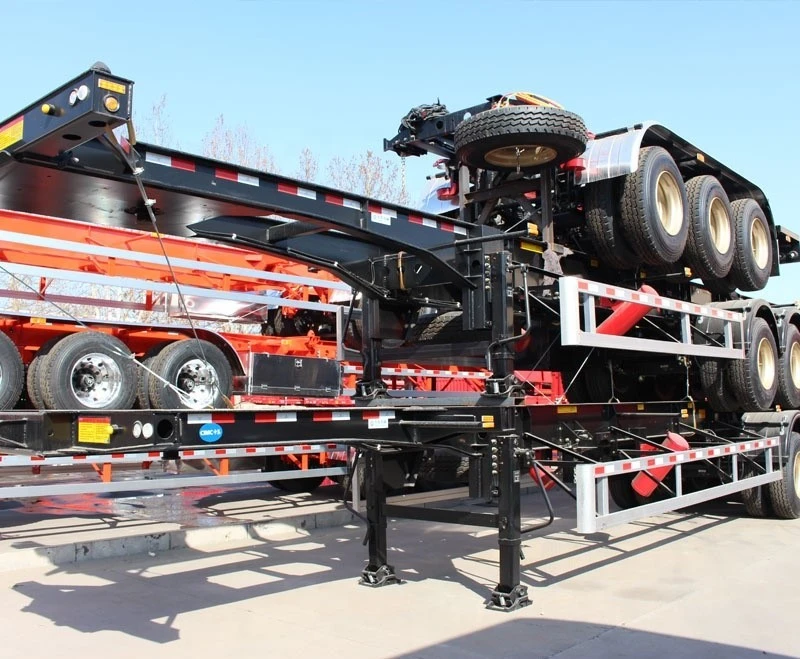

The Skeleton Semi-trailer is a semi-trailer whose frame is welded with the aid of longitudinal beams, beams and the front and rear beams. It is comparable in look to a flatbed semi-trailer, however the body is used as an alternative of the metal plate. Viewed from the pinnacle of the body, its backside is exposed.

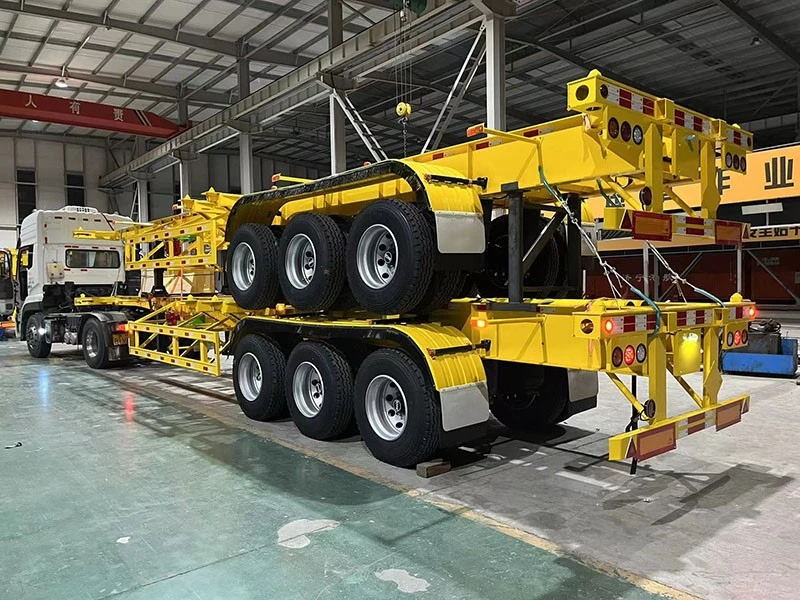

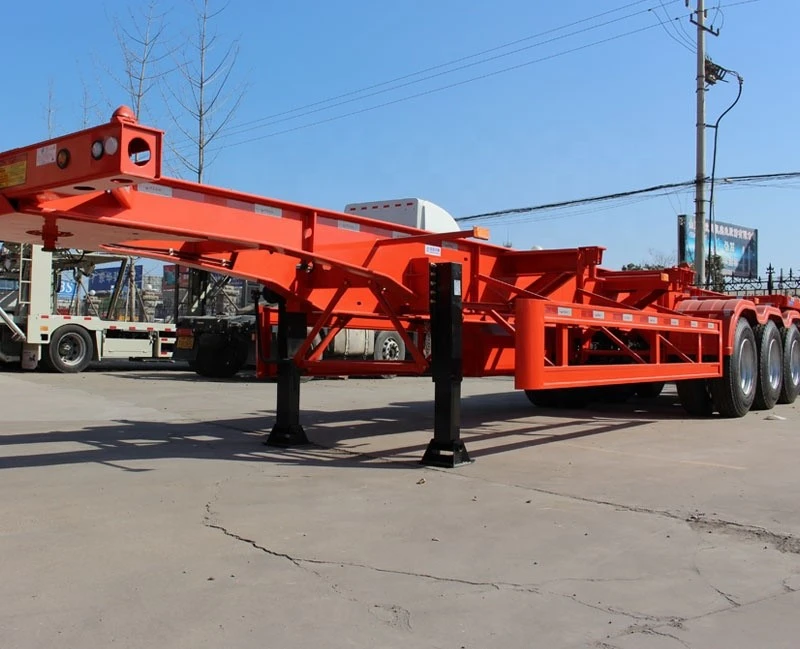

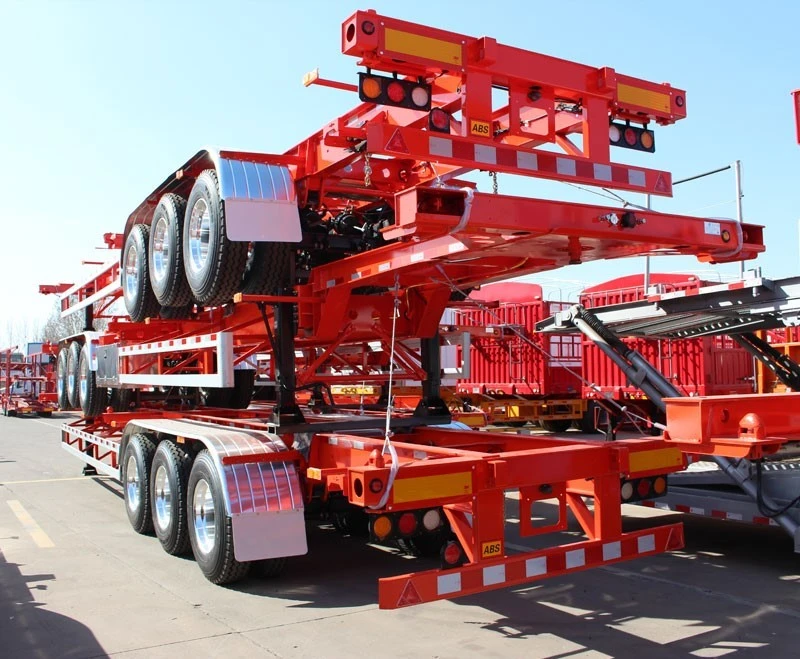

Skeleton Semi-trailer
Introduction
The Skeleton Semi-trailer is a semi-trailer whose frame is welded with the aid of longitudinal beams, beams and the front and rear beams. It is comparable in look to a flatbed semi-trailer, however the body is used as an alternative of the metal plate. Viewed from the pinnacle of the body, its backside is exposed.
Specification of Skeleton Semi-trailer
|
Length |
20 Ft |
40 Ft |
45 Ft |
|
Axles |
2 Axles/3 Axles |
3 Axles/4 Axles |
3 Axles/4 Axles |
|
Capacity |
20-50 Tons |
30-80 Tons |
30-80 Tons |
|
Beam Style |
Goose/Tandem |
Goose/Tandem |
Goose/Tandem |
|
Paint |
Electrophoresis |
Electrophoresis |
Electrophoresis |
|
Main Beam |
|||
|
Material |
Q345/T700 |
Q345/T700 |
T700 |
|
Upper Plate |
12mm |
14mm |
10mm |
|
Middle Plate |
6mm |
6mm |
5mm |
|
Lower Plate |
12mm |
16mm |
10mm |
|
Beam Height |
500mm |
500mm |
420mm |
|
Trailer Dimension |
|||
|
L 7000mm |
L 12400mm |
L 13950mm |
|
|
W 2480mm |
W 2480mm |
W 2500mm |
|
|
H 1560mm |
H 1580mm |
H 1600mm |
|
|
Axles |
|||
|
Capacity |
2/3 Axles 13T |
3/4Axles 13T |
3/4 Axles 13T |
|
Brand |
FUWA/BPW |
FUWA/BPW |
FUWA/BPW |
|
Tire |
12R22.5 |
12R22.5 |
12R22.5 |
|
(8/12 Pieces) |
(8/12 Pieces) |
(8/12 Pieces) |
|
|
Rim |
9.00*22.5 |
9.00*22.5 |
9.00*22.5 |
|
(8/12 Pieces) |
(12/16 Pieces) |
(12/16 Pieces) |
|
|
Steel/Aluminum |
Steel/Aluminum |
Steel/Aluminum |
|
|
Leaf Spring |
90mm*13mm |
90mm*13mm |
90mm*13mm |
|
90mm*16mm |
90mm*16mm |
90mm*16mm |
|
|
10 Pcs |
10 Pcs |
10 Pcs |
|
|
King Pin |
2″/3.5″JOST |
2″/3.5″JOST |
2″/3.5″JOST |
|
Landing Gear |
28 Tons JOST |
28 Tons JOST |
28 Tons JOST |
|
Two Speed |
Two Speed |
Two Speed |
|
|
Twist Lock |
4 Sets |
12 Sets |
12 Sets |
If you are interested in our Skeleton Semi-trailer or you wanna know more infos, you can contact us.
Whatsapp/Tel:+86 191 0068 9141
Email:semitrailer@sdvehiclemaster.com
Product Details
| Description | Picture |
|

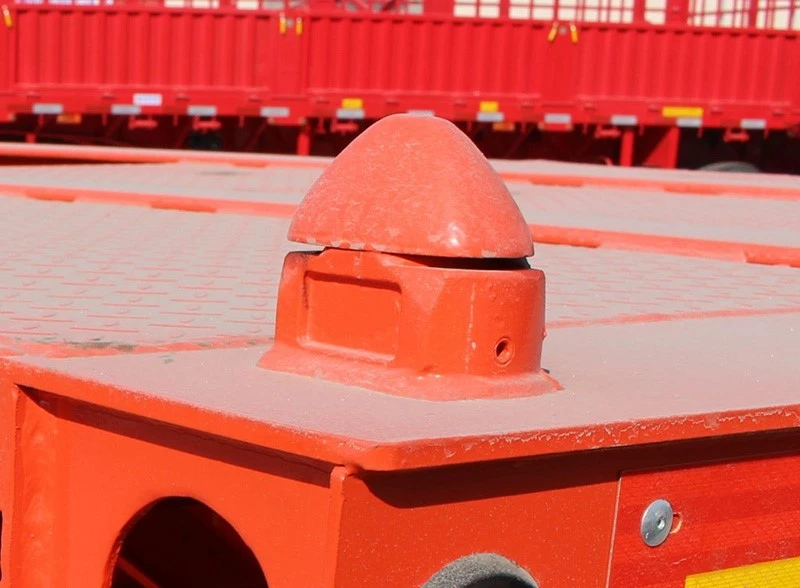

Twist Lock Haoyue’s twist locks are durable with unique design, which ensures the stability of containers and ease of loading and unloading. |
 |
|

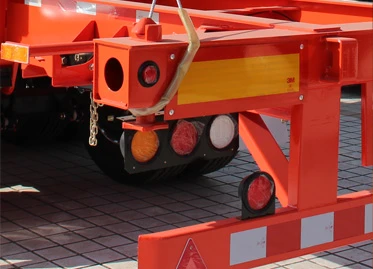

Moisture-proof LED Lamps Moisture-proof LED lamps are equipped to prevent short circuits and ensure the safety of vehicle transportation at night |
 |
|

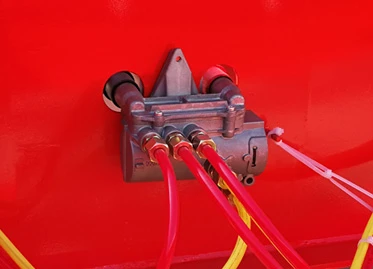

Copper Connector All the connectors of electrical and gas circuits are made of copper with metal seal so there will be no rust or air leakage. |
 |
|

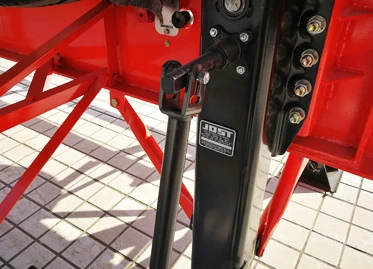

Landing Gear Haoyue or JOST landing gear can be optioned made in aluminum or steel; designed to work under both high and low temperature in the range of -30℃ to 120 ℃. |
 |
|

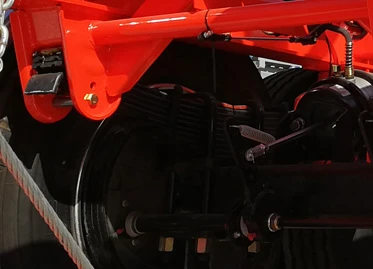

Anti-Tire Abrasion Suspension Specially designed anti-Tire abrasion suspension system, prevent tire offset after loading, maximally avoid tire abrasion. Meanwhile, Easy to disassemble and maintain. |
 |
Production Process
Welding Process Compared with manual welding, laptop welding has larger constant product quality, and there will be no fine errors due to the mood and state of human welders. The quality consistency is larger and the effectivity is higher. Efficiency is time, and time is money. At present, submerged arc computerized welding is in most instances used for semi-trailer girders, the region the welding is uniform, the welding penetration is better, and the ground of the welding seam is free of pores and inclusions. The flooring is extraordinary and smooth.
Coating Process
Skeleton Semi-trailer can ultimate for as lengthy as 7 years. At the same time, the paint utilization cost of the electrophoresis manner is greater than 95%, which is more environmentally friendly. It can even acquire a manufacturing cycle of a quantity of minutes. In phrases of automobile purchase cost, electrophoretic paint on the market is commonly greater high-priced than ordinary paint in the equal configuration.
Usage
Usually, skeleton semi-trailers can be used to transport containers, such as in ships, ports, routes, highways, transfer stations, bridges, tunnels and other logistics systems.
Advantages of Skeleton Semi-trailer
Skeleton Semi-trailer ppreciably simplifies the loading and unloading operations and makes mechanization of loading and unloading possible. The reloading of containers usually takes solely a few minutes, which shortens the ready time for loading and unloading, improves labor productivity, and speeds up the turnover of items and transportation tools.
FAQ
The 2025 catalogue describes 24-hour online/phone service and a 1-year warranty on the main parts of the semi-trailer. Response timing, covered parts and order terms should be confirmed for your enquiry.
Specification
| Length | 20 Ft 40 Ft 45 Ft |
| Axles | 2 Axles/3 Axles 3 Axles/4 Axles 3 Axles/4 Axles |
| Capacity | 20-50 Tons 30-80 Tons 30-80 Tons |
| Beam Style | Goose/Tandem Goose/Tandem Goose/Tandem |
| Paint | Electrophoresis Electrophoresis Electrophoresis |
| Material | Q345/T700 Q345/T700 T700 |
| Upper Plate | 12mm 14mm 10mm |
| Middle Plate | 6mm 6mm 5mm |
| Lower Plate | 12mm 16mm 10mm |
| Beam Height | 500mm 500mm 420mm |
| Capacity | 2/3 Axles 13T 3/4Axles 13T 3/4 Axles 13T |
| Brand | FUWA/BPW FUWA/BPW FUWA/BPW |
| Tire | 12R22.5 12R22.5 12R22.5 |
| (8/12 Pieces) | (8/12 Pieces) (8/12 Pieces) |
| Rim | 9.00*22.5 9.00*22.5 9.00*22.5 |
| (8/12 Pieces) | (12/16 Pieces) (12/16 Pieces) |
| Leaf Spring | 90mm*13mm 90mm*13mm 90mm*13mm |
| 90mm*16mm | 90mm*16mm 90mm*16mm |
| 10 Pcs | 10 Pcs 10 Pcs |
| King Pin | 2″/3.5″JOST 2″/3.5″JOST 2″/3.5″JOST |
| Landing Gear | 28 Tons JOST 28 Tons JOST 28 Tons JOST |
| Two Speed | Two Speed Two Speed |
| Twist Lock | 4 Sets 12 Sets 12 Sets |
| Description | Picture |
| Whatsapp/Tel | +86 191 0068 9141 |
| semitrailer@sdvehiclemaster.com |
Request a Quotation
Send us your destination port and any special requirements. Our team reviews the configuration and prepares a quotation.
