30-80 Ton Skeleton Truck Semi Trailer for Sale
The Skeleton Truck Trailer is a specialized type of trailer used in the transportation industry. With its skeletal structure and open design, it can efficiently transport different types of cargo, including shipping containers, palletized goods, and heavy loads. Its durable construction and weight distribution capabilities make it an essential tool for…

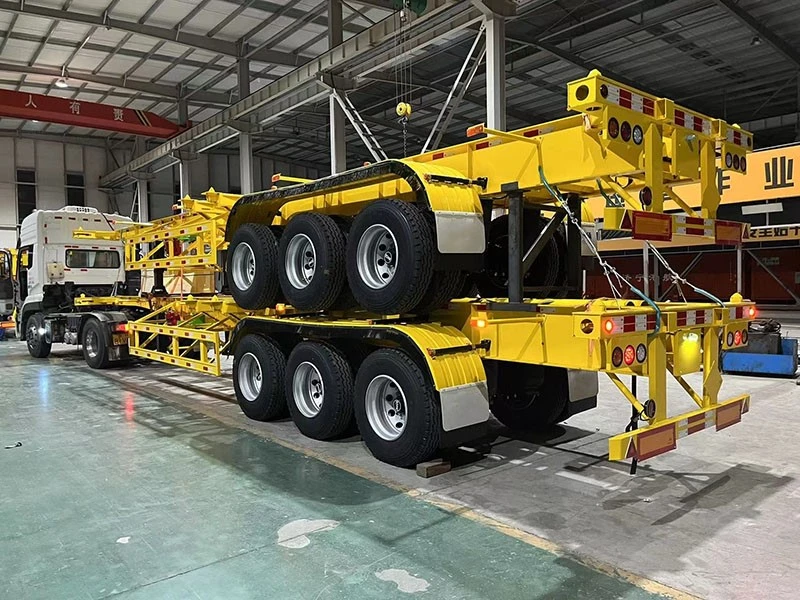

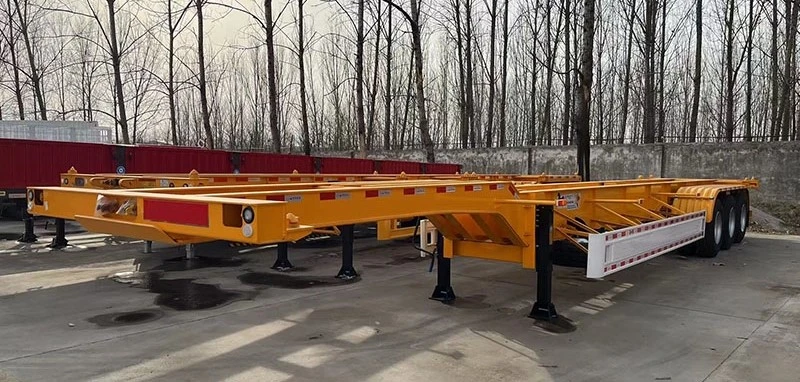

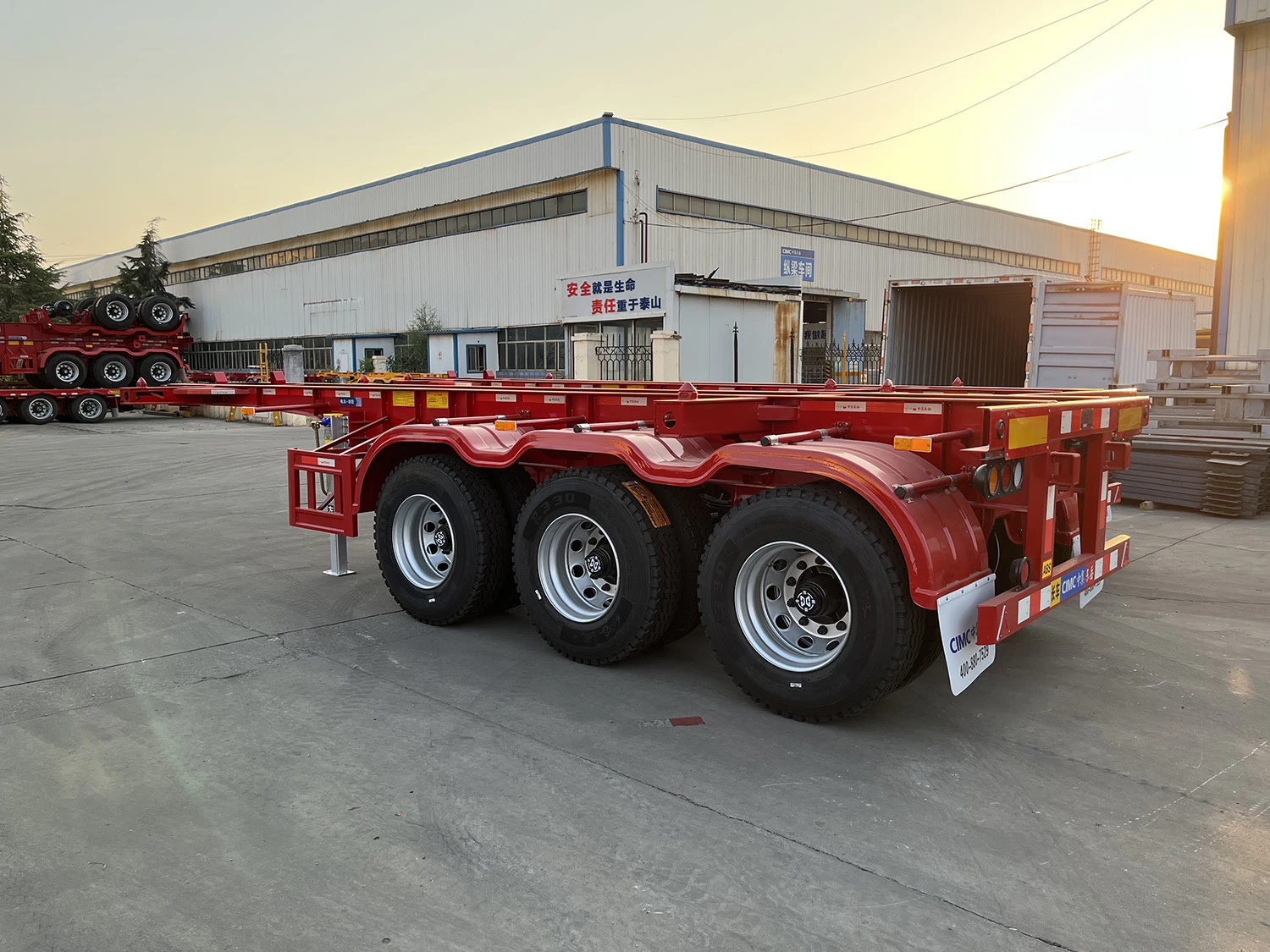

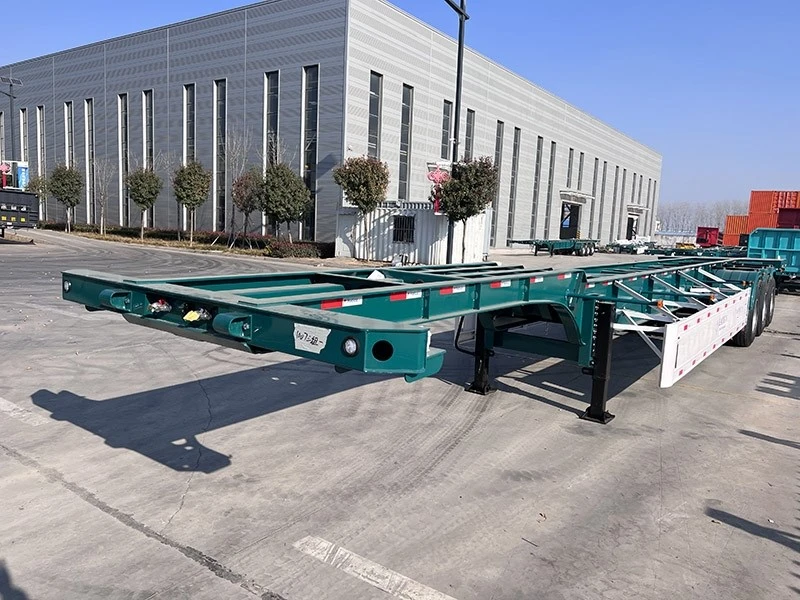

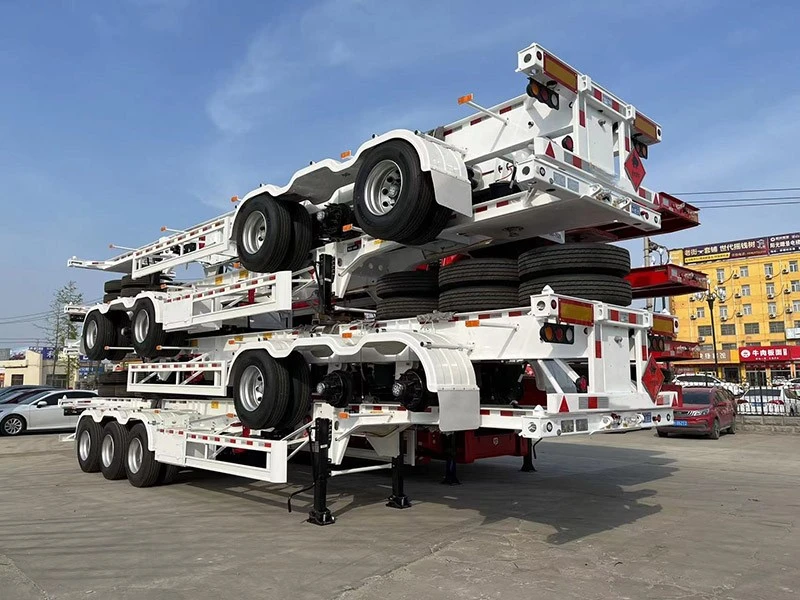

Skeleton Truck Trailer
Introduction
The Skeleton Truck Trailer is a specialized type of trailer used in the transportation industry. With its skeletal structure and open design, it can efficiently transport different types of cargo, including shipping containers, palletized goods, and heavy loads. Its durable construction and weight distribution capabilities make it an essential tool for hauling various types of cargo safely and efficiently.
Parameters of a skeleton truck trailer
|
20FT Skeleton Semi Trailer
|
40FT Skeleton Semi Trailer
|
45FT Skeleton Semi Trailer
|
|
Brand: Haoyue
|
Brand: Haoyue
|
Brand: Haoyue
|
|
2 Axles/3 Axles
|
3 Axles/ 4 Axles
|
3 Axles/ 4 Axles
|
|
20ft Container Loading
|
1*40ft/2*20ft Container Loading
|
1*45ft/1*40ft/2*20ft Container
Loading
|
|
Loading Capacity: 20-50 Tons
|
Loading Capacity: 30-80 Tons
|
Loading Capacity: 30-80 Tons
|
|
Type: Gooseneck or Tandem
|
Type: Gooseneck or Tandem
|
Type: Gooseneck or Tandem
|
|
Main Beam
|
||
|
Material: Q345/T700
|
Material: Q345/T700 |
Material: T700
|
|
Upper Plate Thickness: 12mm
|
Upper Plate Thickness: 14mm
|
Upper Plate Thickness: 10mm
|
|
Middle Plate Thickness: 6mm
|
Middle Plate Thickness: 6mm
|
Middle Plate Thickness: 5mm
|
|
Lower Plate Thickness: 12mm
|
Lower Plate Thickness: 16mm
|
Lower Plate Thickness: 10mm
|
|
Height: 500mm
|
Height: 500mm
|
Height: 420mm
|
|
Dimension
|
||
|
L*W*H: 7000mm*2480mm*1560mm
|
L*W*H: 12400mm*2480mm*1580mm
|
L*W*H: 13950mm*2500mm*1600mm
|
|
Axle
|
||
|
2/3 Axles *13 Ton
VEHCILE MASTER/FUWA/BPW
|
3/4 Axles *13 Ton
VEHCILE MASTER/FUWA/BPW
|
3/4 Axles *13/16 Ton
VEHCILE MASTER/FUWA/BPW
|
|
Tire
|
||
|
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double
Coin/Bridgestone
|
12R22.5 (12/16 Pieces)
Linglong/Triangle/Double
Coin/Bridgestone
|
12R22.5 (12/16 Pieces)
Linglong/Triangle/Double
Coin/Bridgestone
|
|
Rim
|
||
|
9.00*22.5 (8/12 Pieces)
Steel/Aluminum
|
9.0*22.5 (12/16 Pieces)
Steel/Aluminum
|
9.00*22.5 (12/16 Pieces)
Steel/Aluminum
|
|
Leaf Spring
|
||
|
90mm*13mm*10 Pieces
90mm*16mm*10 Pieces
|
90mm*13mm*10 Pieces
90mm*16mm*10 Pieces
|
90mm*13mm*10 Pieces
90mm*16mm*10 Pieces
|
|
King Pin
|
||
|
#50 (2")/#90 (3.5")
JOST/Other Brand
|
#50 (2")/#90 (3.5")
JOST/Other Brand
|
#50 (2")/#90 (3.5")
JOST/Other Brand
|
|
Landing Gear
|
||
|
28 Tons Two Speed
JOST/Other Brand
|
28 Tons Two Speed
JOST/Other Brand
|
28 Tons Two Speed
JOST/Other Brand
|
|
Twist Lock
|
||
|
4 Sets
|
12 Sets
|
12 Sets
|
|
Painting
|
||
|
Electrophoresis Painting
|
Electrophoresis Painting
|
Electrophoresis Painting
|
If you are interested in our semi trailer, or you wanna know more infos, you can contact us.
Whatsapp/Tel:+86 191 0068 9141
Email:semitrailer@sdvehiclemaster.com
Product Details
| Description | Picture |
|
Landing Gear: Haoyue or JOST landing gear can be optioned made in aluminum or steel; designed to work under both high and low temperature in the range of -30℃ to 120 ℃. |
 |
|
Anti-Tire Abrasion Suspension: Specially designed anti-Tire abrasion suspension system, prevent tire offset after loading, maximally avoid tire abrasion. Meanwhile, Easy to disassemble and maintain. |
 |
|
Twist Lock： Haoyue’s twist locks are durable with unique design, which ensures the stability of containers and ease of loading and unloading. |
 |
|
Moisture-proof LED Lamps: Moisture-proof LED lamps are equipped to prevent short circuits and ensure the safety of vehicle transportation at night |
 |
|
Copper Connector: All the connectors of electrical and gas circuits are made of copper with metal seal so there will be no rust or air leakage. |
 |
Skeleton Truck Trailer's application range
Skeleton truck trailers are extensively used in the transportation industry for carrying cargo, usually containers. Here are the common application range of skeleton truck trailers
Shipping Container Transportation: They are commonly used in transporting dry and refrigerated containers to and from ports.
Intermodal Logistics: They are suitable for intermodal logistics, allowing containers to be easily transferred onto other modes of transportation like rail, ships, or barges.
Construction Projects: They can be used to transport construction materials, such as steel bars, pipes, and timber.
Machinery and Equipment: They are also perfect for transporting heavy machinery, equipment, and vehicles.
Bulk Cargo: They are ideal for transporting bulk cargo such as gravel, soil, and sand.
Agricultural Products: They can be used in transporting large volumes of agricultural products such as fruits, vegetables, and grains.
Warehousing and Distribution: They can be used for warehousing and distribution of bulk cargo before transporting the cargo to various destinations.
Skeleton truck trailers are highly versatile and can be used for various types of cargo, making them a popular choice for the transportation industry.
Packing & Shipping
Cargo preparation: Ensure that the cargo is properly packaged and secured according to international shipping standards. If you are transporting shipping containers, make sure they are sealed, and the contents are properly loaded and secured within the container.
Book a freight forwarder: Find a reputable freight forwarder experienced in handling international shipments. Provide them with all relevant details, including the dimensions and weight of the Skeleton Truck Trailer, as well as any specific requirements or restrictions.
Select a shipping container (if applicable): If the Skeleton Truck Trailer is being shipped in a container, choose the appropriate container size and type. Common options include 20-foot or 40-foot standard or high cube containers. Make sure the container is in good condition and meets all necessary shipping requirements.
Secure cargo and load onto trailer/container: Ensure that the cargo is properly secured within the Skeleton Truck Trailer or container. Use appropriate load restraints to prevent shifting or movement during transit. If loading into a container, follow proper container loading practices, maximizing space usage and ensuring stability.
Arrange transportation: Coordinate with the freight forwarder or shipping company to arrange transportation from your location to the port or airport of departure. Ensure that all necessary permits, licenses, and insurance coverage are in place.
Advantages
Versatility for a range of cargo types
Efficient transport of shipping containers
High load-bearing capacity
Stability during transportation
Increased productivity
Durability
Compliance with regulations.
FAQ
Q1. Are you a factory or trading company?
Q2. Could you accept special design and specification?
Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control,or OEM, etc.
Q3. Are you looking for an agent?
Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. Do you have stock?
Yes we have a few stock in our warehouse for your urgent order, but the main design already finished, the only we can change are
some of the spare parts such like tires, axles, stickers, painting etc.
Q5. How to control quality?
We set up all process inspection and quality control standard, include raw materials, production process, finished products.Advanced equipment and standard inspection process ensure the quality.
Specification
| 20FT Skeleton Semi Trailer | 40FT Skeleton Semi Trailer 45FT Skeleton Semi Trailer |
| Brand: Haoyue | Brand: Haoyue Brand: Haoyue |
| 2 Axles/3 Axles | 3 Axles/ 4 Axles 3 Axles/ 4 Axles |
| 20ft Container Loading | 1*40ft/2*20ft Container Loading 1*45ft/1*40ft/2*20ft Container Loading |
| Loading Capacity: 20-50 Tons | Loading Capacity: 30-80 Tons Loading Capacity: 30-80 Tons |
| Type: Gooseneck or Tandem | Type: Gooseneck or Tandem Type: Gooseneck or Tandem |
| Material: Q345/T700 | Material: Q345/T700 Material: T700 |
| Upper Plate Thickness: 12mm | Upper Plate Thickness: 14mm Upper Plate Thickness: 10mm |
| Middle Plate Thickness: 6mm | Middle Plate Thickness: 6mm Middle Plate Thickness: 5mm |
| Lower Plate Thickness: 12mm | Lower Plate Thickness: 16mm Lower Plate Thickness: 10mm |
| Height: 500mm | Height: 500mm Height: 420mm |
| L*W*H: 7000mm*2480mm*1560mm | L*W*H: 12400mm*2480mm*1580mm L*W*H: 13950mm*2500mm*1600mm |
| 2/3 Axles *13 Ton VEHCILE MASTER/FUWA/BPW | 3/4 Axles *13 Ton VEHCILE MASTER/FUWA/BPW 3/4 Axles *13/16 Ton VEHCILE MASTER/FUWA/BPW |
| 12R22.5 (8/12 Pieces) Linglong/Triangle/Double Coin/Bridgestone | 12R22.5 (12/16 Pieces) Linglong/Triangle/Double Coin/Bridgestone 12R22.5 (12/16 Pieces) Linglong/Triangle/Double Coin/Bridgestone |
| 9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.0*22.5 (12/16 Pieces) Steel/Aluminum 9.00*22.5 (12/16 Pieces) Steel/Aluminum |
| 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces | 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces |
| #50 (2")/#90 (3.5") JOST/Other Brand | #50 (2")/#90 (3.5") JOST/Other Brand #50 (2")/#90 (3.5") JOST/Other Brand |
| 28 Tons Two Speed JOST/Other Brand | 28 Tons Two Speed JOST/Other Brand 28 Tons Two Speed JOST/Other Brand |
| 4 Sets | 12 Sets 12 Sets |
| Electrophoresis Painting | Electrophoresis Painting Electrophoresis Painting |
| Description | Picture |
| Whatsapp/Tel | +86 191 0068 9141 |
| semitrailer@sdvehiclemaster.com | |
| Shipping Container Transportation | They are commonly used in transporting dry and refrigerated containers to and from ports. |
| Intermodal Logistics | They are suitable for intermodal logistics, allowing containers to be easily transferred onto other modes of transportation like rail, ships, or barges. |
| Construction Projects | They can be used to transport construction materials, such as steel bars, pipes, and timber. |
| Machinery and Equipment | They are also perfect for transporting heavy machinery, equipment, and vehicles. |
| Bulk Cargo | They are ideal for transporting bulk cargo such as gravel, soil, and sand. |
| Agricultural Products | They can be used in transporting large volumes of agricultural products such as fruits, vegetables, and grains. |
| Warehousing and Distribution | They can be used for warehousing and distribution of bulk cargo before transporting the cargo to various destinations. |
| Cargo preparation | Ensure that the cargo is properly packaged and secured according to international shipping standards. If you are transporting shipping containers, make sure they are sealed, and the contents are properly loaded and secured within the container. |
| Book a freight forwarder | Find a reputable freight forwarder experienced in handling international shipments. Provide them with all relevant details, including the dimensions and weight of the Skeleton Truck Trailer, as well as any specific requirements or restrictions. |
| Select a shipping container (if applicable) | If the Skeleton Truck Trailer is being shipped in a container, choose the appropriate container size and type. Common options include 20-foot or 40-foot standard or high cube containers. Make sure the container is in good condition and meets all necessary shipping requirements. |
| Secure cargo and load onto trailer/container | Ensure that the cargo is properly secured within the Skeleton Truck Trailer or container. Use appropriate load restraints to prevent shifting or movement during transit. If loading into a container, follow proper container loading practices, maximizing space usage and ensuring stability. |
| Arrange transportation | Coordinate with the freight forwarder or shipping company to arrange transportation from your location to the port or airport of departure. Ensure that all necessary permits, licenses, and insurance coverage are in place. |
Request a Quotation
Send us your destination port and any special requirements. Our team reviews the configuration and prepares a quotation.
