Container Chassis Trailers 40ft
We are a professional container chassis trailer manufacturer, offering container chassis trailers at factory-direct prices. Our trailers are specially designed for container transportation.

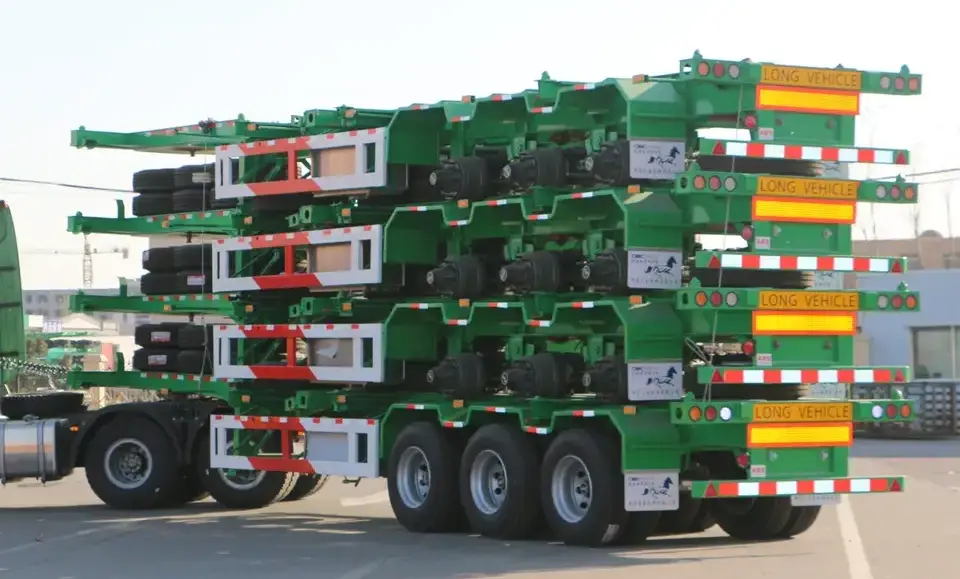

Container Chassis Trailer 40ft
We are a professional container chassis trailer manufacturer, offering container chassis trailers at factory-direct prices. Our trailers are specially designed for container transportation.
We provide 20/40/45ft container chassis trailer options. The 40ft container chassis trailer is the most commonly used size in international trade, capable of carrying one 40ft container or two 20ft containers. Twist locks can be installed according to requirements, ensuring safe and efficient container transport for both road haulage and intermodal transportation.
Parameter of Container Chassis Trailers 40ft
| Length | 40 feet (12.19 meters) |
| Width | 8 feet (2.44 meters) |
| Height | 8 feet 6 inches (2.59 meters) |
| Tare weight | 8,000-12,000 lbs (3,629-5,443 kg) |
| Payload capacity | 50,000-65,000 lbs (22,680-29,484 kg) |
| Maximum load height | 8 feet 6 inches (2.59 meters) |
| Maximum load width | 8 feet (2.44 meters) |
| Maximum load length | 40 feet (12.19 meters) |
| Axles | 2,3, or customized |
| Other features | consist of a skeletal frame with wheels and a fifth wheel that attach to a truck tractor |
Our 40ft container chassis trailer can be equipped with 3 axles and supports a maximum load of up to 60 tons.
Our container chassis trailers are normally fitted with container twist locks. If you have other transport requirements, we can add lashing points to allow the transport of other oversized cargo. Different types of suspension systems, tires, and braking systems can also be configured according to your transport needs.
If you are interested in our semi trailer, or you wanna know more infos, you can contact us.
Whatsapp/Tel:+86 191 0068 9141
Email:semitrailer@sdvehiclemaster.com

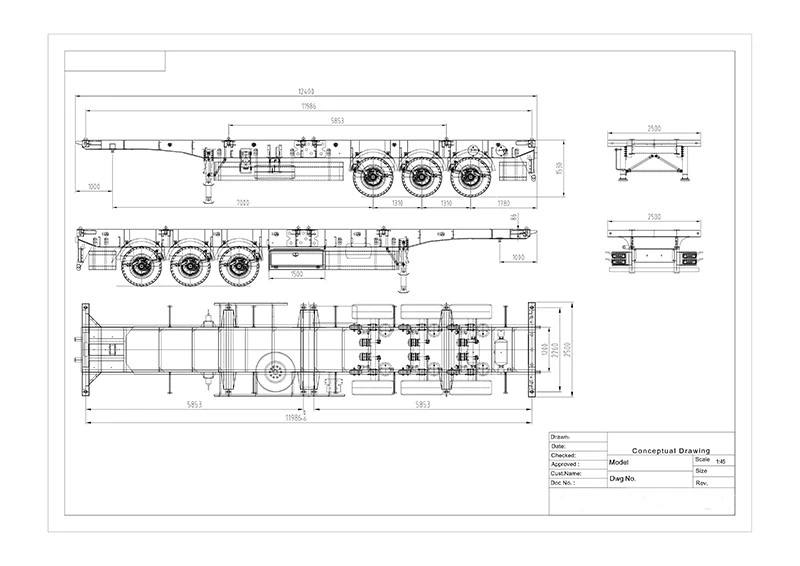

Design Drawings
As the most popular size, the 40ft container chassis trailer is continuously optimized by Haoyue, a professional semi-trailer manufacturer. We use advanced software and algorithms to simulate and predict trailer performance. While optimizing the structure, the trailer becomes lighter and more durable without changing the load capacity, maximizing fuel efficiency.
Advantages of Our 40ft Container Chassis Trailer
- Versatility: Equipped with different cargo securing systems, suitable for transporting various types of cargo.
- Intermodal Compatibility: Manufactured according to international standards, enabling easy container transfer between different transport systems and improving efficiency.
- Efficient Loading & Unloading: Standardized twist lock positions allow quick installation and removal, effectively increasing transport efficiency.
- High Payload Capacity: Available load options from 20 to 60 tons, specially designed for heavy-duty transport.
- Landing Gear: Equipped with JOST 28-ton landing legs for easy coupling and uncoupling.
After-Sales Service
- Free customized solutions
- One-year warranty
- Lifetime spare parts supply
- Well-established cargo transportation process
- Trailer operation and daily maintenance training
- 24-hour hotline for customer support
- CKD and SKD services available
Packaging & Delivery
- Bulk packaging and shipping
- Stacking and Ro-Ro transportation
- Container transportation
Specification
| Length | 40 feet (12.19 meters) |
| Width | 8 feet (2.44 meters) |
| Height | 8 feet 6 inches (2.59 meters) |
| Tare weight | 8,000-12,000 lbs (3,629-5,443 kg) |
| Payload capacity | 50,000-65,000 lbs (22,680-29,484 kg) |
| Maximum load height | 8 feet 6 inches (2.59 meters) |
| Maximum load width | 8 feet (2.44 meters) |
| Maximum load length | 40 feet (12.19 meters) |
| Axles | 2,3, or customized |
| Other features | consist of a skeletal frame with wheels and a fifth wheel that attach to a truck tractor |
| Versatility | Equipped with different cargo securing systems, suitable for transporting various types of cargo. |
| Intermodal Compatibility | Manufactured according to international standards, enabling easy container transfer between different transport systems and improving efficiency. |
| Unloading | Standardized twist lock positions allow quick installation and removal, effectively increasing transport efficiency. |
| High Payload Capacity | Available load options from 20 to 60 tons, specially designed for heavy-duty transport. |
| Landing Gear | Equipped with JOST 28-ton landing legs for easy coupling and uncoupling. |
| Whatsapp/Tel | +86 191 0068 9141 |
| semitrailer@sdvehiclemaster.com |
Request a Quotation
Send us your destination port and any special requirements. Our team reviews the configuration and prepares a quotation.
