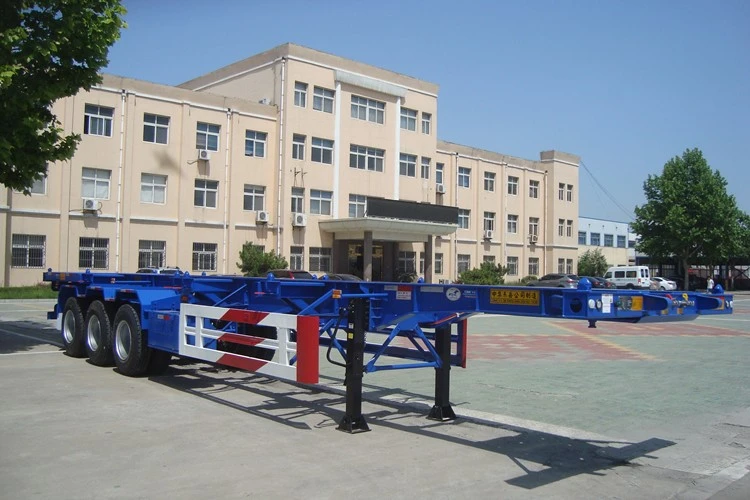

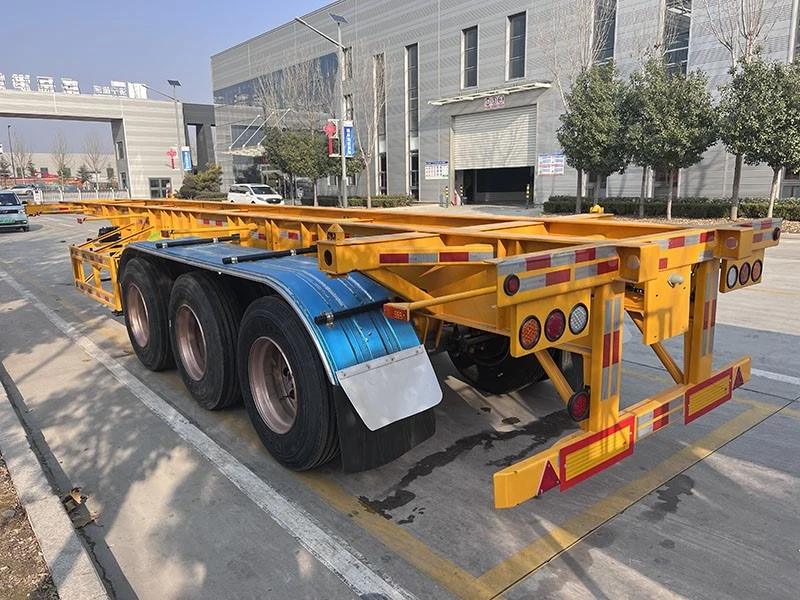

Through-Beam Skeletal Semi Trailer
Skeletal semi trailer is one of our main product. This series of semi trailers use through beam structure, where frame structure has flat type or gooseneck type. It has the characteristics of high integral strength, small weight, elegant appearance, strong loading capacity, and reliable operation.
Skeletal Semi Trailer
Introduction
Skeletal semi trailer is one of our main product. This series of semi trailers use through beam structure, where frame structure has flat type or gooseneck type. It has the characteristics of high integral strength, small weight, elegant appearance, strong loading capacity, and reliable operation.
Parameter for a typical skeletal semi trailer
| Feature | Parameter |
| Trailer Model | Skeleton Container Trailer |
| Overall Dimensions (LxWxH) | 12400mm x 2500mm x 1590mm |
| Axles | 2 ,3, or customized |
| Tire | 11R22.5 or 12R22.5 |
| Suspension | Mechanical or Air suspension |
| King Pin Size | 2 inches or 3.5 inches |
| Landing Gear | Jost |
| Twist Locks | 8 or 12 (depending on the number of containers to be transported) |
| Brake System | ABS or EBS |
| Main Beam Material | Q345B Steel or Q700 |
| Floor Plate Thickness | non or 3mm |
| Ladder | Manual or hydraulic |
| Electrical System | 24V lighting system with LED lights |
| Max Payload | 40,000 kg |
| Tare Weight | 6,000 kg |
| Color | Customizable |
It is important to note that these specifications can vary depending on the manufacturer and customized options. It is always recommended to consult with us to ensure the trailer meets the required specifications for its intended use.
If you are interested in our semi trailer, or you wanna know more infos, you can contact us.
Whatsapp/Tel:+86 191 0068 9141
Email:semitrailer@sdvehiclemaster.com
After-Sales Service
1) Traning of trailer operating and normal maintenance .
2) Regularly callback to know the vehicle’s working status.
3) Supply the service of regular repair.
4) Solve the customer’s advisory.
5) The overseas engineers are always ready to deal with unexpected needs.
6) 24 hours hotline.
7) CKD and SKD are available.
8) Faster, better and more professional.
Packaging & delivery
1. Bulk Packing and Transportation
2. Bulk Packing RO-RO Transportation
3. Whole Trailer body Waxing
Advantages
During production, advanced manufacturing technology such as automatic submerged-arc welding for vertical beam is used. The shot blasting treatment for integral frame removes welding stress effectively, while advanced equipment and technology is applied during the whole production process to ensure consistent formation and accurate assembly.
FAQ
Q1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketing for over 40 years.
Q2. What markets do your vehicle export to?
Europe, North & South America, South-East Asia,Africa, Oceania, Middle East countries etc.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the your purpose,road condition,cargo type,tons of your cargo,dimensions of trailer,quantity etc. The more info. you provide, the more accurate model and price you will get.
Q4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
Q5. How can I get the price of your vehicle?
The 2025 catalogue describes 24-hour online/phone service and a 1-year warranty on the main parts of the semi-trailer. Response timing, covered parts and order terms should be confirmed for your enquiry.
Specification
| Feature | Parameter |
| Trailer Model | Skeleton Container Trailer |
| Overall Dimensions (LxWxH) | 12400mm x 2500mm x 1590mm |
| Axles | 2 ,3, or customized |
| Tire | 11R22.5 or 12R22.5 |
| Suspension | Mechanical or Air suspension |
| King Pin Size | 2 inches or 3.5 inches |
| Landing Gear | Jost |
| Twist Locks | 8 or 12 (depending on the number of containers to be transported) |
| Brake System | ABS or EBS |
| Main Beam Material | Q345B Steel or Q700 |
| Floor Plate Thickness | non or 3mm |
| Ladder | Manual or hydraulic |
| Electrical System | 24V lighting system with LED lights |
| Max Payload | 40,000 kg |
| Tare Weight | 6,000 kg |
| Color | Customizable |
| Whatsapp/Tel | +86 191 0068 9141 |
| semitrailer@sdvehiclemaster.com |
Request a Quotation
Send us your destination port and any special requirements. Our team reviews the configuration and prepares a quotation.
