2-Axle 40 Ton Fence Trailer for Agriculture

The fence semi trailer is a semi-trailer designed with a fence structure in the cargo area. It is mainly used for the transportation of agricultural and sideline products and other light foam goods. The vehicle type and fence structure design process is combined with the user’s cargo category. The design is well thought out to fully reduce the weight of…

Request a Quote

The fence semi trailer is a semi-trailer designed with a fence structure in the cargo area. It is mainly used for the transportation of agricultural and sideline products and other light foam goods. The vehicle type and fence structure design process is combined with the user’s cargo category. The design is well thought out to fully reduce the weight of the carriage under the load conditions. The structure is simple and applicable and the disassembly is convenient, which reduces investment costs for users and create more profit value.

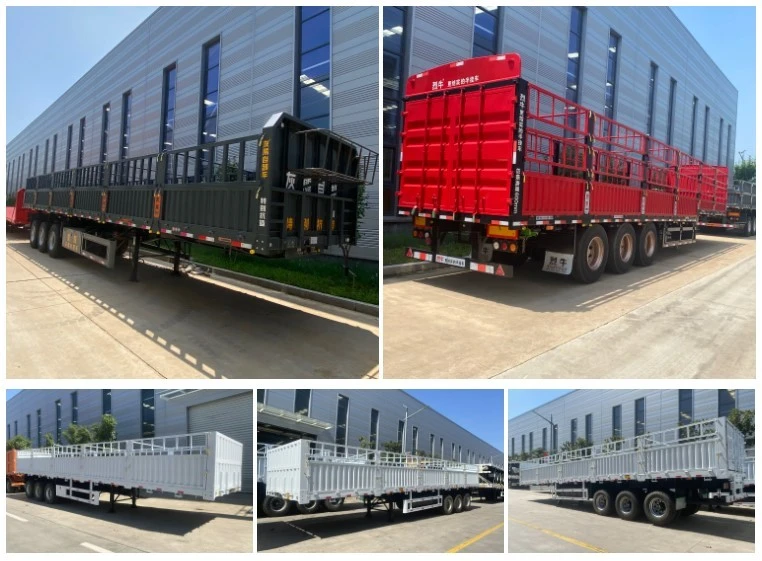

Fence Cargo Trailer



Fence Cargo Trailer

2 Axles

3 Axles

4 Axles



Brand: Haoyue



Application: Coal/ Livestock/Vegetable/Cargo Loading

Length*Width*Height: 1300mm*2550mm*1800mm

Loading Capacity: 20-40T

Loading Capacity: 30-60T

Loading Capacity: 40-100T



OEM/ODM: Available





SKD/CKD Cooperation: Available





Goose Type: Available



Main Beam

Material: Q345/T700

Material: Q345/T700

Material: Q345/T700

Upper Plate Thickness: 12mm

Upper Plate Thickness: 12mm

Upper Plate Thickness: 18mm

Middle Plate Thickness: 6mm

Middle Plate Thickness: 6mm

Middle Plate Thickness: 12mm

Lower Plate Thickness: 14mm

Lower Plate Thickness: 14mm

Lower Plate Thickness: 20mm

Height: 500mm

Height: 500mm

Height: 500mm

Product Size

L*W*H: 13000mm*2550mm*1800mm

L*W*H: 13000mm*2550mm*1800mm

L*W*H: 13000mm*2550mm*1800mm

Fence Height: 1800mm; can be customized

Axle

2 Axles *13/16 Ton

Haoyue/FUWA/BPW/Other

3 Axles *13/16 Ton

Haoyue/FUWA/BPW/Other

4 Axles *13/16 Ton

Haoyue/FUWA/BPW/Other

Tire

12R22.5 (8 Pieces)

Linglong/Triangle/Double-Coin/Bridgestone/

Other

12R22.5 (12 Pieces)

Linglong/Triangle/Double-Coin/Bridgestone/

Other

12R22.5 (16 Pieces)

Linglong/Triangle/Double-Coin/Bridgestone/

Other

Rim

9.00*22.5 (8 Pieces) Steel/Aluminum

9.00*22.5 (12 Pieces) Steel/Aluminum

9.00*22.5 (16 Pieces) Steel/Aluminum

Leaf Spring

90mm*13mm*10/90mm*16mm*10

90mm*13mm*10/90mm*16mm*10

90mm*13mm*10/90mm*16mm*10

King Pin

#50(2″)/#90(3.5″), JOST/Other Brand

#50(2″)/#90(3.5″), JOST/Other Brand

#50(2″)/#90(3.5″), JOST/Other Brand

Landing Gear

28 Tons Two Speed, JOST/Other Brand

28 Tons Two Speed, JOST/Other Brand

28 Tons Two Speed, JOST/Other Brand

Vehicle Painting

Electrophoresis painting

Electrophoresis painting

Electrophoresis painting

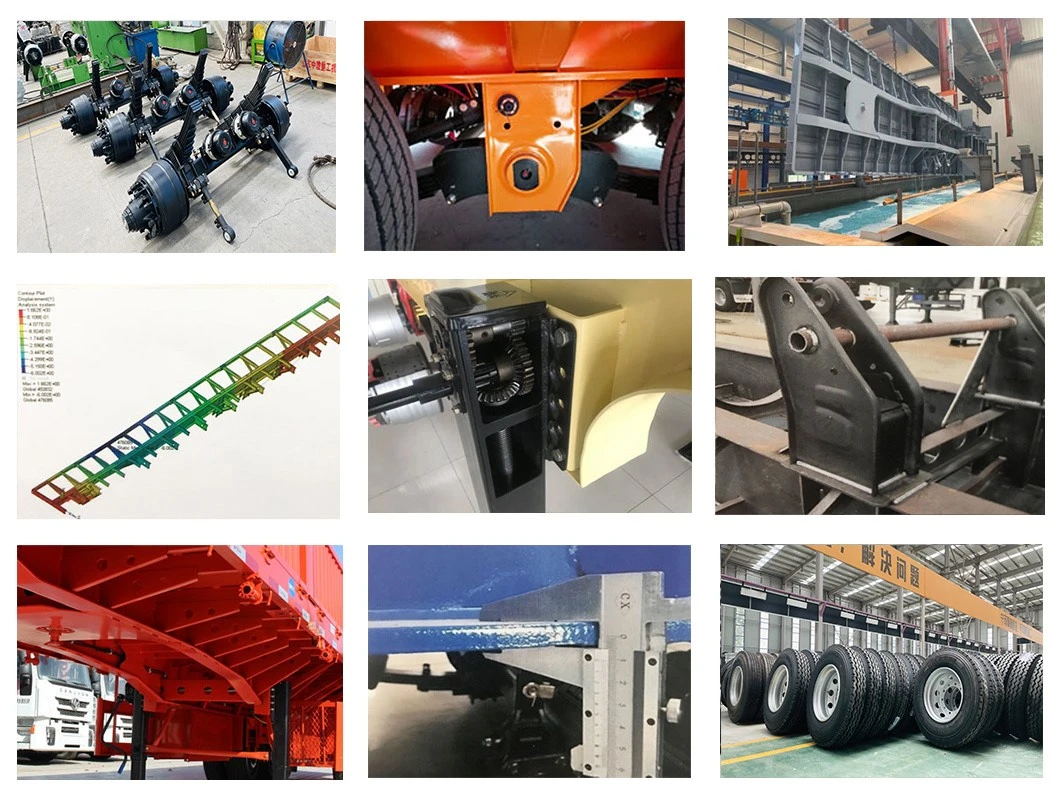

Product Details

Fence Cargo Trailer

Advanced Axle Performance

Integrated advanced low-alloy axle beam with no welding points; strong capacity and high strength; axles can be free of maintenance up to 3 years or 400,000 kilometers.

Anti-Tire Abrasion Suspension

Specially designed anti-Tire abrasion suspension system, prevent tire offset after loading, maximally avoid tire abrasion. Meanwhile, Easy to disassemble and maintain.

Electrophoresis Painting

Corrosion resistant and strong print adhesiveness up to 9 years. The whole body painting process makes sure no spots are missed and gives the best anti-rust performance.

Finite Element Analysis

FEA, aka Finite Element Analysis, the analysis used in calculation of Aircraft material strength, is used here on our vehicle to maximize product performance.

Landing Gear

Haoyue or JOST landing gear can be optioned made in aluminum or steel; designed to work under both high and low temperature in the range of -30℃ to 120 ℃.

National Welding Standard

All the welding is supervised with national highest standards, while automatic welding robots are incorporated. 30 minutes longer than normal welding time ensures the best results.

Rational Analysis Design

Adhering to the concept of uniform force on trailer frame, the 42 rib design ensures the safety and carrying capacity of our trailer.



Full Thickness Steel Plate

10mm steel plate, can be as thick as 10.9mm, special custom-made with 0.98‰ titanium and niobium, which ensures the high strength of the beam and frame.

Tires

High quality tire brands such as Double Coin/Linglong/Michelin/Triangle/Bridgestone can be optioned for the best performance.

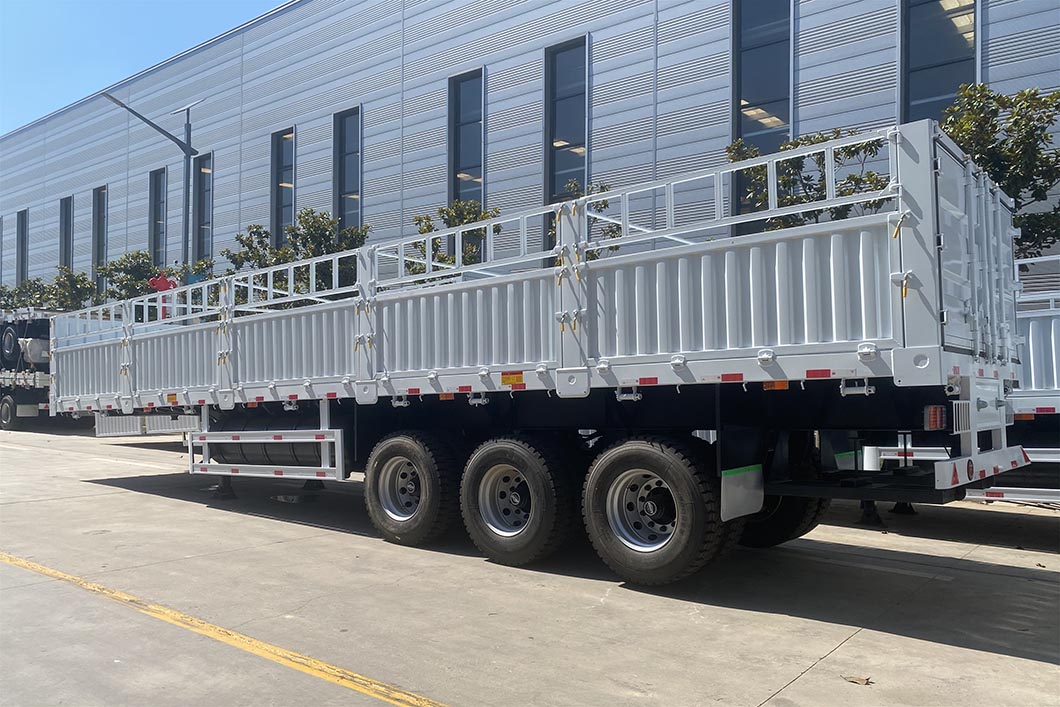

Characteristics

The vehicle type and fence structure design process is combined with the user’s cargo category. The design is well thought out to fully reduce the weight of the carriage under the load conditions. The structure is simple and applicable and the disassembly is convenient, which reduces investment costs for users and create more profit value. The frame structure of cargo fence trailer is formed by welding longitudinal beams and integral penetrating beams. It can balance the strength, stiffness and toughness of the frame with strong bearing capacity and no deformation. The series of cargo fence semi-trailer frames are all beam type structures. The longitudinal beams are either straight type or gooseneck type. The height of the web is from 400 to 500. The longitudinal beam is welded by automatic submerged arc welding. The entire frame is processed by shot blasting. The cross beam penetrates the longitudinal beam and is welded as a whole.

The vehicle type and fence structure design process is combined with the user's cargo category. The design is well thought out to fully reduce the weight of the carriage under the load conditions. The structure is simple and applicable and the disassembly is convenient, which reduces investment costs for users and create more profit value. The frame structure of cargo fence trailer is formed by welding longitudinal beams and integral penetrating beams. It can balance the strength, stiffness and toughness of the frame with strong bearing capacity and no deformation. The series of cargo fence semi-trailer frames are all beam type structures. The longitudinal beams are either straight type or gooseneck type. The height of the web is from 400 to 500. The longitudinal beam is welded by automatic submerged arc welding. The entire frame is processed by shot blasting. The cross beam penetrates the longitudinal beam and is welded as a whole.

Specification

2 Axles 3 Axles 4 Axles
Loading Capacity: 20-40T Loading Capacity: 30-60T Loading Capacity: 40-100T
Material: Q345/T700 Material: Q345/T700 Material: Q345/T700
Upper Plate Thickness: 12mm Upper Plate Thickness: 12mm Upper Plate Thickness: 18mm
Middle Plate Thickness: 6mm Middle Plate Thickness: 6mm Middle Plate Thickness: 12mm
Lower Plate Thickness: 14mm Lower Plate Thickness: 14mm Lower Plate Thickness: 20mm
Height: 500mm Height: 500mm Height: 500mm
L*W*H: 13000mm*2550mm*1800mm L*W*H: 13000mm*2550mm*1800mm L*W*H: 13000mm*2550mm*1800mm
2 Axles *13/16 Ton Haoyue/FUWA/BPW/Other 3 Axles *13/16 Ton Haoyue/FUWA/BPW/Other 4 Axles *13/16 Ton Haoyue/FUWA/BPW/Other
12R22.5 (8 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other 12R22.5 (12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other 12R22.5 (16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other
9.00*22.5 (8 Pieces) Steel/Aluminum 9.00*22.5 (12 Pieces) Steel/Aluminum 9.00*22.5 (16 Pieces) Steel/Aluminum
90mm*13mm*10/90mm*16mm*10 90mm*13mm*10/90mm*16mm*10 90mm*13mm*10/90mm*16mm*10
#50(2")/#90(3.5"), JOST/Other Brand #50(2")/#90(3.5"), JOST/Other Brand #50(2")/#90(3.5"), JOST/Other Brand
28 Tons Two Speed, JOST/Other Brand 28 Tons Two Speed, JOST/Other Brand 28 Tons Two Speed, JOST/Other Brand
Electrophoresis painting Electrophoresis painting Electrophoresis painting
Brand Haoyue
Application Coal/ Livestock/Vegetable/Cargo Loading
Length*Width*Height 1300mm*2550mm*1800mm
Loading Capacity 20-40T
Loading Capacity 30-60T
Loading Capacity 40-100T
OEM/ODM Available
SKD/CKD Cooperation Available
Goose Type Available
Material Q345/T700
Upper Plate Thickness 12mm
Upper Plate Thickness 18mm
Middle Plate Thickness 6mm
Middle Plate Thickness 12mm
Lower Plate Thickness 14mm
Lower Plate Thickness 20mm
Height 500mm
L*W*H 13000mm*2550mm*1800mm
Fence Height 1800mm; can be customized

Configuration options to discuss

Fence Semi Trailer options below are described at product-family level in the 2025 catalogue. They are not a list of equipment automatically included with this model.

  • Body layout to suit the stated cargo
  • Axle and loading configuration to be agreed in the quotation
  • OEM, CKD and SKD cooperation
What should a fence trailer enquiry include?

Specify the type of goods, loaded dimensions and mass, loading equipment and destination. These inputs help distinguish the configuration from a general side-wall trailer.

For a quotation, include the cargo, dimensions, loaded weight, loading method, quantity and destination. Ask for the documents applicable to the agreed configuration.

Source: Vehicle Master Product Catalog 2025, PDF pages 19–21. Catalogue configurations are references; confirm the specification and documents for your selected order.
