2-Axle 40 Ton Fence Trailer for Excavator
A fence trailer is a type of semi-trailer that is specially designed for transporting various types of cargo that require the lateral protection of a fence railing. The trailer bed is surrounded by a railing or fence that allows for the transportation of bulky items that cannot be easily or safely contained in an enclosed trailer. Fence trailers are often…

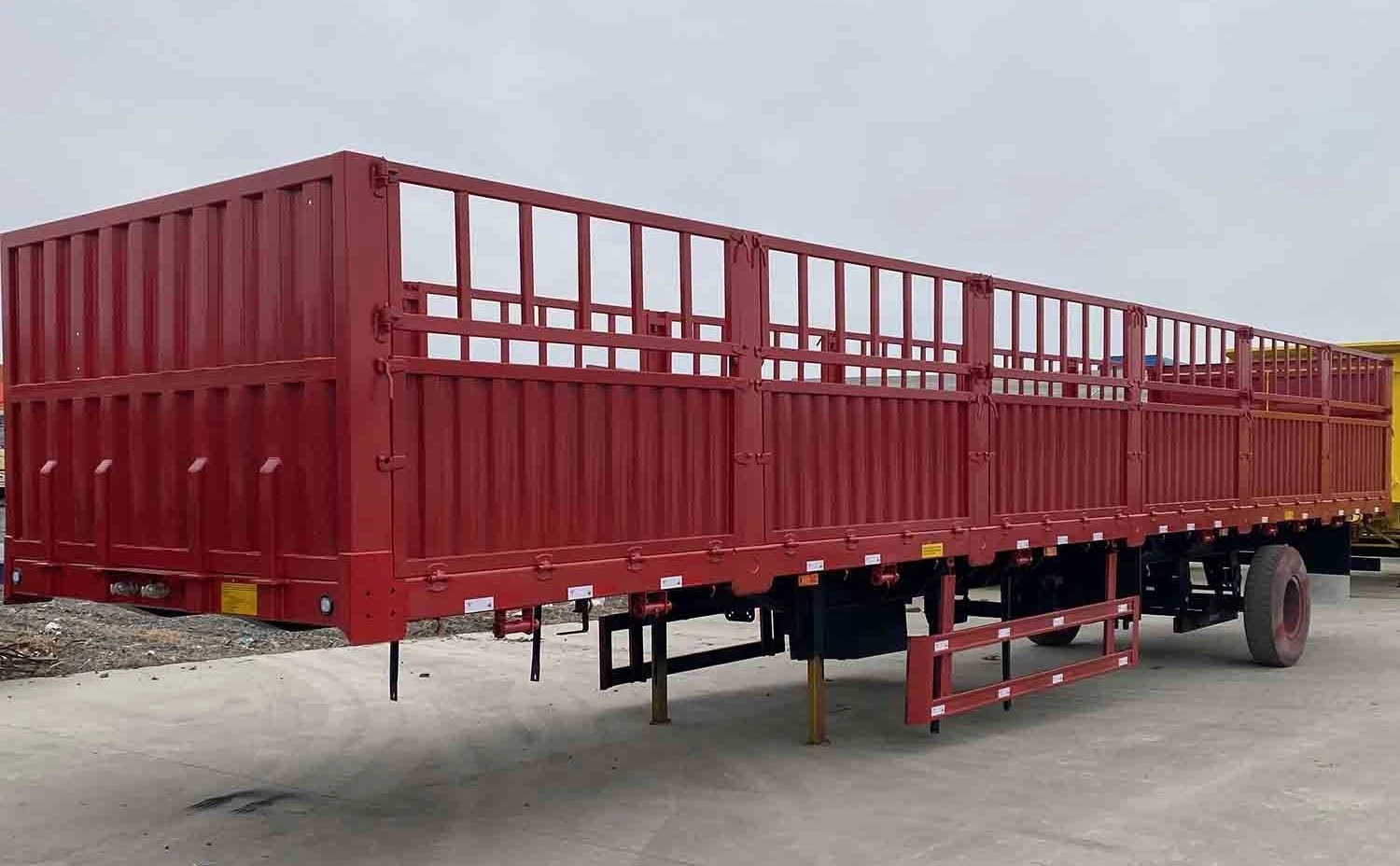

Fence Trailer
Introduction
A fence trailer is a type of semi-trailer that is specially designed for transporting various types of cargo that require the lateral protection of a fence railing. The trailer bed is surrounded by a railing or fence that allows for the transportation of bulky items that cannot be easily or safely contained in an enclosed trailer. Fence trailers are often used for transporting building materials such as lumber, pipes, and scaffolding. They may also be used for transporting heavy equipment such as generators, compressors, and excavators. Fence trailers are available in various lengths, widths, and heights, and typically feature multiple tie-down points for securing cargo during transport. The trailer is typically connected to a truck or other tow vehicle through a fifth-wheel hitch or gooseneck hitch, and can be designed with either a single or tandem axle configuration, depending on the specific needs of the user.
Parameter
|
2 Axles |
3 Axles |
4 Axles |
|
|
|
Brand: Haoyue |
|
|
|
Application: Coal/ Livestock/Vegetable/Cargo Loading |
|||
|
Length*Width*Height: 1300mm*2550mm*1800mm |
|||
|
Loading Capacity: 20-40T |
Loading Capacity: 30-60T |
Loading Capacity: 40-100T |
|
|
|
OEM/ODM: Available |
|
|
|
|
SKD/CKD Cooperation: Available |
|
|
|
|
Goose Type: Available |
|
|
|
Main Beam |
|||
|
Material: Q345/T700 |
Material: Q345/T700 |
Material: Q345/T700 |
|
|
Upper Plate Thickness: 12mm |
Upper Plate Thickness: 12mm |
Upper Plate Thickness: 18mm |
|
|
Middle Plate Thickness: 6mm |
Middle Plate Thickness: 6mm |
Middle Plate Thickness: 12mm |
|
|
Lower Plate Thickness: 14mm |
Lower Plate Thickness: 14mm |
Lower Plate Thickness: 20mm |
|
|
Height: 500mm |
Height: 500mm |
Height: 500mm |
|
|
Product Size |
|||
|
L*W*H: 13000mm*2550mm*1800mm |
L*W*H: 13000mm*2550mm*1800mm |
L*W*H: 13000mm*2550mm*1800mm |
|
|
Fence Height: 1800mm; can be customized |
|||
|
Axle |
|||
|
2 Axles *13/16 Ton Haoyue/FUWA/BPW/Other |
3 Axles *13/16 Ton Haoyue/FUWA/BPW/Other |
4 Axles *13/16 Ton Haoyue/FUWA/BPW/Other |
|
|
Tire |
|||
|
12R22.5 (8 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other |
12R22.5 (12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other |
12R22.5 (16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other |
|
|
Rim |
|||
|
9.00*22.5 (8 Pieces) Steel/Aluminum |
9.00*22.5 (12 Pieces) Steel/Aluminum |
9.00*22.5 (16 Pieces) Steel/Aluminum |
|
|
Leaf Spring |
|||
|
90mm*13mm*10/90mm*16mm*10 |
90mm*13mm*10/90mm*16mm*10 |
90mm*13mm*10/90mm*16mm*10 |
|
|
King Pin |
|||
|
#50(2")/#90(3.5"), JOST/Other Brand |
#50(2")/#90(3.5"), JOST/Other Brand |
#50(2")/#90(3.5"), JOST/Other Brand |
|
|
Landing Gear |
|||
|
28 Tons Two Speed, JOST/Other Brand |
28 Tons Two Speed, JOST/Other Brand |
28 Tons Two Speed, JOST/Other Brand |
|
|
Vehicle Painting |
|||
|
Electrophoresis painting |
Electrophoresis painting |
Electrophoresis painting |
|
If you are interested in our Fence Trailer or you wanna know more infos, you can contact us.
Whatsapp/Tel:+86 191 0068 9141
Email:semitrailer@sdvehiclemaster.com
Product Details
| Description | Picture |
|
Anti-Tire Abrasion Suspension Specially designed anti-Tire abrasion suspension system, prevent tire offset after loading, maximally avoid tire abrasion. Meanwhile, Easy to disassemble and maintain. |
 |
|
Landing Gear Haoyue or JOST landing gear can be optioned made in aluminum or steel; designed to work under both high and low temperature in the range of -30℃ to 120 ℃.
|
 |
|
Braking system parts Components such as brake pads, brake drums, brake chambers, and air valves are essential for the proper functioning of the trailer's braking system. Spare parts for these components ensure efficient and safe braking performance. |
 |
|
Lights and electrical components The trailer's lighting system, including markers, brake lights, and indicators, may require replacement or repair over time. Spare lights and electrical components are available to ensure uninterrupted lighting functionality on the trailer. |
 |
|
Axle Integrated advanced low-alloy axle beam with no welding points; strong capacity and high strength; axles can be free of maintenance up to 3 years or 400,000 kilometers. |
 |
|
Tire High quality tire brands such as Double Coin/Linglong/Michelin/Triangle/Bridgestone can be optioned for the best performance. |
 |
Packing & Shipping
Package according to product characteristics,such as:
1.Bulk Packing and Bulk Transportation
2.Bulk Packing and RO-RO Transportation
3.Trailer Whole Body Waxing
4.Bulk and container

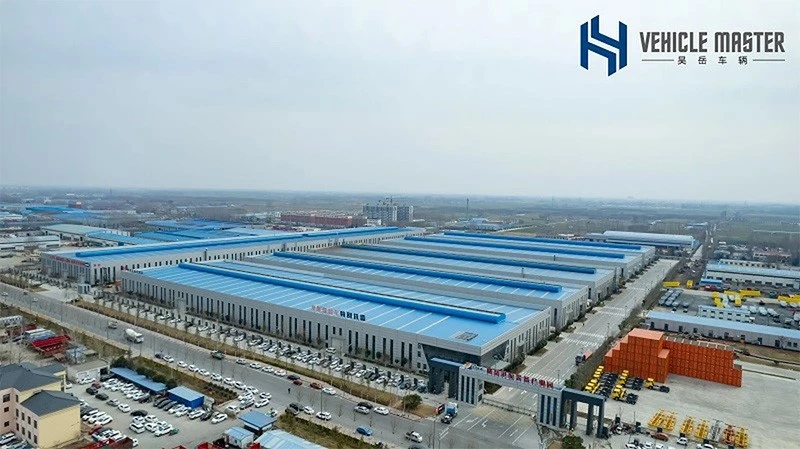

Company Profile
Haoyue SemiTrailer Factory is a leading manufacturer of high-quality semi-trailers for various industries. With a focus on innovation, precision engineering, and customer satisfaction, we have established ourselves as a trusted and reliable supplier in the market. Our The factory is equipped with advanced facilities and a team of skilled professionals who ensure the production of durable and efficient semi-trailers that meet international standards.
At Haoyue Semi Trailer Factory, we are driven by a passion for quality, innovation, and customer satisfaction. Our commitment to continuous improvement, technological advancements, and personalized solutions makes us the preferred choice for semi-trailer requirements worldwide.
FAQ
Q1: Does your company is a factory or trade company?
A1: We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
Q2: Whats the qualify assurance we provided and how do we control quality?
A2: Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process. 100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
Q3: What's your MOQ?
A3: One unit trailer or truck.
Q4: How do you transport the semi trailers ?
A4: We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
Specification
| 2 Axles | 3 Axles 4 Axles |
| Loading Capacity: 20-40T | Loading Capacity: 30-60T Loading Capacity: 40-100T |
| Material: Q345/T700 | Material: Q345/T700 Material: Q345/T700 |
| Upper Plate Thickness: 12mm | Upper Plate Thickness: 12mm Upper Plate Thickness: 18mm |
| Middle Plate Thickness: 6mm | Middle Plate Thickness: 6mm Middle Plate Thickness: 12mm |
| Lower Plate Thickness: 14mm | Lower Plate Thickness: 14mm Lower Plate Thickness: 20mm |
| Height: 500mm | Height: 500mm Height: 500mm |
| L*W*H: 13000mm*2550mm*1800mm | L*W*H: 13000mm*2550mm*1800mm L*W*H: 13000mm*2550mm*1800mm |
| 2 Axles *13/16 Ton Haoyue/FUWA/BPW/Other | 3 Axles *13/16 Ton Haoyue/FUWA/BPW/Other 4 Axles *13/16 Ton Haoyue/FUWA/BPW/Other |
| 12R22.5 (8 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other | 12R22.5 (12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other 12R22.5 (16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other |
| 9.00*22.5 (8 Pieces) Steel/Aluminum | 9.00*22.5 (12 Pieces) Steel/Aluminum 9.00*22.5 (16 Pieces) Steel/Aluminum |
| 90mm*13mm*10/90mm*16mm*10 | 90mm*13mm*10/90mm*16mm*10 90mm*13mm*10/90mm*16mm*10 |
| #50(2")/#90(3.5"), JOST/Other Brand | #50(2")/#90(3.5"), JOST/Other Brand #50(2")/#90(3.5"), JOST/Other Brand |
| 28 Tons Two Speed, JOST/Other Brand | 28 Tons Two Speed, JOST/Other Brand 28 Tons Two Speed, JOST/Other Brand |
| Electrophoresis painting | Electrophoresis painting Electrophoresis painting |
| Description | Picture |
| Brand | Haoyue |
| Application | Coal/ Livestock/Vegetable/Cargo Loading |
| Length*Width*Height | 1300mm*2550mm*1800mm |
| Loading Capacity | 20-40T |
| Loading Capacity | 30-60T |
| Loading Capacity | 40-100T |
| OEM/ODM | Available |
| SKD/CKD Cooperation | Available |
| Goose Type | Available |
| Material | Q345/T700 |
| Upper Plate Thickness | 12mm |
| Upper Plate Thickness | 18mm |
| Middle Plate Thickness | 6mm |
| Middle Plate Thickness | 12mm |
| Lower Plate Thickness | 14mm |
| Lower Plate Thickness | 20mm |
| Height | 500mm |
| L*W*H | 13000mm*2550mm*1800mm |
| Fence Height | 1800mm; can be customized |
| Whatsapp/Tel | +86 191 0068 9141 |
| semitrailer@sdvehiclemaster.com |
