4-Axle 40 Ton Fence Trailer for Machinery
The introduction of 4 axle fence semi trailers has been a significant development in the transportation industry, offering enhanced load-bearing capacity and improved stability for the haulage of various goods. These specialized trailers provide additional axle support, enabling the safe and efficient transport of heavy and oversized cargo.

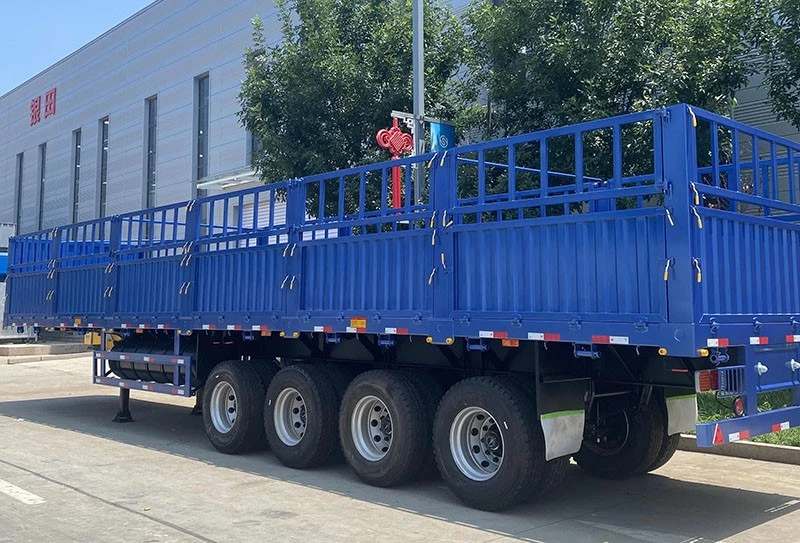

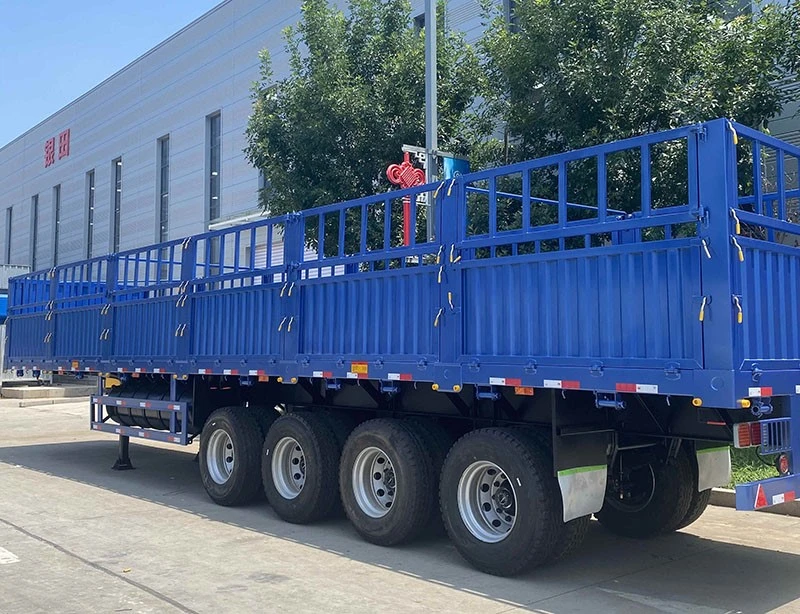

4 Axle Fence Semi Trailer
Introduction
The introduction of 4 axle fence semi trailers has been a significant development in the transportation industry, offering enhanced load-bearing capacity and improved stability for the haulage of various goods. These specialized trailers provide additional axle support, enabling the safe and efficient transport of heavy and oversized cargo.
One of the key advantages of a 4 axle fence semi trailer is its increased payload capacity. The additional axle distributes the weight of the cargo more evenly, allowing for the transportation of larger loads without compromising safety. This makes these trailers especially useful when hauling materials such as construction equipment, machinery, or oversized goods that require a higher payload capacity.

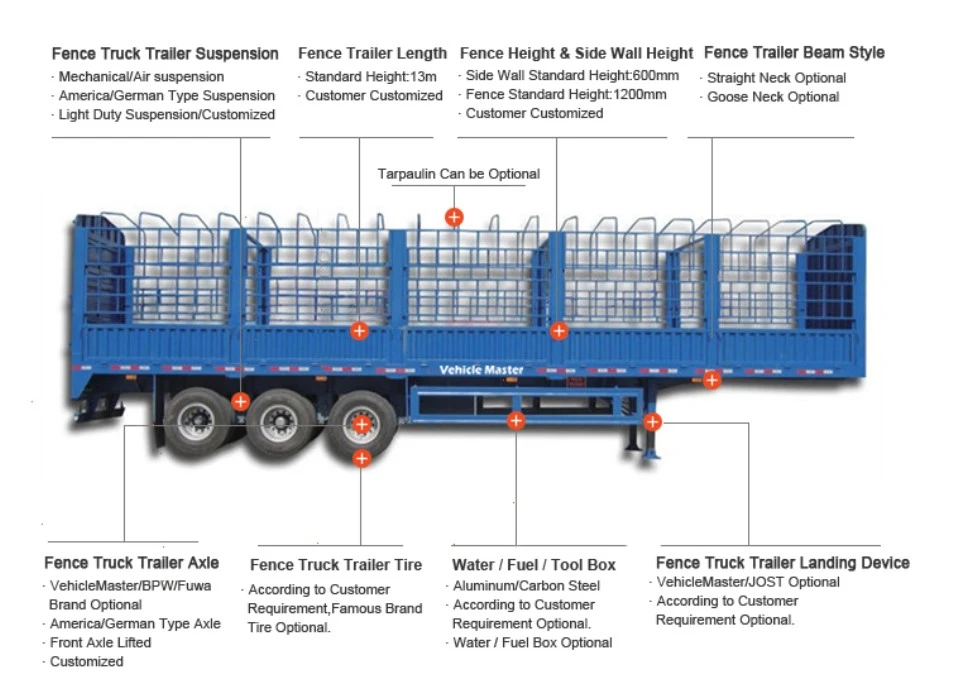

Structure
4 Axle Fence Semi Trailer carrying cargo adopts the design of fence structure. It is mainly used for the transportation of agricultural, sideline products, and other light goods. This model of trailer with its fence structure design is very practical based on user's cargo category to fully reduce the weight of the carriage under load. The structure is simple and easy to assemble and disassemble, which fully reduce the investment cost and create more profit value for the user.
Please note that the specific design and structure of a 4 axle fence semi trailer may vary depending on manufacturer specifications, customization options, and regulatory requirements. It is essential to consult with us to ensure compliance and meet safety standards for your specific needs.
Parameter
|
2 Axles |
3 Axles |
4 Axles |
|
|
Brand: Haoyue |
|
||
|
Application: Coal/ Livestock/Vegetable/Cargo Loading |
|||
|
Length*Width*Height: 1300mm*2550mm*1800mm |
|||
|
Loading Capacity: 20-40T |
Loading Capacity: 30-60T |
Loading Capacity: 40-100T |
|
|
OEM/ODM: Available |
|
||
|
SKD/CKD Cooperation: Available |
|
||
|
Goose Type: Available |
|
||
|
Main Beam |
|||
|
Material: Q345/T700 |
Material: Q345/T700 |
Material: Q345/T700 |
|
|
Upper Plate Thickness: 12mm |
Upper Plate Thickness: 12mm |
Upper Plate Thickness: 18mm |
|
|
Middle Plate Thickness: 6mm |
Middle Plate Thickness: 6mm |
Middle Plate Thickness: 12mm |
|
|
Lower Plate Thickness: 14mm |
Lower Plate Thickness: 14mm |
Lower Plate Thickness: 20mm |
|
|
Height: 500mm |
Height: 500mm |
Height: 500mm |
|
|
Product Size |
|||
|
L*W*H: 13000mm*2550mm*1800mm |
L*W*H: 13000mm*2550mm*1800mm |
L*W*H: 13000mm*2550mm*1800mm |
|
|
Fence Height: 1800mm; can be customized |
|||
|
Axle |
|||
|
2 Axles *13/16 Ton Haoyue/FUWA/BPW/Other |
3 Axles *13/16 Ton Haoyue/FUWA/BPW/Other |
4 Axles *13/16 Ton Haoyue/FUWA/BPW/Other |
|
|
Tire |
|||
|
12R22.5 (8 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other |
12R22.5 (12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other |
12R22.5 (16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other |
|
|
Rim |
|||
|
9.00*22.5 (8 Pieces) Steel/Aluminum |
9.00*22.5 (12 Pieces) Steel/Aluminum |
9.00*22.5 (16 Pieces) Steel/Aluminum |
|
|
Leaf Spring |
|||
|
90mm*13mm*10/90mm*16mm*10 |
90mm*13mm*10/90mm*16mm*10 |
90mm*13mm*10/90mm*16mm*10 |
|
|
King Pin |
|||
|
#50(2")/#90(3.5"), JOST/Other Brand |
#50(2")/#90(3.5"), JOST/Other Brand |
#50(2")/#90(3.5"), JOST/Other Brand |
|
|
Landing Gear |
|||
|
28 Tons Two Speed, JOST/Other Brand |
28 Tons Two Speed, JOST/Other Brand |
28 Tons Two Speed, JOST/Other Brand |
|
|
Vehicle Painting |
|||
|
Electrophoresis painting |
Electrophoresis painting |
Electrophoresis painting |
|
If you are interested in our 4 Axle Fence Semi Trailer or you wanna know more infos, you can contact us.
Whatsapp/Tel:+86 191 0068 9141
Email:semitrailer@sdvehiclemaster.com
Factory Equipment
| Description | Picture |
|
Laser cut machine： It's controled by computer,it can achieve to 0.01 milimeter accuracy level,the cutting thickness range is 1-25milimeter |
 |
|
Bend: The design and construction of the trailer, including the fence structure, are carefully engineered to provide optimal strength, stability, and security for the cargo being transported. |
 |
|
Welding: Selecting the welding method: Determine the appropriate welding technique based on the trailer material and the desired strength and durability of the weld. The most common welding methods for trailers include shielded metal arc welding (SMAW), gas metal arc welding (GMAW), and flux-cored arc welding (FCAW). |
 |
|
Assemble: Lay out all the trailer components in an organized manner, following the assembly instructions. Identify and sort the parts for easy access during the assembly process. Start with the frame, Install the axle and suspension, Attach the fence structure, Install the flooring, Finalize connections and details, Perform quality checks. |
 |
|
Painting: Clean the surface, Rinse and dry, Prepare the area, Sand or use a primer (if needed), Choose the paint, Apply the paint using a paint sprayer, roller, or brush, Let it dry and cure. |
 |
Related Products
The leading products including Container semi trailer, low bed semi trailer, fuel tank semi trailer, side wall semi trailer, cargo semi trailer, fence semi trailer, box semi trailer, tipper semi trailer, car carrier semi trailer and all types special purpose semi trailer. Sinotruk Shacman CC brands truck tractor, dump truck other truck series together with all spare parts, such as axles, landing gear, springs, suspension, etc.
FAQ
Q1: Can I get some samples?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 set.
Q2: Do you receive customized order?
A: Certainly. Our company has rich production experience and we can customize all kinds of semi-trailers at a reasonable price
Q3: What's the lead time?
A: The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, the time can only be negotiated according to your order quantity at that time.
Q4: What's your warranty terms?
A: Our raw material and OEM parts including axle, suspension,tyre are purchased centralized by ourselves,every part will be inspected strictly. Moreover,advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality..we provide technical support for our products.besides,we also provide you spare parts as long as you need .
Q5: What's your payment terms?
A: TT 30% as deposit, Balance Before shipment by TT or L/C at sight.
Specification
| 2 Axles | 3 Axles 4 Axles |
| Loading Capacity: 20-40T | Loading Capacity: 30-60T Loading Capacity: 40-100T |
| Material: Q345/T700 | Material: Q345/T700 Material: Q345/T700 |
| Upper Plate Thickness: 12mm | Upper Plate Thickness: 12mm Upper Plate Thickness: 18mm |
| Middle Plate Thickness: 6mm | Middle Plate Thickness: 6mm Middle Plate Thickness: 12mm |
| Lower Plate Thickness: 14mm | Lower Plate Thickness: 14mm Lower Plate Thickness: 20mm |
| Height: 500mm | Height: 500mm Height: 500mm |
| L*W*H: 13000mm*2550mm*1800mm | L*W*H: 13000mm*2550mm*1800mm L*W*H: 13000mm*2550mm*1800mm |
| 2 Axles *13/16 Ton Haoyue/FUWA/BPW/Other | 3 Axles *13/16 Ton Haoyue/FUWA/BPW/Other 4 Axles *13/16 Ton Haoyue/FUWA/BPW/Other |
| 12R22.5 (8 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other | 12R22.5 (12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other 12R22.5 (16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other |
| 9.00*22.5 (8 Pieces) Steel/Aluminum | 9.00*22.5 (12 Pieces) Steel/Aluminum 9.00*22.5 (16 Pieces) Steel/Aluminum |
| 90mm*13mm*10/90mm*16mm*10 | 90mm*13mm*10/90mm*16mm*10 90mm*13mm*10/90mm*16mm*10 |
| #50(2")/#90(3.5"), JOST/Other Brand | #50(2")/#90(3.5"), JOST/Other Brand #50(2")/#90(3.5"), JOST/Other Brand |
| 28 Tons Two Speed, JOST/Other Brand | 28 Tons Two Speed, JOST/Other Brand 28 Tons Two Speed, JOST/Other Brand |
| Electrophoresis painting | Electrophoresis painting Electrophoresis painting |
| Description | Picture |
| Brand | Haoyue |
| Application | Coal/ Livestock/Vegetable/Cargo Loading |
| Length*Width*Height | 1300mm*2550mm*1800mm |
| Loading Capacity | 20-40T |
| Loading Capacity | 30-60T |
| Loading Capacity | 40-100T |
| OEM/ODM | Available |
| SKD/CKD Cooperation | Available |
| Goose Type | Available |
| Material | Q345/T700 |
| Upper Plate Thickness | 12mm |
| Upper Plate Thickness | 18mm |
| Middle Plate Thickness | 6mm |
| Middle Plate Thickness | 12mm |
| Lower Plate Thickness | 14mm |
| Lower Plate Thickness | 20mm |
| Height | 500mm |
| L*W*H | 13000mm*2550mm*1800mm |
| Fence Height | 1800mm; can be customized |
| Whatsapp/Tel | +86 191 0068 9141 |
| semitrailer@sdvehiclemaster.com | |
| Selecting the welding method | Determine the appropriate welding technique based on the trailer material and the desired strength and durability of the weld. The most common welding methods for trailers include shielded metal arc welding (SMAW), gas metal arc welding (GMAW), and flux-cored arc welding (FCAW). |
