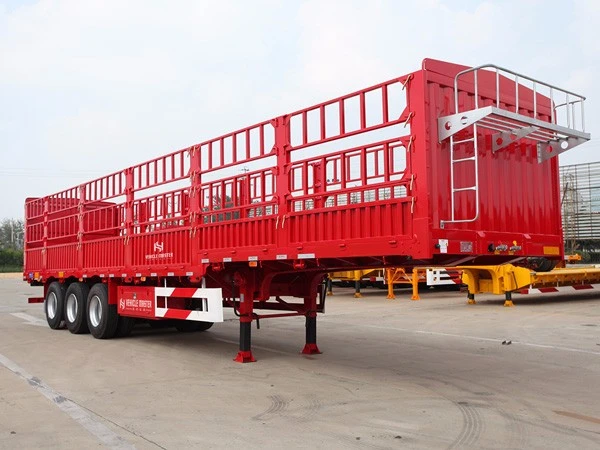

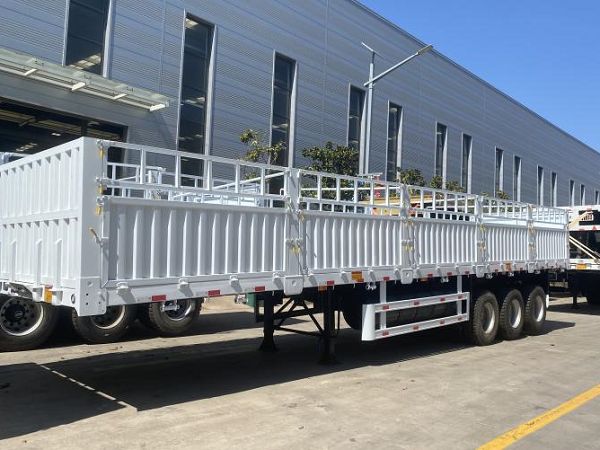

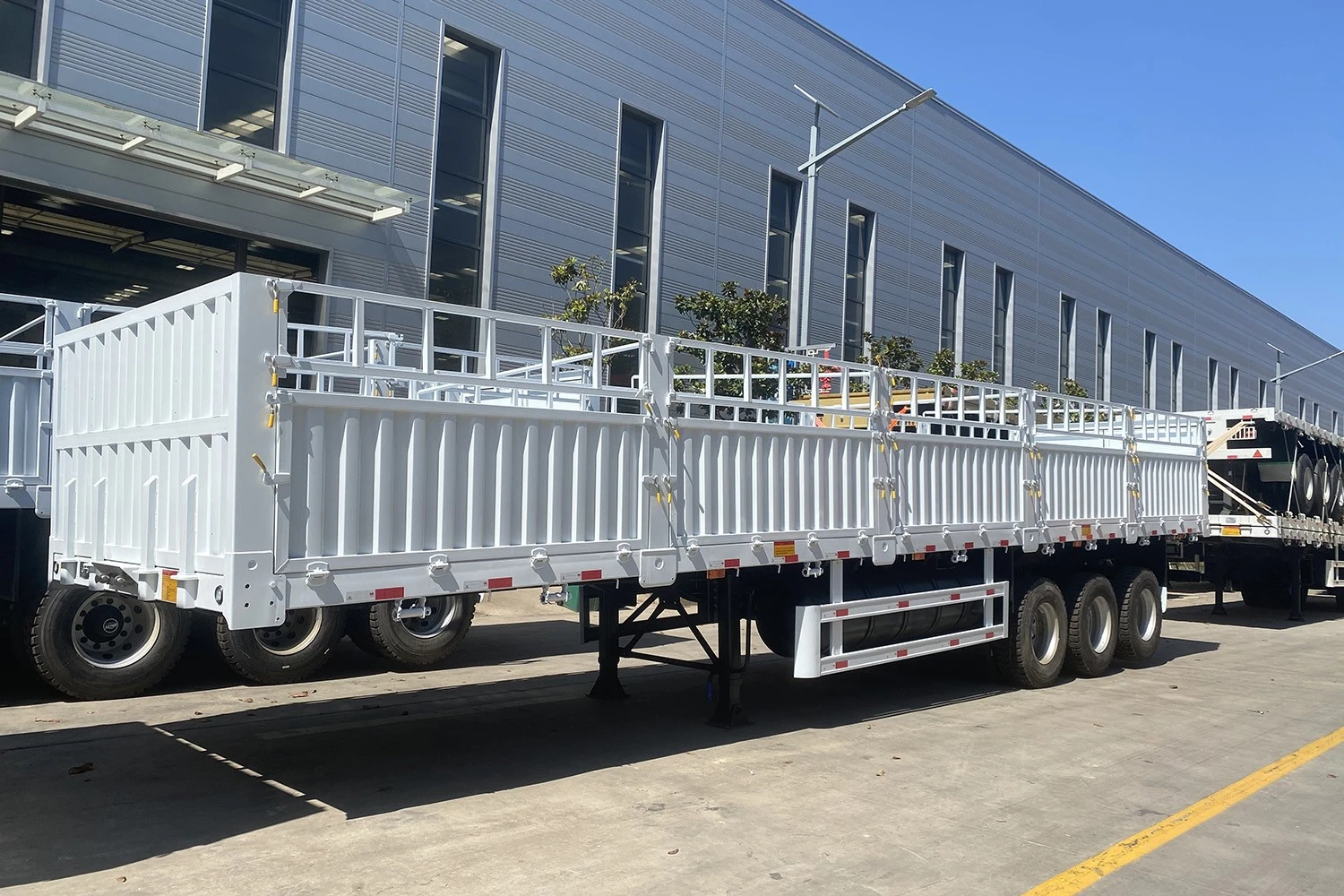

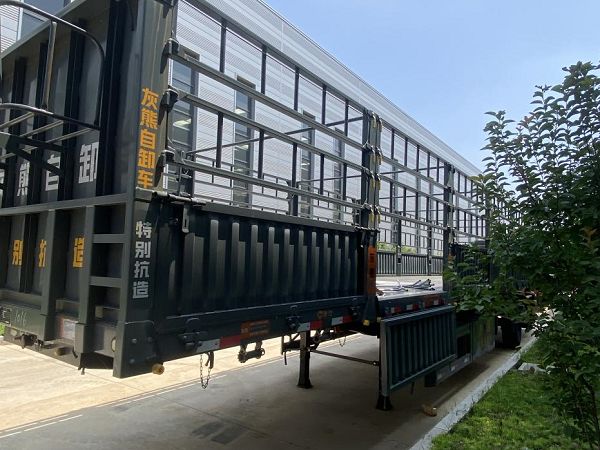

53ft Fence Trailer for Construction
Fence Bulk Cargo Trailer has various features such as light tare weight and high loading capacity. The lightweight fence semi trailer adapts to foreign and domestic design concepts, uses W-shape through beam, reduces whole mass greatly by using finite element analysis under the precondition of ensuring structural strength. Meanwhile, advantage also…
Fence Bulk Cargo Trailer has various features such as light tare weight and high loading capacity. The lightweight fence semi trailer adapts to foreign and domestic design concepts, uses W-shape through beam, reduces whole mass greatly by using finite element analysis under the precondition of ensuring structural strength. Meanwhile, advantage also includes reducing tire wearing aspect and oil consumption.
Here’s parameter for a Fence Bulk Cargo Trailer:
General Specifications:
Trailer Type: Fence Bulk Cargo Trailer
Overall Length: 53 feet
Overall Width: 8.5 feet
Overall Height: 13.6 feet
Tare Weight: 12,500 lbs
Payload Capacity: 47,500 lbs
Gross Vehicle Weight Rating (GVWR): 60,000 lbs
Frame and Construction:
Frame Construction: Steel
Cross Members: 4″ I-beam on 12-inch centers
Main Beams: 14″ I-beam
Side Walls: Steel fences with stakes on 24-inch centers
Floor: 1 1/8-inch laminated hardwood or extruded aluminum
Axles and Suspension:
Axle Type: Tandem axle
Axle Capacity: 22,500 lbs
Suspension: Air ride suspension
Brakes and Wheels:
Braking System: Air brakes with ABS
Wheel Type: Steel wheels
Tire Size: 11R22.5
Tire Quantity: 8 tires
Other Features:
Rear Door: Swing or roll-up door
Landing Gear: Two-speed or single-speed landing gear
Lighting: LED lighting with reflective tape
Tie-downs: Fourteen winches with straps, or cargo bars with hoop and pin locks
Cimc fence semi trailer includes series of semi trailer products such as dropside semi-trailer and cargo semi trailer, uses W-shape through-going beam, increases the contact surface of through-going beam and floor board, reduces floor board sinking caused by cap steel. The tare weight is about 1.5t lighter than standard product.
The Advantages of cimc fence semi trailer
High strength full thickness steel and titanium content of 0.98‰ ensure beam and frame’s strength.
Specially designed anti tire abrasion suspension system prevents tire offset after loading.
42 tough ribs design ensures the safety and carrying capacity.
FAQ
Q1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketing for over 40 years.
Q2. What markets do your vehicle export to?
Europe, North & South America, South-East Asia,Africa, Oceania, Middle East countries etc.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the your purpose,road condition,cargo type,tons of your cargo,dimensions of trailer,quantity etc. The more info. you provide, the more accurate model and price you will get.
Q4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
Specification
| Trailer Type | Fence Bulk Cargo Trailer |
| Overall Length | 53 feet |
| Overall Width | 8.5 feet |
| Overall Height | 13.6 feet |
| Tare Weight | 12,500 lbs |
| Payload Capacity | 47,500 lbs |
| Gross Vehicle Weight Rating (GVWR) | 60,000 lbs |
| Frame Construction | Steel |
| Cross Members | 4" I-beam on 12-inch centers |
| Main Beams | 14" I-beam |
| Side Walls | Steel fences with stakes on 24-inch centers |
| Floor | 1 1/8-inch laminated hardwood or extruded aluminum |
| Axle Type | Tandem axle |
| Axle Capacity | 22,500 lbs |
| Suspension | Air ride suspension |
| Braking System | Air brakes with ABS |
| Wheel Type | Steel wheels |
| Tire Size | 11R22.5 |
| Tire Quantity | 8 tires |
| Rear Door | Swing or roll-up door |
| Landing Gear | Two-speed or single-speed landing gear |
| Lighting | LED lighting with reflective tape |
| Tie-downs | Fourteen winches with straps, or cargo bars with hoop and pin locks |
