High-Strength Steel Side Wall Semi Trailer
A side wall trailer is a type of trailer that is designed with high-strength steel side walls that provide extra protection and security during cargo transportation. Unlike traditional flatbed trailers, side wall trailers have a lot more vertical space on the sides, making it ideal for transporting tall items or cargo loads that need to be protected from…

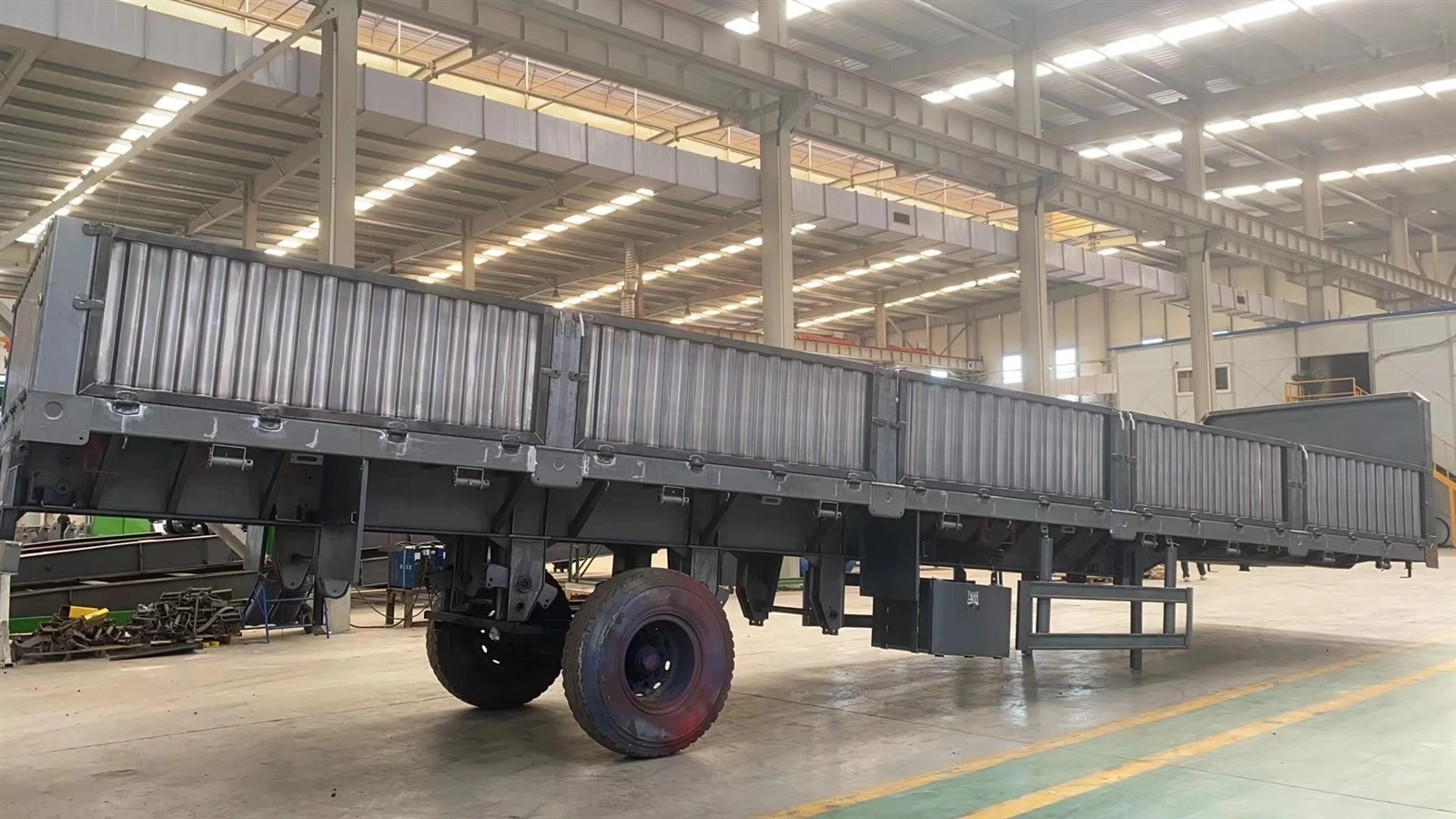

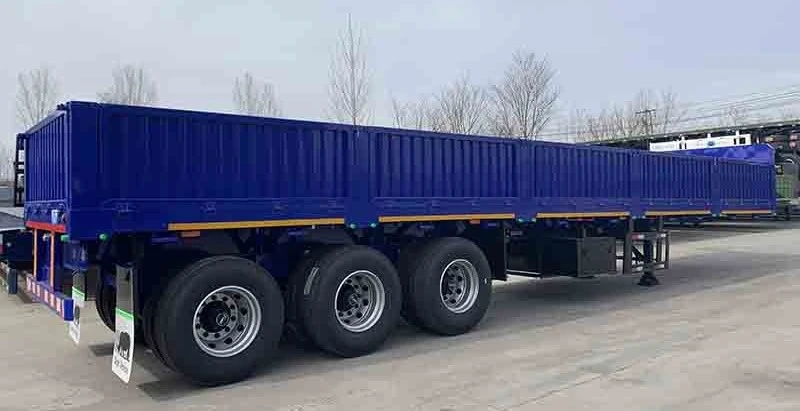

Side Wall Trailer
Introduction
A side wall trailer is a type of trailer that is designed with high-strength steel side walls that provide extra protection and security during cargo transportation. Unlike traditional flatbed trailers, side wall trailers have a lot more vertical space on the sides, making it ideal for transporting tall items or cargo loads that need to be protected from the elements. The side walls have built-in tie-down points for securing cargo, and some models also include detachable or folding side panels for loading and unloading. Side wall trailers can be configured with two or three axles and come with a variety of customizable options such as the number of side doors, type of suspension, tire size, braking system, and many others. These trailers are commonly used in the shipping and logistics industries for transporting a wide range of goods such as construction materials, agricultural products, and packaged goods.
Parameter
| Feature | Parameter |
| Trailer Model | Side Wall Cargo Semi Trailer |
| Overall Dimensions (LxWxH) | 13000mm x 2500mm x 2660mm |
| Axles | 2 or 3 |
| Tire | 11R22.5 or 12R22.5 |
| Suspension | Mechanical or Air suspension |
| King Pin Size | 2 inches or 3.5 inches |
| Landing Gear | Jost |
| Brake System | ABS or non-ABS |
| Main Beam Material | Q345B Steel or T700 |
| Side Wall Material | High strength steel |
| Side Wall Thickness | 1.5mm to 3mm |
| Floor Material | Steel checker plate |
| Floor Thickness | 3mm |
| Ladder | Manual or hydraulic |
| Electrical System | 24V lighting system with LED lights |
| Max Payload | 45,000 kg |
| Tare Weight | 6,500 kg |
| Color | Customizable |
| Side Door | One or two side doors, optional |
| Optional Features | Canvas cover, hydraulic lifting system, spare tire carrier, toolbox, etc. |
If you are interested in our Side Wall Trailer or you wanna know more infos, you can contact us.
Whatsapp/Tel:+86 191 0068 9141
Email:semitrailer@sdvehiclemaster.com
.
Product Details

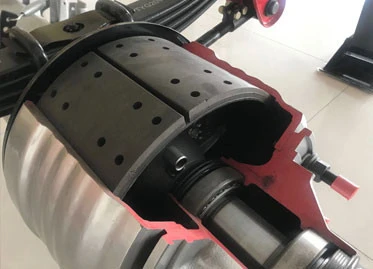

Advanced Axle Performance: Integrated advanced low-alloy axle beam with no welding points; strong capacity and high strength; axles can be free of maintenance up to 3 years or 400,000 kilometers.

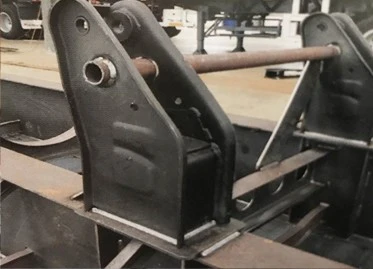

Anti-Tire Abrasion Suspension: Specially designed anti-Tire abrasion suspension system, prevent tire offset after loading, maximally avoid tire abrasion. Meanwhile, Easy to disassemble and maintain.

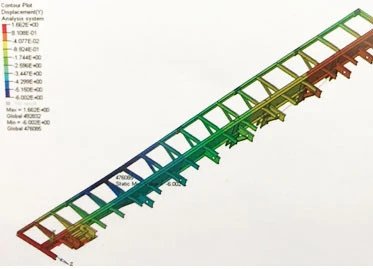

Finite Element Analysis: FEA, aka Finite Element Analysis, the analysis used in calculation of Aircraft material strength, is used here on our vehicle to maximize product performance.

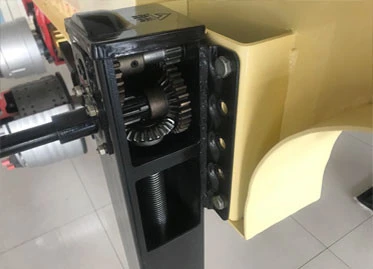

Landing Gear: Haoyue or JOST landing gear can be optioned made in aluminum or steel; designed to work under both high and low temperature in the range of -30℃ to 120 ℃.
National Welding Standard: All the welding is supervised with national highest standards, while automatic welding robots are incorporated. 30 minutes longer than normal welding time ensures the best results.
Rational Analysis Design: Adhering to the concept of uniform force on trailer frame, the 42 rib design ensures the safety and carrying capacity of our trailer.

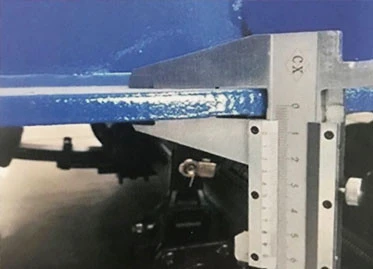

Full Thickness Steel Plate: 10mm steel plate, can be as thick as 10.9mm, special custom-made with 0.98‰ titanium and niobium, which ensures the high strength of the beam and frame.

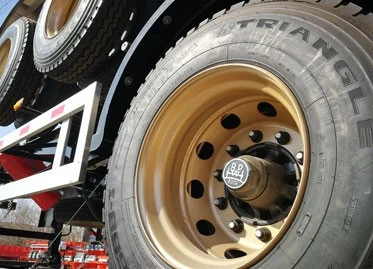

Tires: High quality tire brands such as Double Coin /Linglong/ Michelin/ Triangle/ Bridgestone can be optioned for the best performance.
Advantages
The whole vehicle body is made of high-quality steel, advanced technology, strict production manufacturing, the whole vehicle structure is reasonable, the performance is reliable, the operation is simple, and the appearance is beautiful.

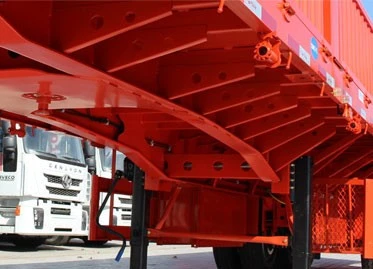

The frame is beam crossing type structure. The longitudinal beam shall be straight or gooseneck type.The web height is from 400mm to 550mm manganese plate welding, the longitudinal beam is automatically submerged welded, the frame is shot peened, and the cross beam is penetrated into the longitudinal beam and welded as a whole.

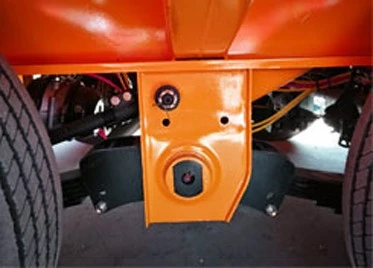

The suspension is a rigid suspension made of non independent steel plates,
It is made of tandem leaf spring and suspension support;The structure is reasonable, with strong rigidity and strength, which is used to support the load and mitigate the impact.

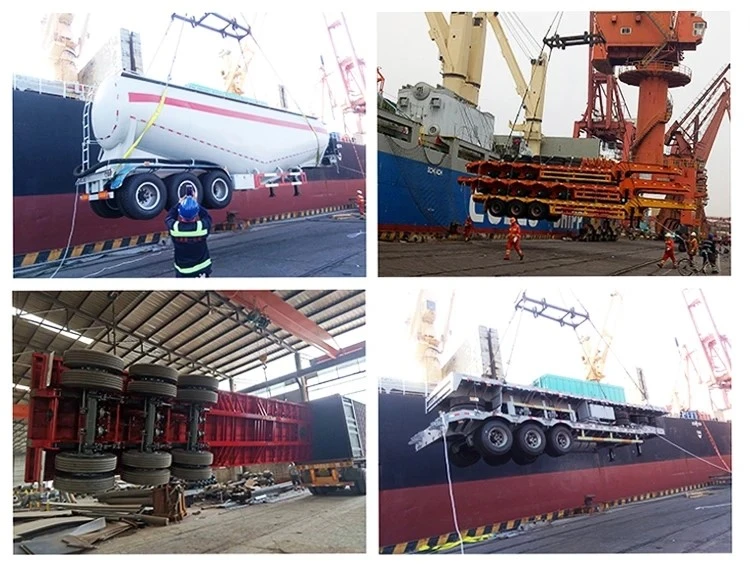

Packaging & Shipping
Nude packing. Small type can be put into 20 '' GP OR 40'' GP; Big type can be carried by bulk carriers or ro-ro ship according to customer's requirements.
Here are separately 4 shipping ways
Bulk—Container—Frame—RO-RO
FAQ
Q1: Can I paint my logo on trailer?
A1: Of course, you can send me your company logo, then we will design it.
Q2. Do you test all your goods before delivery?
A2: Yes, we have 100% test before delivery
Q3. What is your terms of delivery?
A3: EXW, FOB, CFR, CIF, DDU…As for the payment terms,it depends on the total amount.
Q4. What is the average delivery time?
A4: Usually takes about 10-20 days . The specific delivery time depends on the items and the quantity of your order.
Q5. What is the Payment term?
A5: By T/T before shipment or By L/C at sight.
Q6. During shipping, if there is a damage to products, how do you get replacement?
A6:Firstly, we should investigate the reason cause the damage. At the same time, we will claim for the insurance by ourselves or assist the buyer. Secondly we will send the replacement to the buyer. The responsible person for above damage will take charge of the cost of the replacement.
Specification
| Feature | Parameter |
| Trailer Model | Side Wall Cargo Semi Trailer |
| Overall Dimensions (LxWxH) | 13000mm x 2500mm x 2660mm |
| Axles | 2 or 3 |
| Tire | 11R22.5 or 12R22.5 |
| Suspension | Mechanical or Air suspension |
| King Pin Size | 2 inches or 3.5 inches |
| Landing Gear | Jost |
| Brake System | ABS or non-ABS |
| Main Beam Material | Q345B Steel or T700 |
| Side Wall Material | High strength steel |
| Side Wall Thickness | 1.5mm to 3mm |
| Floor Material | Steel checker plate |
| Floor Thickness | 3mm |
| Ladder | Manual or hydraulic |
| Electrical System | 24V lighting system with LED lights |
| Max Payload | 45,000 kg |
| Tare Weight | 6,500 kg |
| Color | Customizable |
| Side Door | One or two side doors, optional |
| Optional Features | Canvas cover, hydraulic lifting system, spare tire carrier, toolbox, etc. |
| Whatsapp/Tel | +86 191 0068 9141 |
| semitrailer@sdvehiclemaster.com | |
| Advanced Axle Performance | Integrated advanced low-alloy axle beam with no welding points; strong capacity and high strength; axles can be free of maintenance up to 3 years or 400,000 kilometers. |
| Anti-Tire Abrasion Suspension | Specially designed anti-Tire abrasion suspension system, prevent tire offset after loading, maximally avoid tire abrasion. Meanwhile, Easy to disassemble and maintain. |
| Finite Element Analysis | FEA, aka Finite Element Analysis, the analysis used in calculation of Aircraft material strength, is used here on our vehicle to maximize product performance. |
| Landing Gear | Haoyue or JOST landing gear can be optioned made in aluminum or steel; designed to work under both high and low temperature in the range of -30℃ to 120 ℃. |
| National Welding Standard | All the welding is supervised with national highest standards, while automatic welding robots are incorporated. 30 minutes longer than normal welding time ensures the best results. |
| Rational Analysis Design | Adhering to the concept of uniform force on trailer frame, the 42 rib design ensures the safety and carrying capacity of our trailer. |
| Full Thickness Steel Plate | 10mm steel plate, can be as thick as 10.9mm, special custom-made with 0.98‰ titanium and niobium, which ensures the high strength of the beam and frame. |
| Tires | High quality tire brands such as Double Coin /Linglong/ Michelin/ Triangle/ Bridgestone can be optioned for the best performance . |
