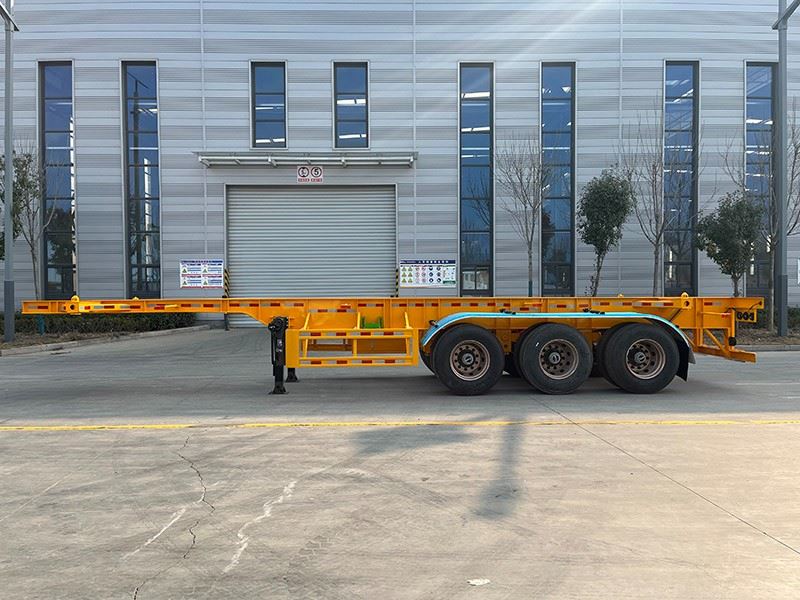

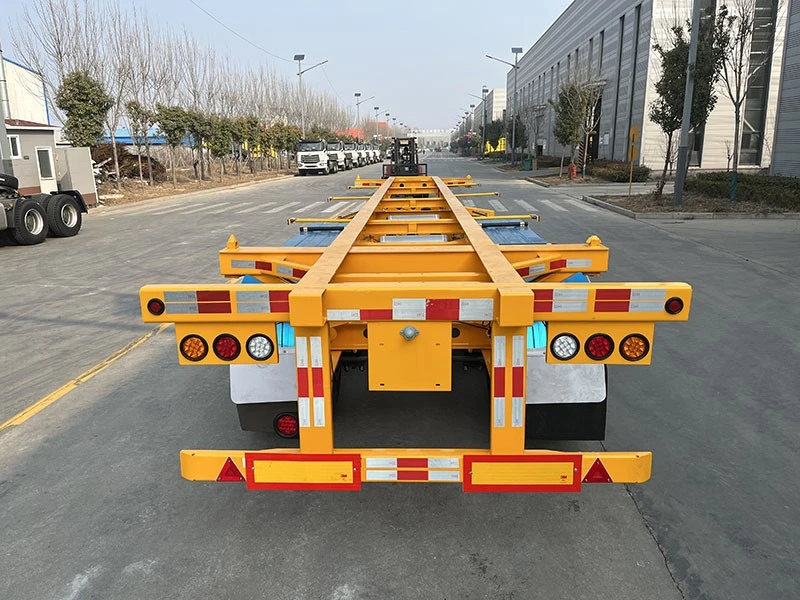

20ft/40ft/45ft Skeleton Semi Trailer

This 20ft/40ft/45ft skeleton semi trailer is manufactured by Haoyue and is designed for efficient container transportation. We offer factory prices and provide customized services according to customer usage requirements, from size to load configurations, making it suitable for various scenarios such as international logistics and port transfer.
As a semi trailer manufacturer, our skeleton semi trailer can be customized to 20/40/45 feet in length based on usage needs, with load capacities ranging from 20 to 80 tons. The number of axles can be selected from 2/3/4, and different specifications of twist locks and suspension systems can be equipped to flexibly meet diverse transportation requirements.

• Long-distance container transportation: Stable carrying of standard containers for efficient cross-regional transportation.
• Port terminal internal transfer: Connecting vessels and yards to improve container loading and unloading efficiency.
• Railway freight container connection: Achieving seamless container transfer between railways and highways.
• Cross-border road container transportation: Compliant with multi-country road standards to ensure smooth international freight.

• Length: 20ft/40ft/45ft (customizable)
• Load Capacity: 20 – 80 tons (customizable)
• Axle Configuration: 2/3/4 axles, each 13/16 tons, FUWA/BPW (customizable)
• Type: Gooseneck or Tandem
• Main Beam: Q345/T700 high-strength steel
• Twist Lock: 4-12 sets
• Suspension Type: Mechanical leaf spring / air suspension
• Tire: 12R22.5 (8/12/16 pieces)
• King Pin: #50 (2") / #90 (3.5"), JOST / other brand
• Landing Gear: 28 tons two-speed, JOST / other brand
• Optional Accessories: Guide rail, stake, toolbox
• Painting: Electrophoresis painting

• As a semi trailer factory, the price range of our skeleton semi trailer is USD 6,000 to USD 15,000. Prices are influenced by various factors, including selected length, air suspension, braking system, and the number of stakes and guide rails. The higher the customization level and the more comprehensive the functions, the higher the price.

If you need a detailed quotation or more configuration information, please contact us via message or WhatsApp().

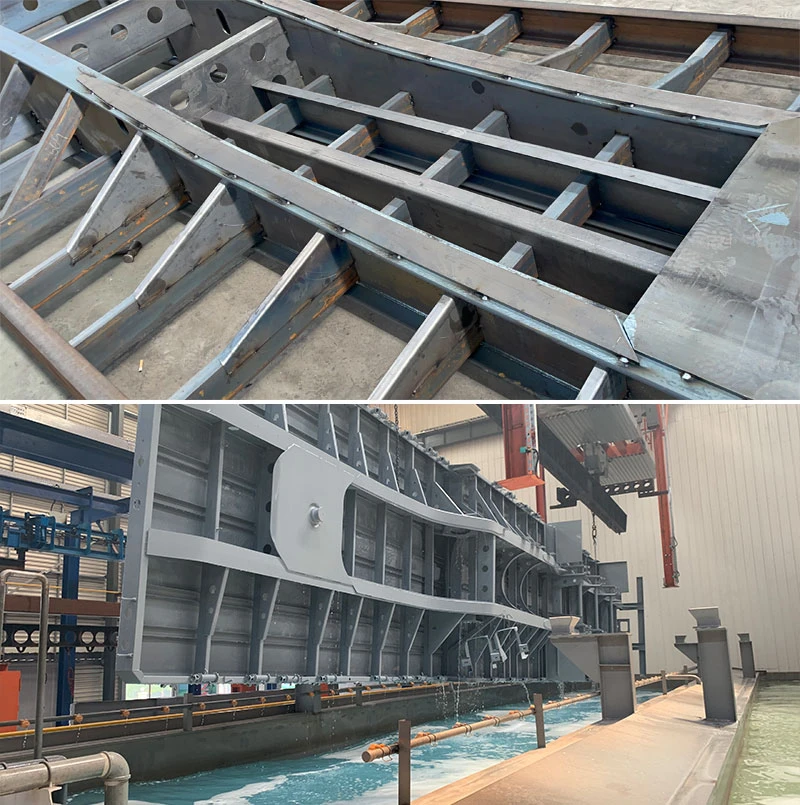

• Automatic Submerged Arc Welding Process: Using high-precision automated equipment to perform continuous welding under a flux layer, ensuring uniform welds on the main beam and connection parts with deep penetration and no porosity. This greatly enhances structural strength and overall rigidity, ensuring driving safety and extending service life.
• Electrophoresis Painting: All metal structural parts undergo electrophoresis treatment before spraying, allowing the paint film to evenly adhere to the metal surface under the action of an electric field, forming a dense protective layer. Electrophoretic coating has strong adhesion, excellent scratch resistance, aging resistance, and rust prevention, effectively preventing chassis and frame corrosion, keeping the trailer clean as new, and reducing later maintenance costs.

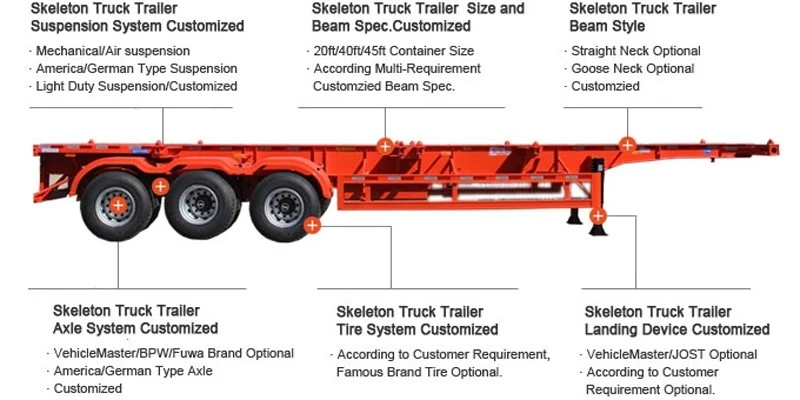

• Length Customization: Supports customization of 20ft, 40ft, and 45ft lengths to precisely match international standard container lengths, ensuring stable loading and avoiding shaking during transportation.

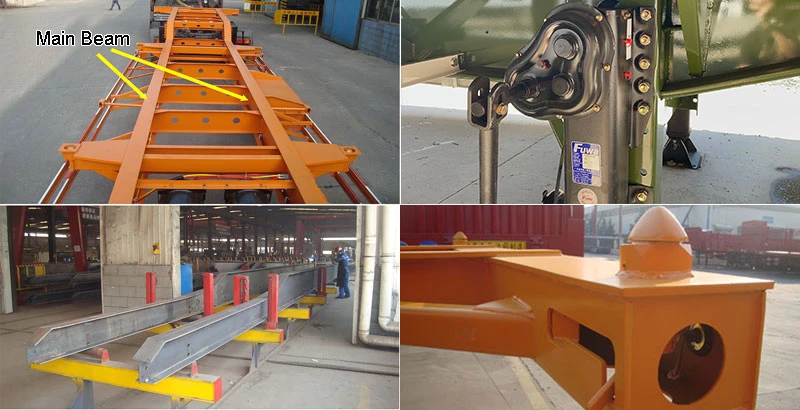

• Main Beam Structure: Made of Q345/T700 high-strength steel for strong deformation resistance, capable of long-term bearing of container weight, ensuring stable operation over time.

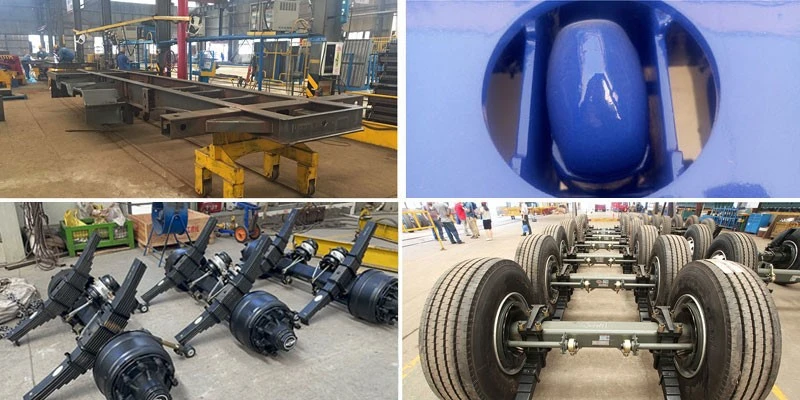

• Axle Configuration: Equipped with 2/3/4 axles according to the length and load of the skeleton semi trailer, with reasonable distribution to improve load capacity and driving stability.
• Twist Locks: Configured with 4-12 standard twist locks based on container specifications, evenly distributing stress points to firmly secure container corner castings and prevent shifting during transport.
• Stakes and Guide Rails: Optional stakes and side guide rails for ports or terminal internal transfer to quickly secure containers and improve loading and unloading efficiency.
• Suspension System: Supports mechanical leaf spring or air suspension. Mechanical suspension is suitable for heavy loads and rough roads; air suspension offers good shock absorption, reduces container bumping, and protects cargo.
• Braking System: Equipped with WABCO air brake system and anti-lock braking system to prevent wheel lock-up during emergency braking, improving handling and safety.

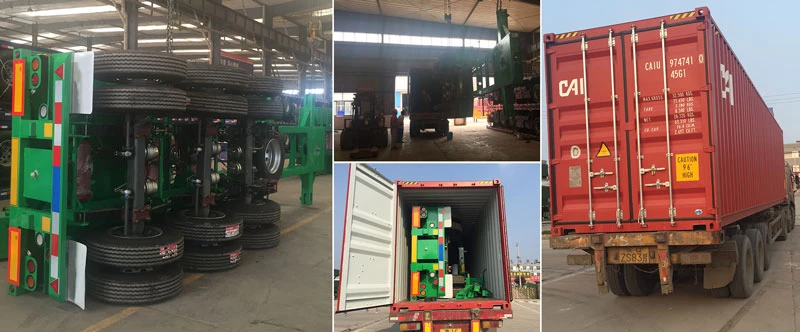

• According to the customer's destination, we communicate with the customer to adopt multiple transportation methods such as road, railway, sea, or combined transport to ensure the equipment is safely and timely delivered to customers worldwide.
• Depending on the trailer specifications, we use standard containers or Ro-Ro ships, and core key components are wrapped with moisture-proof film, foam pads, and wooden frames to avoid collision, scratches, and rust.

By purchasing the 20ft/40ft/45ft Skeleton Semi Trailer from us, you will get factory pricing and diversified customization solutions to meet your usage needs.
If you would like to learn more product details or get a customized quotation, feel free to contact us at any time. We will provide professional services and solutions. You can contact us via website message or WhatsApp().
