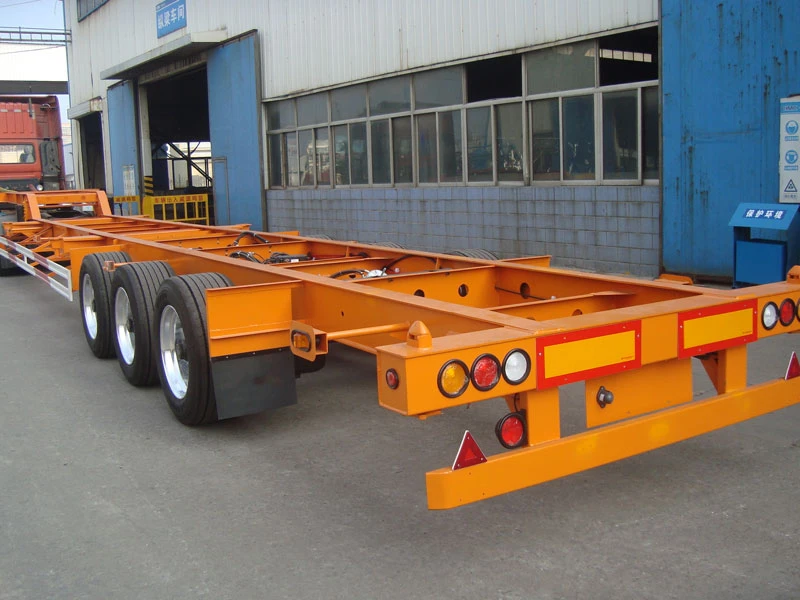

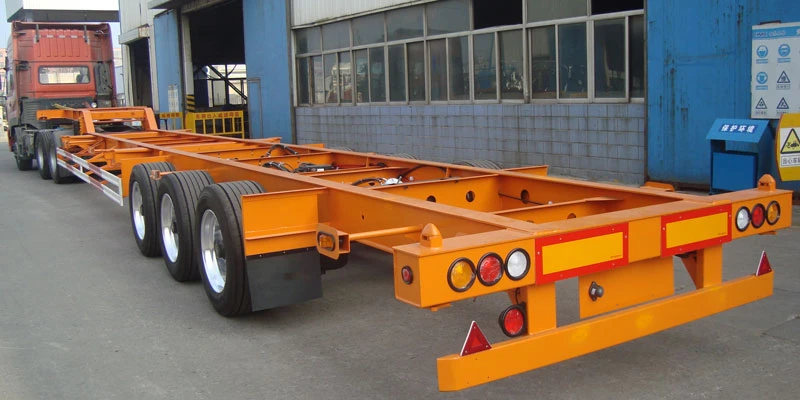

4-Axle 60 Ton 45ft Skeleton Container Trailer

This is a 45ft container chassis trailer for sale, manufactured by Haoyue and offered at factory price. The main beam of our container chassis trailer is precision-made from special high-strength steel, ensuring excellent performance even under heavy loads and complex road conditions.
As a semi-trailer manufacturer, our 45ft container chassis trailer supports customization. Length can be selected as 20/40/45 feet or other specifications, with load capacity covering 20–60 tons, and equipped with 2/3/4 axles according to load. Suspension, adjustable twist-lock positions, and various painting processes are also available to meet personalized needs.

• Container Transport: Designed to fit international standard containers, ensuring efficient and safe cross-border logistics.
• Modular Building Transfer: Provides fast transportation for prefabricated building modules, integrated houses, and other large components.
• Steel Pipe and Long Material Delivery: Carries structural steel and pipes; the chassis structure makes strapping and securing easy.
• Port Internal Shifting: Special structural options available to connect port loading/unloading operations, improving turnaround efficiency.

• Length: 45 feet
• Custom Lengths: 20 feet / 40 feet and others
• Container Compatibility: 20/40/45ft ISO standard containers
• Axle Configuration: 3 axles, 13/16 tons per axle, FUWA/BPW (2/4 axles available depending on trailer length)
• Main Beam Material: Q345 / T700
• Twist Locks: 4–12 sets

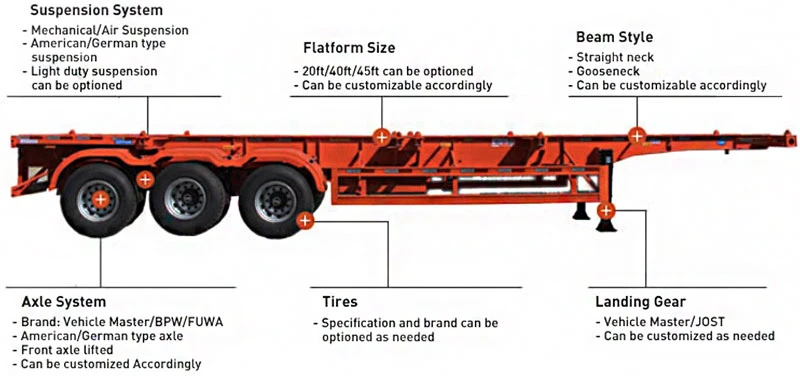

• Suspension System: Mechanical Suspension / Air Suspension (optional)
• Braking System: WABCO Air Brake (ABS optional)
• Tire Size: 12R22.5, radial tires
• Number of Tires: 12 pieces (4 tires per axle)
• King Pin: #50 (2") / #90 (3.5"), JOST / Other Brand
• Landing Gear: 28 Tons Two Speed, JOST / Other Brand
• Painting: Electrophoresis Painting

• As a semi-trailer manufacturer and distributor, our container chassis trailer price ranges from 6000 to 15000 USD. The final price depends on the level of customization: high-strength steel grade, axle type (German/American) and quantity, suspension configuration, painting process, and others. We calculate based on your configuration requirements and still ensure competitive pricing.

If you want to customize a container chassis trailer at factory price or request a quotation, please contact us through website message or WhatsApp().

• Welding: We use automatic submerged arc welding + manual reinforcement welding. The main beam is welded using automatic submerged arc welding, achieving deep penetration, high efficiency, and forming uniform and dense high-strength welds that ensure structural integrity. Critical stress areas and key joints are manually reinforced by senior welders. This combined process provides excellent fatigue resistance and impact strength.

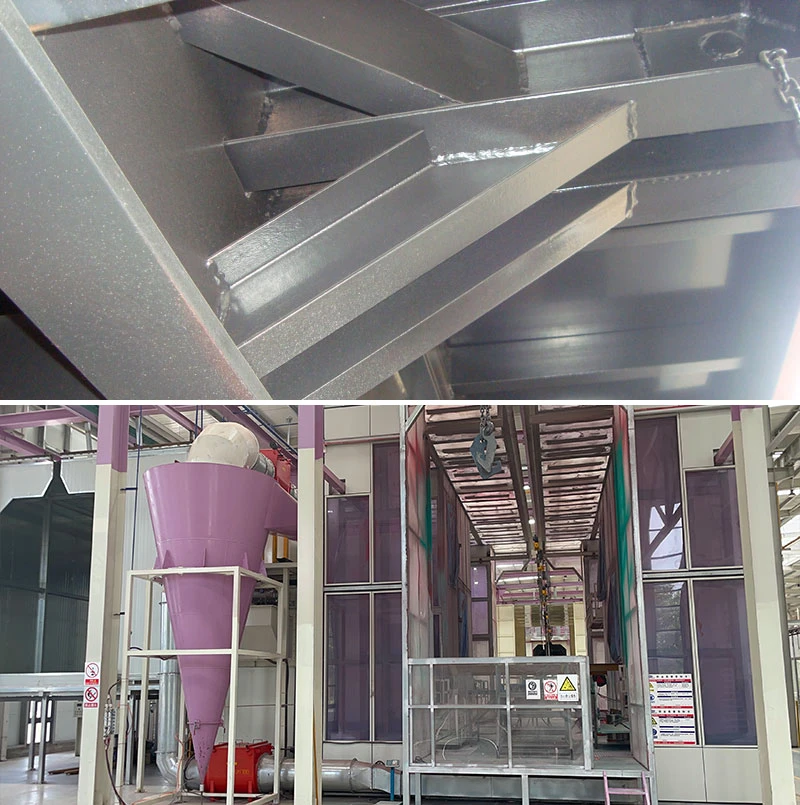

• Painting: Powder-coating is more economical. Powder is electrostatically adsorbed and cured at high temperature, forming a solid, smooth, and corrosion-resistant coating. For customers with higher requirements, we offer electrophoresis painting. This process allows primer penetration into every small gap with strong adhesion, providing long-lasting anti-rust protection and extending service life.

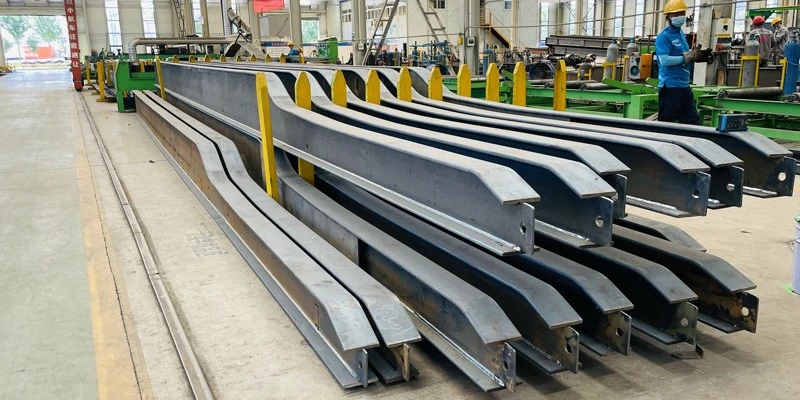

• Main Beam Material: Made from Q345/T700 high-strength steel welded into H-beam, with excellent bending and torsion resistance.

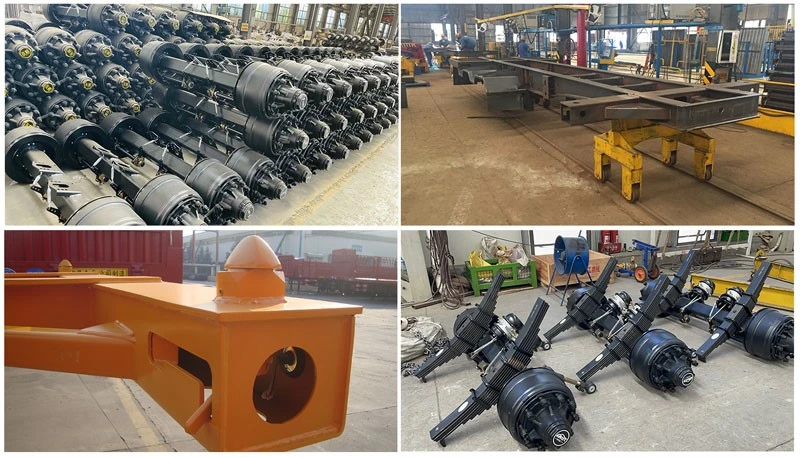

• Axles: Depending on trailer load and length, equipped with 2/3/4 axles, available in German-type or American-type, offering high load capacity and reliability.
• Twist Locks: Equipped with adjustable twist locks to quickly secure containers of different sizes. Once locked, they hold firmly to improve transport safety.

• Posts and Guide Rails: Optional posts and guide rails assist container positioning during port internal operations, improving loading efficiency and supporting high-intensity work environments.

• Tires: Equipped with branded radial tires with deep tread and good heat dissipation, offering excellent wear resistance and reducing replacement frequency.
• Landing Gear: Heavy-duty landing gear provides stable support and easy lifting, ensuring the trailer remains securely supported when unhooked from the tractor.

• Factory-Direct Pricing: As a semi-trailer manufacturer, we provide factory-direct prices to ensure the most competitive cost.
• Free Customization: We offer professional customization design services to ensure the trailer configuration matches your operation needs.
• One-Year Warranty: We provide a one-year free warranty starting from the delivery date. Core components with manufacturing defects are repaired or replaced for free.
• Lifetime Spare Parts Supply: We provide lifetime supply of original spare parts to ensure perfect compatibility and long-term stable operation with reduced maintenance cost.

Choosing our 45ft container chassis trailer allows you to enjoy factory-direct pricing and customized service. To inquire about detailed configuration or obtain a real-time quotation, feel free to contact us via WhatsApp().

Q1: Can a 45ft chassis carry two 20ft containers?
A: Yes. By adjusting the twist-lock positions on the chassis, it can safely carry two 20ft standard containers, enabling flexible loading options.
Q2: How to enhance anti-corrosion performance for coastal environments?
A: We recommend electrophoresis painting combined with steel pre-treatment, forming dual protection against salt-spray corrosion and extending service life.
Q3: Can oversize containers pass road approval?
A: A telescopic chassis can be customized to adjust dimensions. We also provide compliance certificates to help clients complete over-limit transport approval for legal road use.
Q4: Can you customize the chassis for non-standard container sizes?
A: Yes. We offer full customization. Provide your container or cargo dimensions and weight, and our engineers will evaluate and design a tailored solution.
Q5: How is the maneuverability for frequent turning inside a port?
A: For port operations, we offer optimized steering systems (such as optional steering axles) that significantly reduce turning radius and improve maneuverability in confined spaces.
