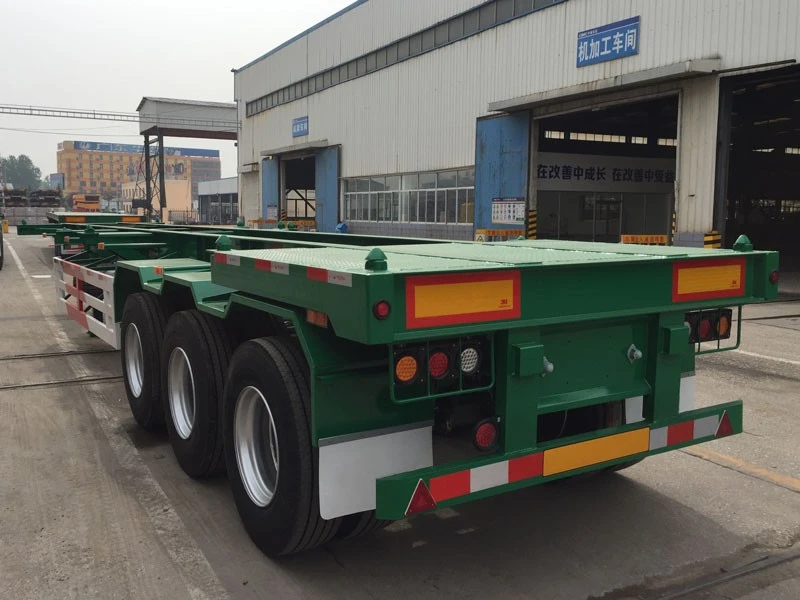

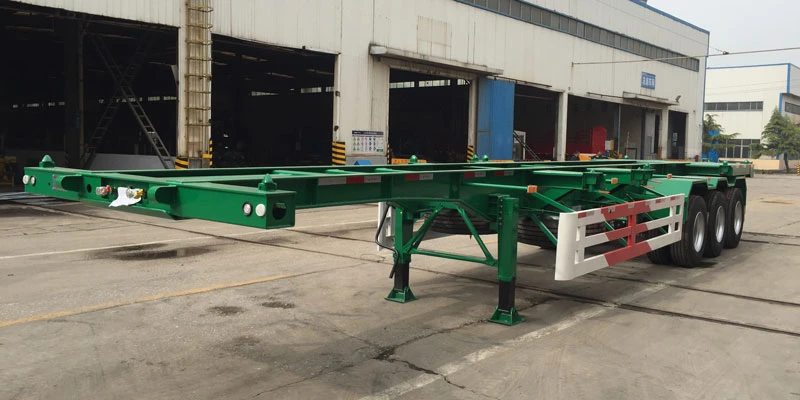

40ft Skeleton Trailer For Transport Containers

This 40ft Skeleton Trailer is designed for container cargo transportation in ports, logistics parks, and other application scenarios. The 40ft Skeleton Trailer manufactured by Haoyue is sold at factory prices. It features stable quality, a lightweight high-strength steel frame structure, low dead weight, and strong load capacity. It is specially designed for transporting standard 20ft/40ft containers.
As a semi trailer factory, Haoyue provides diversified customization services. According to customers' transportation conditions and local regulations, we can adjust the trailer configuration. The length supports 20/40/45ft customization, the load capacity covers 20-60 tons, and it can be equipped with 2/3/4 axles. We also provide customized options such as twist lock upgrades, air suspension, and steering axles to meet container transportation requirements in different countries.

Application Scenarios

• Container Mainline Transportation: Long-distance transportation of standard 20ft/40ft sea containers with compliance, stability, and high efficiency.
• Port Internal Transfer Operations: Used for container scheduling, yard transfer, and internal transportation operations in ports.
• Logistics Park Container Transfer: Used for container collection, transfer, and short-distance delivery in logistics centers.
• Cross-Border Container Transportation: Suitable for cross-border logistics transportation. The lightweight design helps reduce fuel consumption and improve economic efficiency.

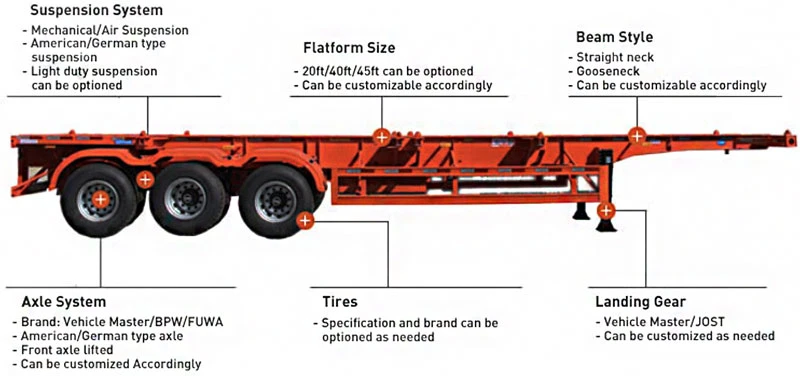

Specifications

• Product Model: 40ft Skeleton Trailer for Transport Containers
• Standard Compatible Container: 40ft standard container (compatible with 20ft container)
• Standard Axles: 3 axles (2 axles/4 axles customizable)
• Axle Brand: FUWA/BPW, 13/16 tons
• Standard Load Capacity: 40 tons (30-60 tons customizable)
• Overall Length: 12400mm (20-45ft specifications customizable)
• Overall Width: 2480mm (legal width extension customization available)
• Main Beam Material: Q345/T700 high-strength steel
• Main Beam Structure: Through-type double-layer main beam (reinforced structure optional)
• King Pin : 50#/90#, JOST
• Brake System: WABCO air brake + ABS
• Suspension System: Leaf spring suspension (air suspension optional)
• Tires: 12.00R22.5 all-steel radial tires
• Tire Quantity: 12 tires
• Twist Locks: 12 sets (position and quantity adjustable according to requirements)
• Protection Structure: Rear anti-collision beam, side safety guardrails
• Other Safety Configurations: High-visibility reflective signs, dedicated rear driving lights

Price Range
The price range of our 40ft Skeleton Trailer is USD 7,000-13,500.
The overall trailer price is mainly affected by factors such as trailer length, axle configuration, steel manufacturing process, suspension type, component selection, customized modifications, and purchase quantity.

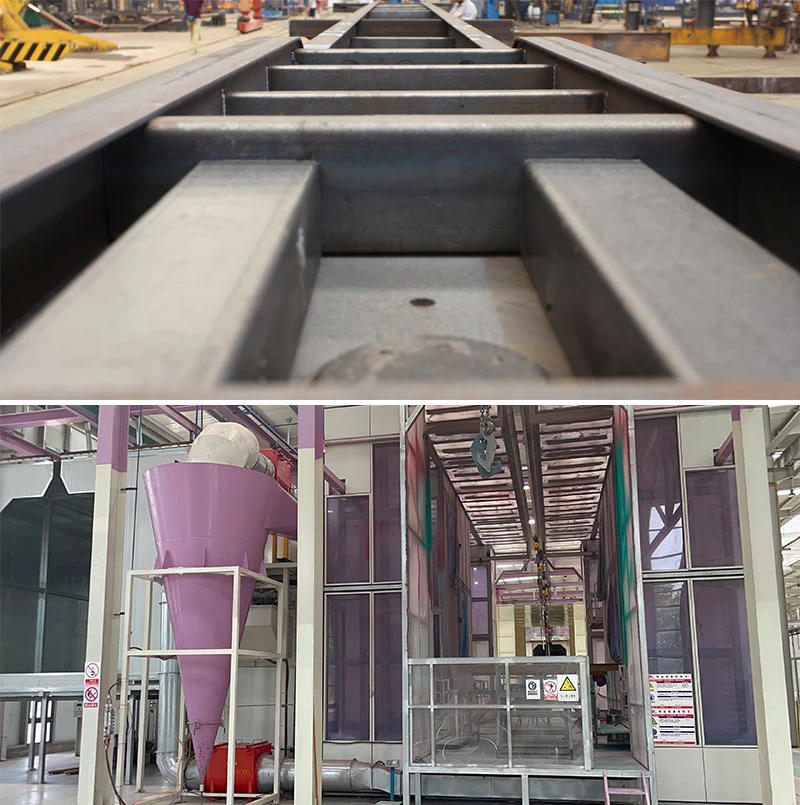

Manufacturing Process

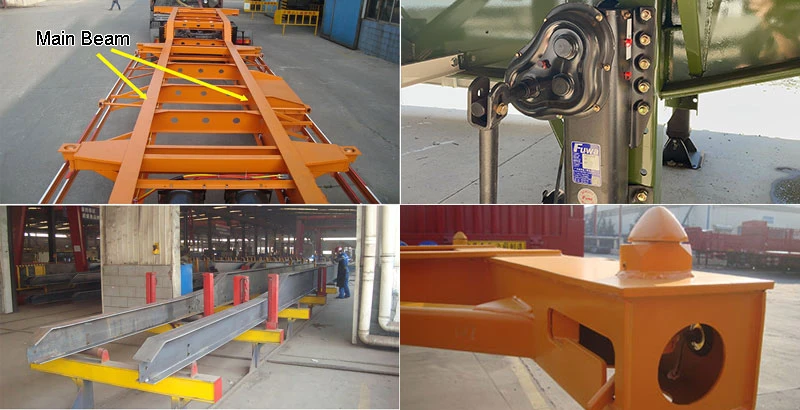

• Welding Process: The main beam adopts an automatic submerged arc welding integrated forming process. The weld seams are uniform, dense, and evenly stressed, eliminating problems such as false welding and cracking. Other parts are manually welded by experienced welders. The overall frame has strong rigidity and excellent torsion resistance, maintaining stable performance without deformation under long-term heavy container loads.
• Painting Process: The entire trailer undergoes strict rust removal, oil removal, and phosphating pretreatment. The polyurethane combination painting technology is applied to provide all-around corrosion protection without dead corners. The paint film has strong adhesion, salt spray resistance, and corrosion resistance, allowing the trailer to adapt to harsh working conditions such as humid ports and marine environments while maintaining long-term appearance and performance. A more advanced electrophoresis painting option is also available.

Main Features

• High-Strength Material: We have established long-term cooperation with top steel suppliers. The trailer uses high-strength steel materials, achieving lower dead weight and higher load capacity, effectively reducing transportation fuel consumption and improving operating profits.
• International Brand Components: Equipped with well-known components such as FUWA/BPW axles, WABCO braking systems, and JOST king pins, ensuring stable operation, low failure rates, and adaptability to complex transportation conditions in ports worldwide.
• Twist Locks: Equipped with high-quality mechanical twist locks featuring precise positioning and reliable locking. They firmly secure containers and prevent container sliding or shifting during transportation.
• Frame Structure: The skeleton frame hollow design reduces dead weight, improves heat dissipation, prevents dust and water accumulation, and enables faster container loading and unloading, meeting the requirements of high-frequency port transfer operations.
• Brake System: Standard dual-circuit air brake system with ABS provides sensitive and balanced braking performance. It ensures stable braking during heavy-load transportation and effectively reduces safety risks during high-speed and short-distance transfer operations.

Why Choose Our Skeleton Trailer

• Factory Direct Sales: We are a semi trailer factory with no middleman markup, offering more competitive prices. We can also strictly control production quality and delivery time.
• After-Sales Service: Our semi trailers come with a one-year free warranty service and long-term supply of original spare parts, providing fast overseas after-sales maintenance support.
• Multiple Payment Methods: We support mainstream international trade payment methods such as L/C and T/T. Transactions are safe, compliant, and suitable for settlement requirements of customers worldwide.

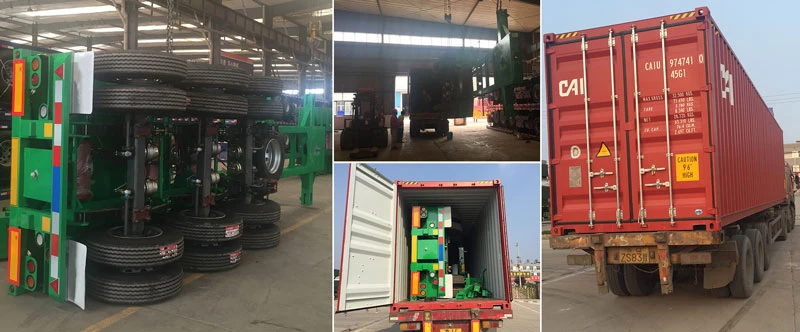

• Worry-Free Transportation: With a mature international logistics system, we provide one-stop services including container loading, ocean shipping, and customs clearance. We track the cargo throughout the process to ensure safe and timely delivery.

Contact Us
Want to purchase a high cost-performance 40ft container skeleton trailer and enjoy factory-direct prices and customized services?
Haoyue is your best choice. We have 40 years of semi trailer manufacturing and export experience, providing excellent quality and competitive prices.
For accurate quotations, more product pictures, and customized solutions, please contact us via WhatsApp at any time. Our professional team will provide one-on-one service throughout the entire process.
