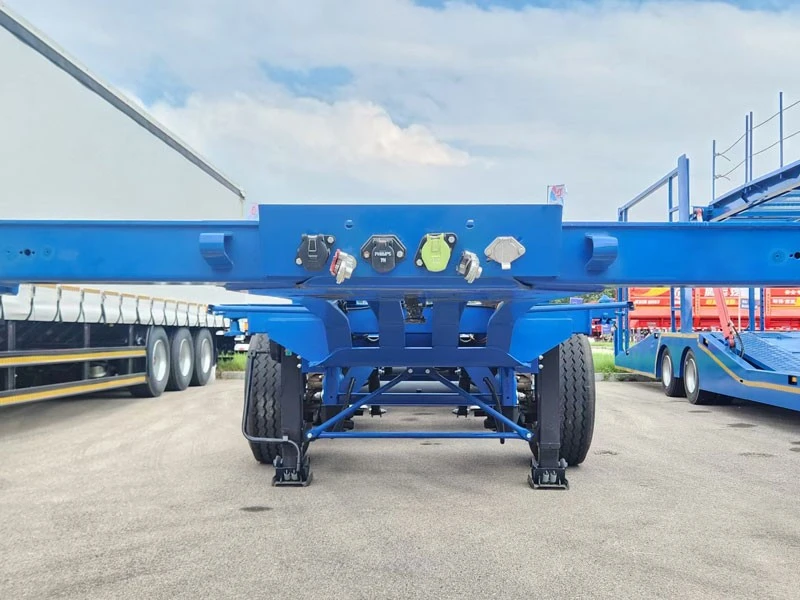

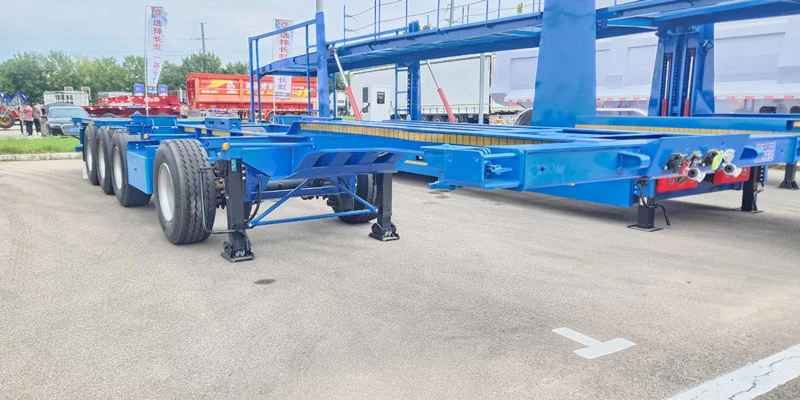

Intermodal Container Chassis Trailer for Sale

This is an intermodal container chassis trailer for sale. As a semi trailer manufacturer, we supply this chassis trailer at factory price and offer customized production according to customer requirements. Length options include 20ft/40ft/45ft, axle configurations include 2/3/4 axles, loading capacity ranges from 20 to 80 tons, and customization options are available for container twist locks, guide rails, and more.
Our intermodal container chassis trailer is built with high-quality raw materials and advanced manufacturing technology, offering outstanding quality and reliable performance. It is widely used in port container transfer, railway freight connection, long-haul road transport, and logistics yard dispatching, providing a solid guarantee for the efficient intermodal transport of containers.

• Container Intermodal Transport: Enables seamless transfer of containers across sea, rail, and road.
• Long-Distance Hauling: Supports international and cross-border container transport.
• Yard Container Management: Efficient loading, unloading, and movement of containers within logistics parks or terminals.

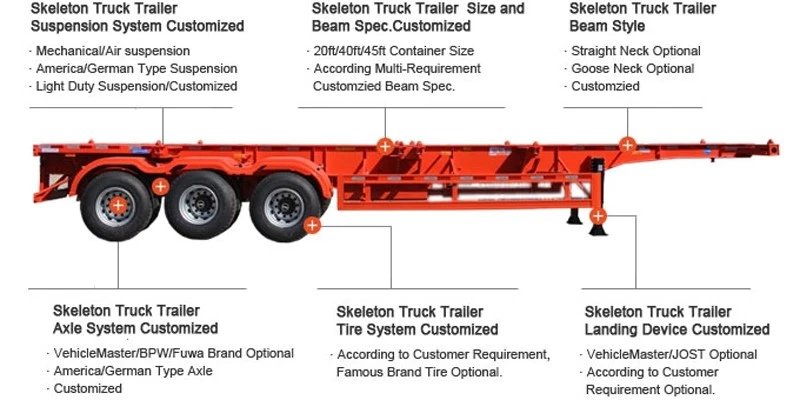

• Length: 20ft / 40ft / 45ft (customizable)
• Axle Configuration: 2/3/4 axles, each rated for 13/16 tons, FUWA/BPW (customizable)
• Loading Capacity: 20-80 tons (customizable)
• Type: Gooseneck or Tandem
• Main Beam Material: Q345 / T700 high-strength steel
• Extendable Design: Telescopic or fixed length
• Suspension System: Mechanical / Air Suspension
• Tires: 12R22.5 (8/12/16 pieces)
• Twist Locks: 4-12 sets
• Leaf Spring: 90mm*13mm*10 pcs / 90mm*16mm*10 pcs
• King Pin: #50 (2") / #90 (3.5")
• Landing Gear: 28 Tons Two-Speed, JOST / Other Brand
• Painting: Electrophoresis Painting

• The price of this intermodal container chassis trailer ranges from USD 6,500 to USD 20,000. Higher costs may apply for longer chassis, telescopic designs, advanced locking systems, air suspension, or other specialized customizations.

If you would like to get more details on available specifications or purchase this intermodal container chassis trailer at factory price, feel free to leave us a message or contact us via WhatsApp().

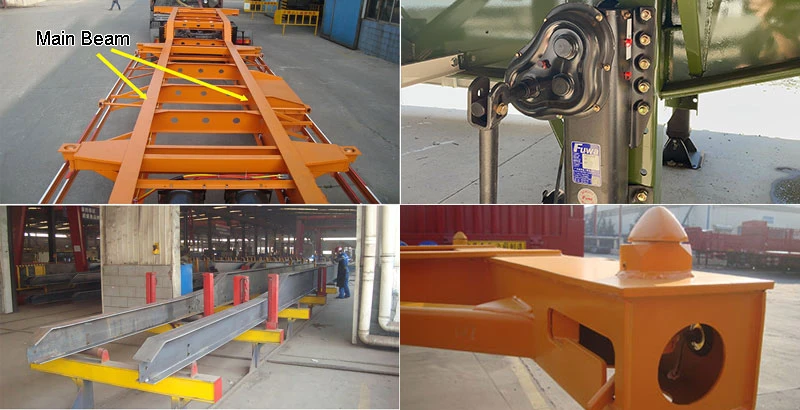

• High-Strength Steel: The main beam is made from Q345/T700 steel with excellent bending and compression resistance. Crossbeams and longitudinal beams are also crafted from top-grade steel with superior toughness, ensuring the structure remains stable and undeformed even under harsh road conditions.
• Welding Process: We use advanced automatic submerged arc welding (SAW). This method concentrates heat effectively, creating high-density and high-strength weld seams deep into the metal. It eliminates defects like air holes or slag inclusions and significantly improves the rigidity and durability of the chassis, even under long-term heavy-duty container transport.

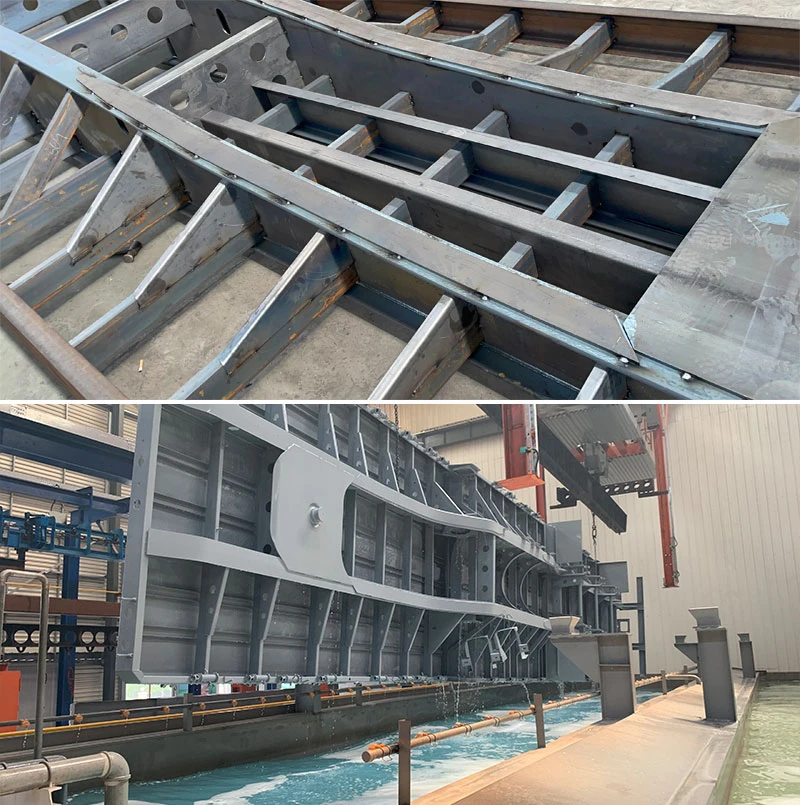

• Painting Process: The trailer undergoes a premium electrophoresis coating process. After degreasing and phosphating, the trailer is immersed in an electrophoretic pool where the paint uniformly adheres under an electric field, forming a dense and glossy layer. This provides exceptional rust and corrosion resistance, ensuring long-lasting appearance and protection against environmental exposure.

• Customizable Length: Supports 20ft/40ft/45ft and other custom lengths to match different container sizes. The trailer can also be tailored for special transport scenarios.

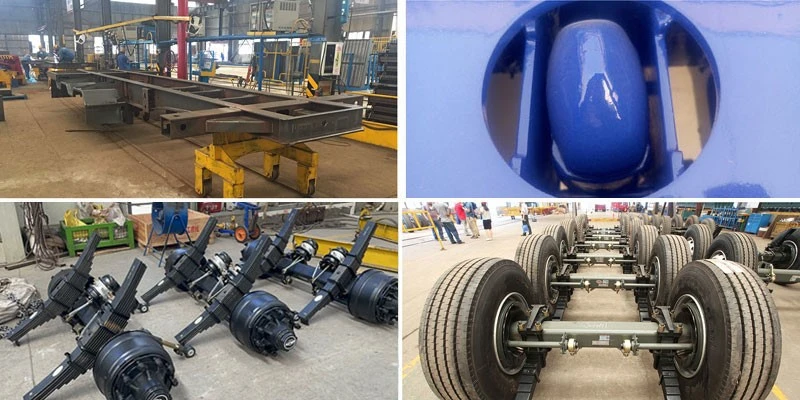

• Axles: Equipped with high-performance axles, capable of withstanding heavy loads with smooth operation. Available in 2, 3, or 4 axle setups based on the required load capacity.
• Telescopic Design: Optional telescopic frame allows flexible adjustment of chassis length to support multiple container sizes, improving equipment utilization and efficiency.
• Twist Locks: 4-12 ISO-standard twist locks tightly engage with container corner castings, offering strong locking performance and easy operation to prevent container shifting during transit.
• Guide Rails and Posts: Optional posts and rails are available for port or terminal use, especially for short-distance container shuttling. These enhance temporary container stabilization and improve loading efficiency.
• Suspension Options: Mechanical suspension is cost-effective and durable – ideal for heavy loads. Air suspension provides better shock absorption, reducing cargo vibration and protecting sensitive goods.

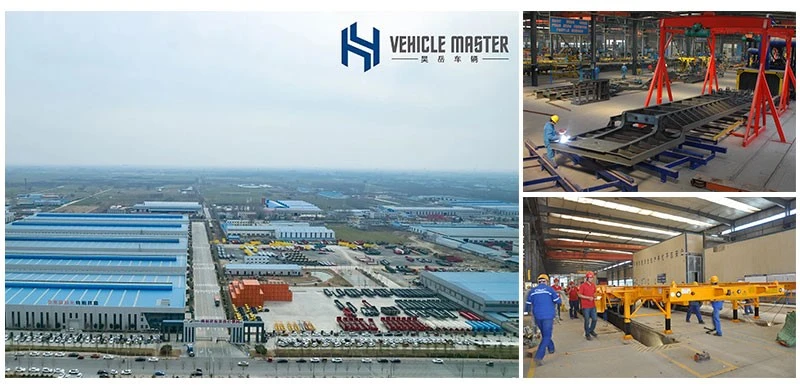

• Superior Quality: We insist on using high-grade materials and advanced production technology. Every trailer undergoes strict quality inspection before delivery to ensure outstanding performance and durability.
• Tailored Customization: We offer customized solutions based on your usage scenario, component preferences, functional needs, and budget – from dimensions to accessories.
• Comprehensive After-Sales Service: All of our trailers include a one-year warranty, with long-term spare parts supply and technical support, keeping your trailer in excellent working condition.
• Competitive Pricing: As a direct manufacturer and distributor, we provide factory prices with no middlemen, ensuring excellent return on investment and cost-efficiency for our customers.

If you are looking to purchase this intermodal container chassis trailer at factory price or want to customize it based on your transport needs, feel free to reach out. We will provide a detailed product plan and quotation to support your logistics operations with reliability and efficiency. Leave a message or contact us on WhatsApp().
