Wind Blade Truck Trailer 30-100 Ton
Wind blade transport trailer is a trailer used to transport wind power blades. The biggest feature of the wind turbine blade trailer is that it is super long and has longitudinal telescopic function. Due to its oversized length, it is very difficult to maneuver. In order to overcome the difficulty of driving in curves, the wind turbine blade trailer is…
Wind blade transport trailer is a trailer used to transport wind power blades. The biggest feature of the wind turbine blade trailer is that it is super long and has longitudinal telescopic function. Due to its oversized length, it is very difficult to maneuver. In order to overcome the difficulty of driving in curves, the wind turbine blade trailer is usually equipped with hydraulic steering system. Wind Blade Truck Trailer has the ability to manuever on cuvey routes. The blade can be lifted up to 60 degrees, as well as roated horizontally up to 110 degrees according to diffrerent needs. This will allow the trailer to turn and avoid obsticles on narrow streets and mountain roads.
|
Material: |
carbon steel |
|
Capacity: |
30T, 40T, 50T, 60T, 80T, 100T |
|
Number of Axles: |
2 axles, 3 axles, 4 axles |
|
King Pin: |
2″, 3.5″, JOST |
|
Tire: |
12R22.5, 1100R20, 1200R20 |
|
Material: |
carbon steel |
|
FOB Price: |
USD 4,2000 – USD 51,000 |
|
Production Time: |
Approximately 30 Working Days |
|
Packaging: |
SKD/CKD |
|
Shipping Method: |
Sea/Land |
|
Material: |
Q345B (Customizable) |
|
Axles: |
1, 2, 3 (Customizable) |
|
Warranty: |
2 Year Warranty on Main Structure |
|
Brand: |
Haoyue |
Generally speaking, there are three kinds of wind blade transport trailers: ordinary pull-out wind blade transport trailer, Axis wind blade transport trailer, and lifting wind blade transport trailer.
The ordinary pull-out wind turbine blade trailer is somewhat similar to the lowbed trailer, but its main beam adopts the buckle box design. The main beam adjusts the trailer length by stretching to adapt to different lengths of wind blade transportation. The maximum length of the pull-out wind turbine blade trailer can reach 50 meters.

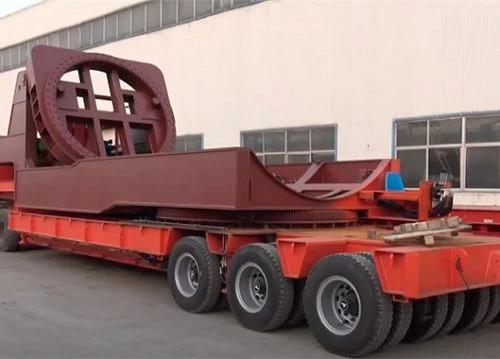

The biggest difference between the axis wind turbine blade trailer and the ordinary pull-out wind turbine blade trailer is that the chassis adopts the hydraulic axis design, which makes the cargo platform lower and the steering more flexible.

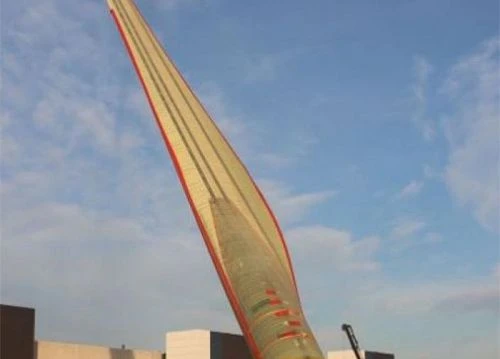

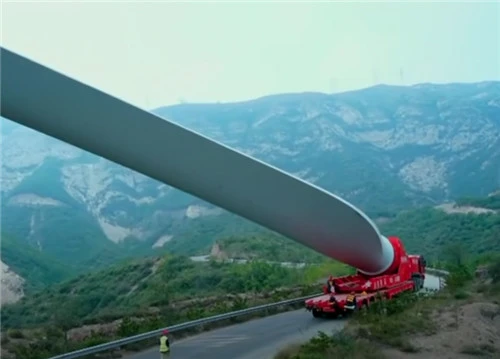

Lifting wind turbine blade trailer refers to the trailer equipped with a hydraulic lifting device. It mainly aims at difficult situation of wind blade transport in mountain areas. On open flat road, the wind blade lies flat for transport. When extremely small turning radius is encountered in mountains, the wind blade is lifted as high as 5 to 10 meters to shorten the length of the trailer and bypass obstacles.
Packaging & delivery
1. Bulk Packing and Bulk Transportation
2. Bulk Packing and RO-RO Transportation
3. Trailer Whole Body Waxing
FAQ
1. What markets do your vehicle export to?
Europe, North & South America, South-East Asia,Africa, Oceanica, Middle East countries etc.
2. Does your company has your own factory?
Yes, we have a factory in Liangshan, Shandong Province, which is in manufacturing semi trailers for decades. We have our own R&D team, with years experiences, we’ve became the leading manufacturer of semi-trailers in China.
3. Could you special design and produce for me?
Definitely! We have all kinds of professional engineers, could design and produce special trailers according to your requirements.
4. What information should I let you know if I want to get a quotation?
Please let us know the your purpose,road condition,cargo type,tons of your cargo,dimensions of trailer,quantity etc. The more info. you provide, the more accurate model and price you will get.
Specification
| Material: | carbon steel |
| Capacity: | 30T, 40T, 50T, 60T, 80T, 100T |
| Number of Axles: | 2 axles, 3 axles, 4 axles |
| King Pin: | 2", 3.5", JOST |
| Tire: | 12R22.5, 1100R20, 1200R20 |
| FOB Price: | USD 4,2000 - USD 51,000 |
| Production Time: | Approximately 30 Working Days |
| Packaging: | SKD/CKD |
| Shipping Method: | Sea/Land |
| Material: | Q345B (Customizable) |
| Axles: | 1, 2, 3 (Customizable) |
| Warranty: | 2 Year Warranty on Main Structure |
| Brand: | Haoyue |
Request a Quotation
Send us your destination port and any special requirements. Our team reviews the configuration and prepares a quotation.
