Fuel Tanker Semi Trailer for Gasoline & Chemicals

Fuel Tank Trailers

Fuel tanker semi trailer is usually considered more complex and requires higher quality manufacturing due to its structure. It is often used to transport hazardous liquid medium such as gasoline and chemicals, which is another reason why it is more expensive than most of other regular types of semi trailers. Haoyue specializes in different kinds of fuel tank semi trailers such as carbon, stainless steel, and aluminum tank semi trailers. All factories from Haoyue always maintains the highest standard, which allows high quality and trustworthy fuel tank semi trailer.

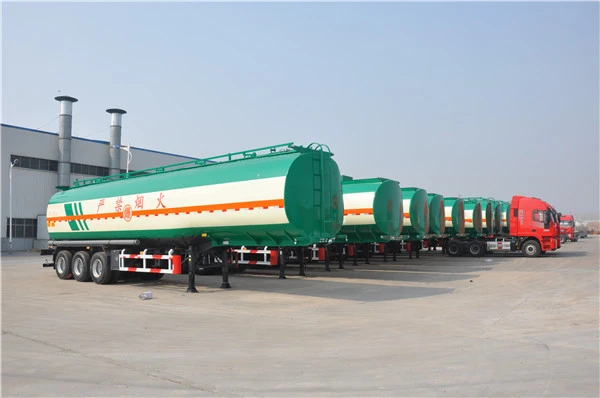

Green and cream tanker trailers in the factory yard

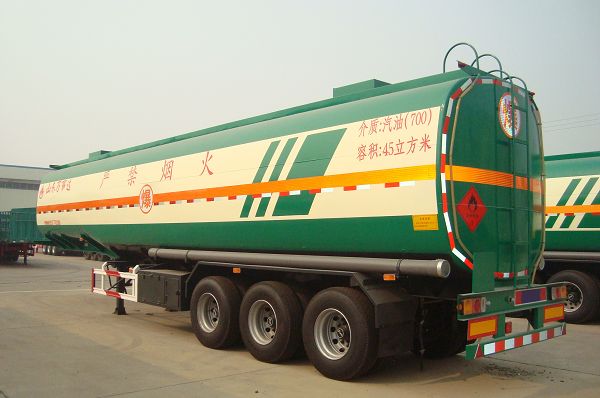

Rear three-quarter view of a green tanker trailer

Dimension of Fuel Tank Semi Trailer

The dimension of fuel tanker trailers usually depends on the volume of the tank body customer needs. It can be customized accordingly. Take the example of our customer from UEA, who needs 45,000 liter tank capacity, the dimension of the tank semi trailer is:

Length: 11,000mm

Width: 2,500mm

Height: 3,800mm

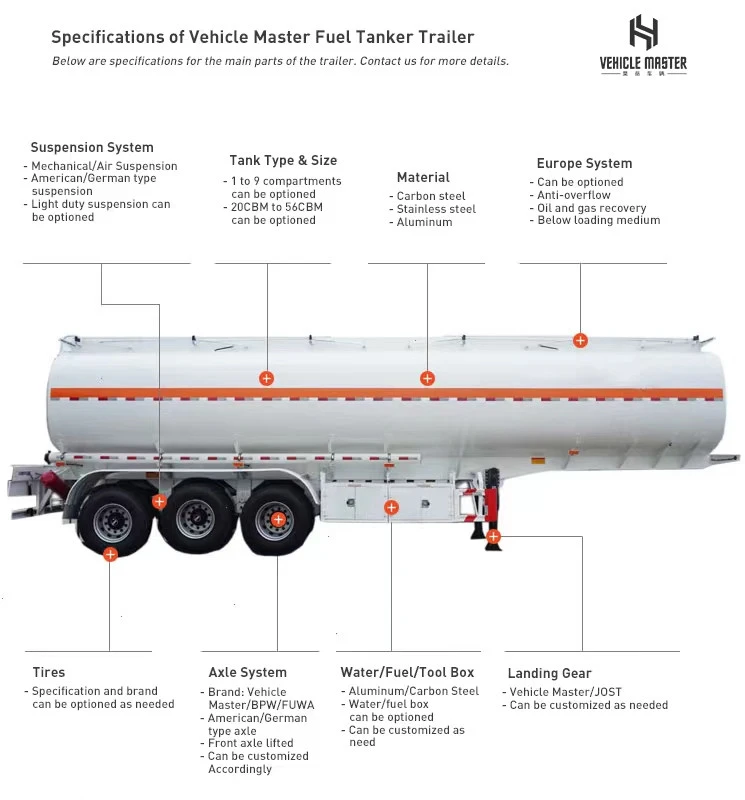

Liquid tanker component and specification diagram

The fuel tanker semi trailer is composed of a special vehicle chassis and a top-loading part. The top-loading part is composed of a tank body, a power take-off, a transmission shaft, a gear oil pump, a pipe network system and other components. The pipe network system consists of oil pump, three-way four-position ball valve, two-way ball valve, filter screen and pipeline.

The structure of the fuel tanker trailer is an elliptical cylindrical body or a trapezoidal surface cylindrical body, which is made of high-quality carbon steel plates. The entire tank body is divided into single or multiple compartments. The different compartments can be divided into chambers. There are through holes at the lower end of the middle partition plate. The middle of each compartment is welded with a sub-silo to strengthen the wave baffle plate to reduce the impact of the fuel or oil in the tank when the tanker is sucking fuel and improve the rigidity of the tank.

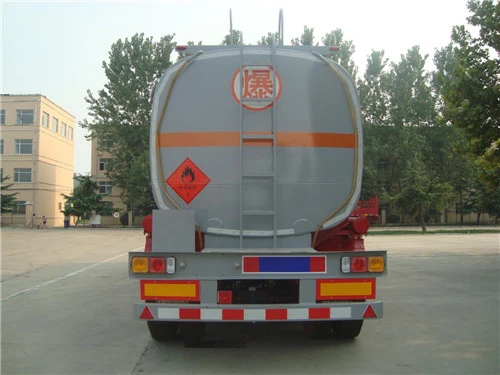

Rear view of a silver tanker with rear safety markings

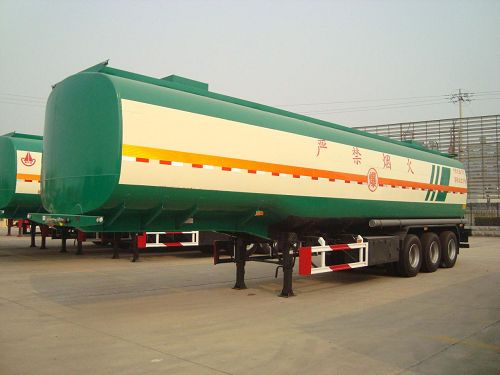

Front three-quarter view of a green and cream tanker trailer

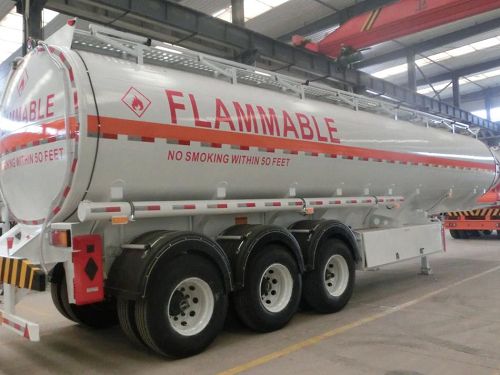

Silver tanker marked Flammable inside a workshop

Specification

Length	11,000mm
Width	2,500mm
Height	3,800mm

Configuration options to discuss

Fuel Tanker Semi Trailer options below are described at product-family level in the 2025 catalogue. They are not a list of equipment automatically included with this model.

Mechanical or air suspension
Tank material and compartment layout
Discharge valves, hoses and fittings appropriate to the agreed arrangement
Thermal configuration or lifted axle where specified

Can I choose more than one compartment?

The catalogue lists 1–9 compartments. Specify the cargo allocation and confirm the valve and discharge arrangement for your order.

For a quotation, include the cargo, dimensions, loaded weight, loading method, quantity and destination. Ask for the documents applicable to the agreed configuration.

Source: Vehicle Master Product Catalog 2025, PDF pages 25–27. Catalogue configurations are references; confirm the specification and documents for your selected order.
