3-Axle 20ft Skeleton Container Trailer
A 3 axle skeleton semi trailer is a type of trailer that is designed specifically for the transportation of shipping containers. It features a skeletal structure with no sides or roof, providing ample space to accommodate containers. The container is secured to the trailer using twist locks at the corners of the trailer. This trailer configuration is…

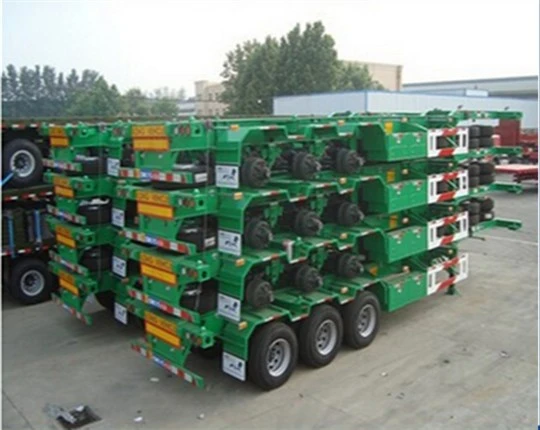

3 Axles Skeleton Semi Trailer
Introduction
A 3 axle skeleton semi trailer is a type of trailer that is designed specifically for the transportation of shipping containers. It features a skeletal structure with no sides or roof, providing ample space to accommodate containers. The container is secured to the trailer using twist locks at the corners of the trailer. This trailer configuration is equipped with three axles for increased support and weight distribution, allowing for larger and heavier shipping containers to be transported. Typically, these trailers have a length of 40 to 53 feet and carry up to 45,000 kg. Some models may have hydraulic lifting capabilities to facilitate the loading and unloading of containers. These trailers are commonly used in logistics and transportation companies for the efficient and safe transportation of shipping containers.

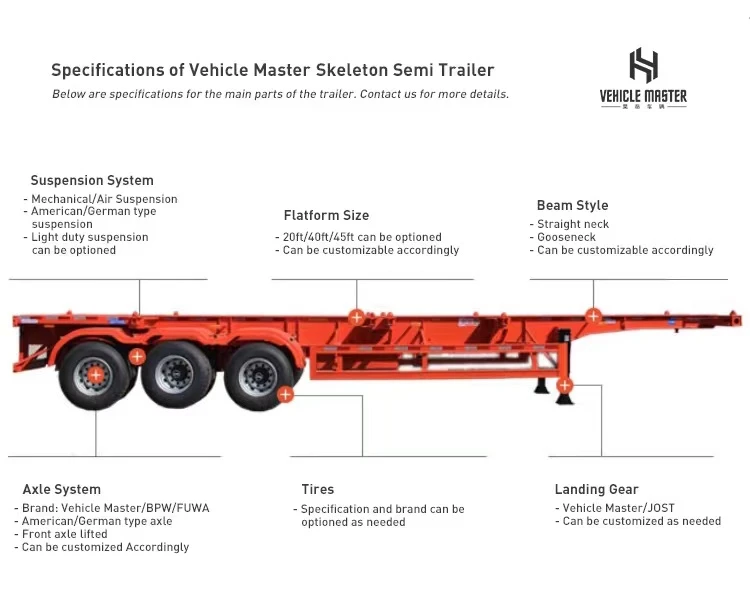

Parameter
| Feature | Parameter |
| Trailer Type | Skeleton Semi Trailer |
| Number of Axles | 3 |
| Number of Axle | BPW/FUWA axle, 13-ton capacity per axle |
| Chassis Material |
High-strength steel Q345B or Q700 |
| Kingpin | 2″ or 3.5″ bolted kingpin, interchangeable with JOST type |
| Landing Gear | JOST brand single-side operation or manual operation landing gear |
| Suspension | Mechanical suspension with leaf spring, or air suspension |
| Tire Type | 12R22.5 or 315/80R22.5 tubeless tires, 12 units |
| Rim Type | 9.00-22.5 or 9.75-22.5 steel wheel rims, 12 units |
| Brake System | Dual line air brake system, WABCO or Haldex brand, with ABS |
| Electrical System | 24V, LED lights |
| Tool Box | Equipped with a standard tool box |
| Spare Tire Carrier | Equipped with a spare tire carrier on the front of the trailer |
| Twist Locks | 12 sets of twist locks to secure containers of different sizes (1x20ft, 2x20ft, 1x40ft, or 1x45ft) |
| Landing Gear Control | Manual crank control or hydraulic control |
| Paint Type | Sandblasted and painted with anti-rust primer and topcoat paint, color as per customer’s request |
| Accessories | Side guard rails, rear bumper, mudguards, reflective tapes, etc. |
| Overall Length | Approximately 12,500 mm |
| Overall Width | Approximately 2,500 mm |
| Maximum Payload | Approximately 40,000 kg (depending on local regulations) |
| Certification | ISO9001, CCC, SGS, etc. |
Please note that the specifications mentioned above are for reference purposes only and can be customized based on the specific requirements of the customer.
If you wanna know more infos, please contact us.
Whatsapp/Tel:+86 191 0068 9141
Email:semitrailer@sdvehiclemaster.com
The skeleton semi trailer is a semi trailer whose frame is welded by longitudinal beams, cross beams and front and rear end beams. Its appearance is similar to that of the flat semi-trailer, except that the frame replaces the steel plate. From the top of the body, its bottom is exposed, so the goods it transports are generally special.
Generally, skeleton truck trailer can be used to transport containers, such as ships, ports, routes, highways, transfer stations, bridges, tunnels and other logistics systems, and can also be used to transport dangerous goods tanks. For skeleton semi-trailer, both containers and tank containers for dangerous goods belong to the category of goods, and only the vehicle skeleton belongs to the body structure.
The length limit of skeleton semi-trailer is 13.95 meters, the length limit of the van semi-trailer is 13.75 meters. The reason for this difference is that the maximum length of standard containers on the market is 45 feet, or 13.715 meters. In order to facilitate the transportation of these containers, the length limit of the skeleton truck trailer is correspondingly relaxed.
Advantages
1. Fast delivery after receiving down payment due to factory strength;
2. Salesman will update you the production with video and photos step by step until production completed;
3. Engineers are available to oversea after-sale service;
4. We will give your 1 year after-sale service for free including free quick-wear parts;
5. Factory inspection is warmly welcomed, you will have free food and accommodation;
6. Inspection before delivery is provided also.

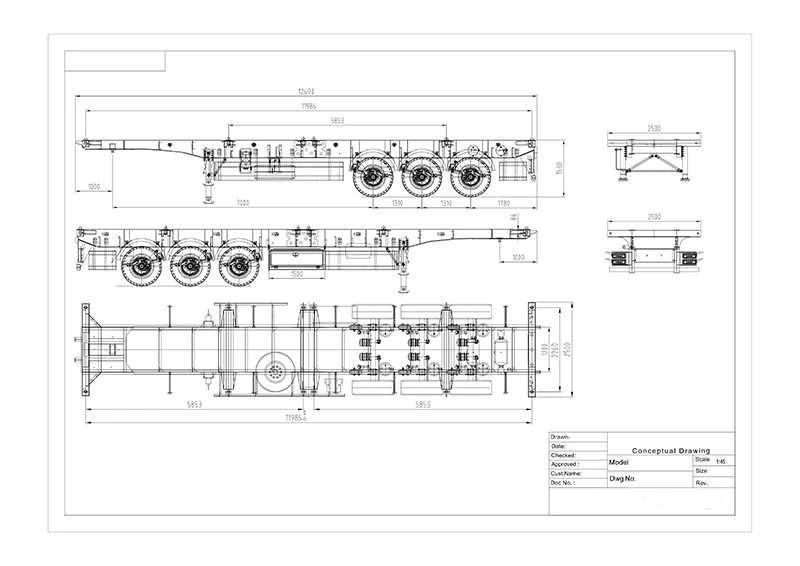

Design Drawing
you can contact us consult with engineering firms specializing in trailer design for professional assistance in obtaining design drawings.

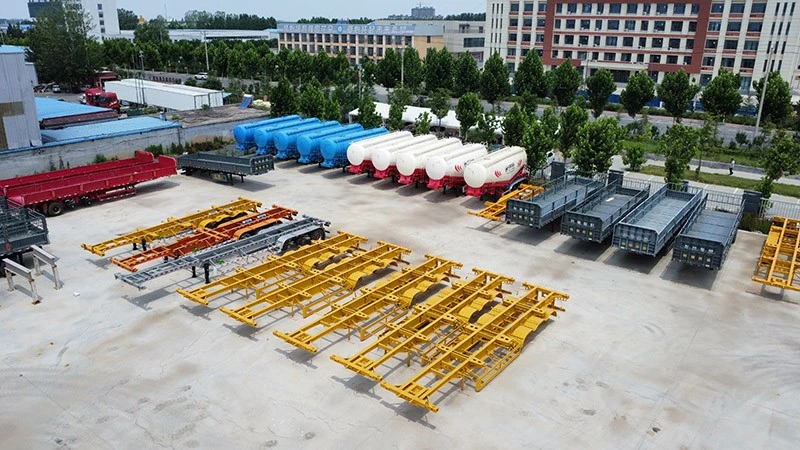

Company Profile
Vehicle Master is the trailer brand presented by Shandong Haoyue Vehicle Co., Ltd. in its 2025 product catalogue. The company profile describes OEM/ODM cooperation and customer relationships in more than 40 countries by 2025.
FAQ
Q1: Can I paint my logo on trailer?
A1: Of course, you can send me your company logo, then we will design it.
Q2. Do you test all your goods before delivery?
A2: Yes, we have 100% test before delivery
Q3. What is your terms of delivery?
A3: EXW, FOB, CFR, CIF, DDU…As for the payment terms,it depends on the total amount.
Q4. What is the average delivery time?
A4: Usually takes about 10-20 days . The specific delivery time depends on the items and the quantity of your order.
Q5. What is the Payment term?
A5: By T/T before shipment or By L/C at sight.
Q6. During shipping, if there is a damage to products, how do you get replacement?
A6:Firstly, we should investigate the reason cause the damage. At the same time, we will claim for the insurance by ourselves or assist the buyer. Secondly we will send the replacement to the buyer. The responsible person for above damage will take charge of the cost of the replacement.
Specification
| Feature | Parameter |
| Trailer Type | Skeleton Semi Trailer |
| Number of Axles | 3 |
| Number of Axle | BPW/FUWA axle, 13-ton capacity per axle |
| Chassis Material | High-strength steel Q345B or Q700 |
| Kingpin | 2" or 3.5" bolted kingpin, interchangeable with JOST type |
| Landing Gear | JOST brand single-side operation or manual operation landing gear |
| Suspension | Mechanical suspension with leaf spring, or air suspension |
| Tire Type | 12R22.5 or 315/80R22.5 tubeless tires, 12 units |
| Rim Type | 9.00-22.5 or 9.75-22.5 steel wheel rims, 12 units |
| Brake System | Dual line air brake system, WABCO or Haldex brand, with ABS |
| Electrical System | 24V, LED lights |
| Tool Box | Equipped with a standard tool box |
| Spare Tire Carrier | Equipped with a spare tire carrier on the front of the trailer |
| Twist Locks | 12 sets of twist locks to secure containers of different sizes (1x20ft, 2x20ft, 1x40ft, or 1x45ft) |
| Landing Gear Control | Manual crank control or hydraulic control |
| Paint Type | Sandblasted and painted with anti-rust primer and topcoat paint, color as per customer's request |
| Accessories | Side guard rails, rear bumper, mudguards, reflective tapes, etc. |
| Overall Length | Approximately 12,500 mm |
| Overall Width | Approximately 2,500 mm |
| Maximum Payload | Approximately 40,000 kg (depending on local regulations) |
| Certification | ISO9001, CCC, SGS, etc. |
| Whatsapp/Tel | +86 191 0068 9141 |
| semitrailer@sdvehiclemaster.com |
Request a Quotation
Send us your destination port and any special requirements. Our team reviews the configuration and prepares a quotation.
